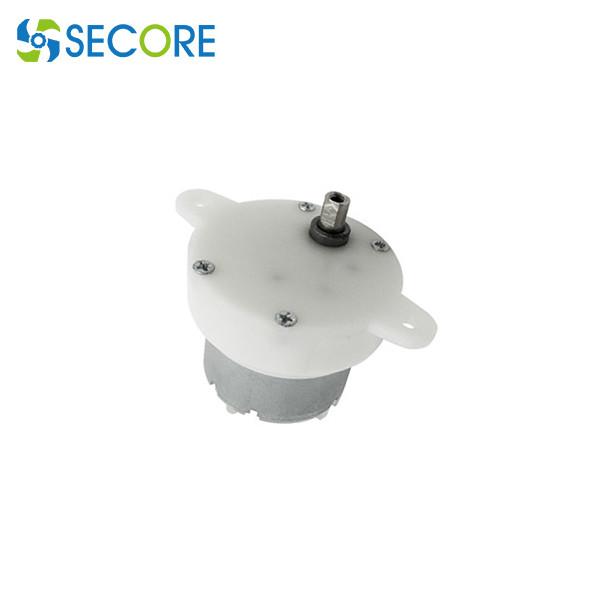

12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light
12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light
12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light
12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light
Specifications
Brand Name :
SECORE
Model Number :
SC-40
Certification :
CE ROHS
Place of Origin :
CN
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-12 working days
Packaging Details :
500pcs per carton or as request
Model number :
SC-40
Operating voltage :
12v
gear reducer diameter :
56.8mm
Motor dimension :
D37.3*L50mm
Commutation :
Carbon Brush
Speed RPM :
0.7-33rpm or customized
Shaft shape :
D shape or knurled or as request
Application :
stage lamp, lawn lamp, dc fan
Description

12V 33rpm Rotating Light Gear Motor, Small Dc Electric Reduce Motor For Stage Lamp

Main specification:

1. Shaft diameter: 2.0mm
2. Motor dimensions: diameter 37.3mm * 50mm length
3. Gearbox diameter: 50mm
4. Output Shaft length, Volt, Speed: can be customized
5. Application: stage lamp, lawn lamp, rotating light, electric dc rotating fan, mini fan

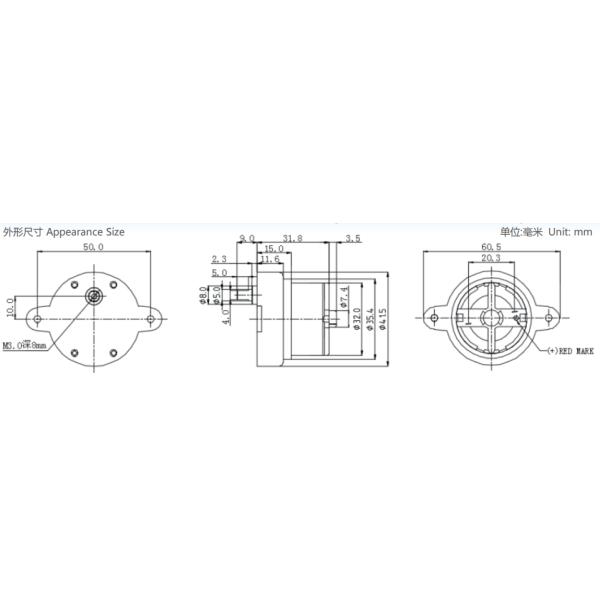

Mounting dimensions:

12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light

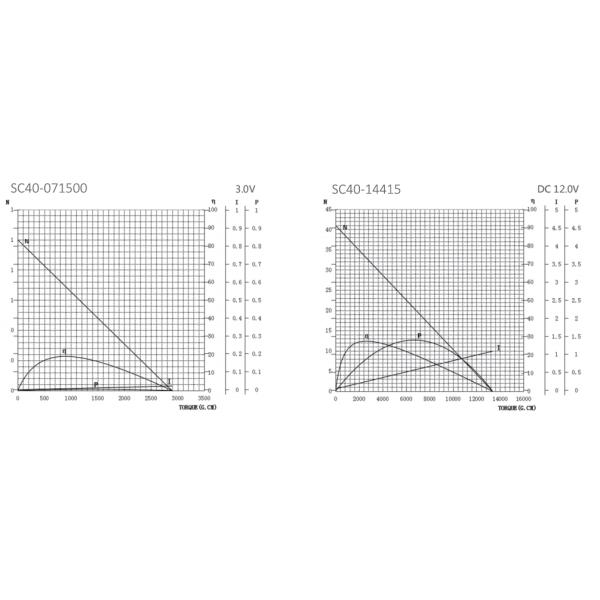

Motor performance ( Ｔ-N-I Curve):

12V 33rpm Brushed Permanent Magnet DC Motor ROHS For Stage Light
