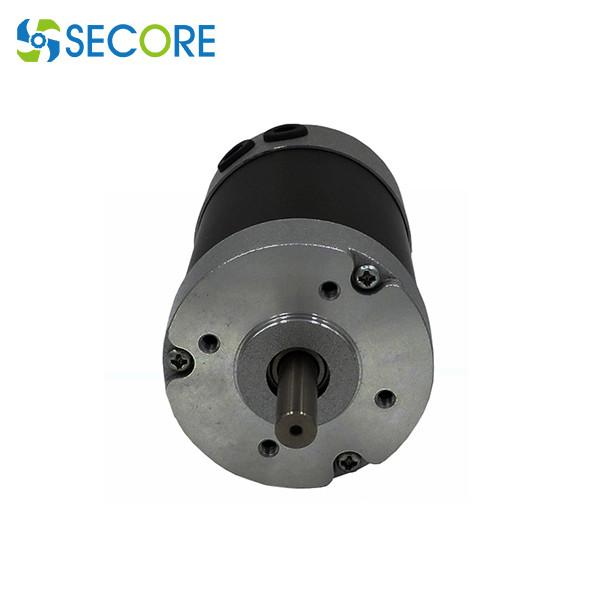

Pernanent Magnet 100W 150W Compact BLDC Motor Lower EMI High Speed
Pernanent Magnet 100W 150W Compact BLDC Motor Lower EMI High Speed
Pernanent Magnet 100W 150W Compact BLDC Motor Lower EMI High Speed
Pernanent Magnet 100W 150W Compact BLDC Motor Lower EMI High Speed
Specifications
Brand Name :
SECORE
Model Number :
BLS42-50W
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
1
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
7000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
1pc per carton or as request
MOQ :
1 PC
Rated Speed RPM :
3000 R/Min
Rated Torque :
0.48N.m
Commutation :
brushless
Rated Power :
150W, 30W 50W 75W 100W optional
Rated Voltage :
12V, 24V, 36V, 48V, 310V optional
Dimension :
57mm / 60mm diameter
Construction :
pernanent magnet
Product Type :
high speed brushless dc motor
Typical application :
carving machine, AGV
Description

30W 50W 75W 100W 150W Compact BLDC Motor, High Precision Control Brushless AGV Motor

Secore Motor specializes in the production and sales of various DC brush & brushless motors, provides one-to-one customer service, and accepts customization of motors with special parameters. Welcome to inquire.

Feature:

1. free maintenance
2. small compact size, light weight
3. low power consumption
4. high efficiency, high C/P, low heat losing
5. high speed and performance
6. lower EMI, lower emission
7. reversible direction, convenient speed adjustment
8. smart controlling

30W

Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 No-load
current A		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS57-30W-1230 12 30 3000 3.14 0.1 3300 <0.6A 0.29
BLS57-30W-2430 24 30 3000 1.57 0.1 3300 <0.4A 0.29
BLS57-30W-3630 36 30 3000 1.04 0.1 3300 <0.3A 0.29
BLS57-30W-31030 310 30 3000 0.13 0.1 3300 <0.2A 0.29

50W

Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 No-load
current A		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS57-50W-1230 12 50 3000 5.21 0.16 3300 <0.8A 0.48
BLS57-50W-2430 24 50 3000 2.6 0.16 3300 <0.4A 0.48
BLS57-50W-3630 36 50 3000 1.74 0.16 3300 <0.3A 0.48
BLS57-50W-31030 310 50 3000 0.2 0.16 3300 <0.2A

0.48

75W

Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 No-load
current A		 Peak Torque
N.m
电机型号 电压 ( V ) 功率 ( W ) 额定转速 ( rpm) 额定电流( A ) 额定转矩( N.m) 空载转速( rpm) 空载电流 ( A ) 最大转矩 (N.m)
BLS57-75W-1230 12 75 3000 7.81 0.24 3300 <1.0A 0.72
BLS57-75W-2430 24 75 3000 3.91 0.24 3300 <0.7A 0.72
BLS57-75W-3630 36 75 3000 2.6 0.24 3300 <0.5A 0.72
BLS57-75W-4830 48 75 3000 1.95 0.24 3300 <0.4A 0.72
BLS57-75W-31030 310 75 3000 0.3 0.24 3300 <0.3A 0.72

150W

Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 No-load
current A		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS57-150W-1230 12 150 3000 15.63 0.48 3300 <1.5A 1.43
BLS57-150W-2430 24 150 3000 7.81 0.48 3300 <1.0A 1.43
BLS57-150W-3630 36 150 3000 5.21 0.48 3300 <0.8A 1.43
BLS57-150W-4830 48 150 3000 3.91 0.48 3300 <0.6A 1.43
BLS57-150W-31030 310 150 3000 0.6 0.48 3300 <0.4A 1.43

Pernanent Magnet 100W 150W Compact BLDC Motor Lower EMI High Speed

TO BE TAILORED

* Expected voltage types

* Configurable shaft length and second shaft end

* Extended temperature range

* Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter

* Customization for high speed and or high load applications

* Customization for motors with increased electrical or mechanical tolerance requirement

Secore Technology is a professional manufacturer which makes BDC motor, BLDC motor with Gearbox, planetary gearhead, worm gearhead, helical gearbox, customize according to expectation.
