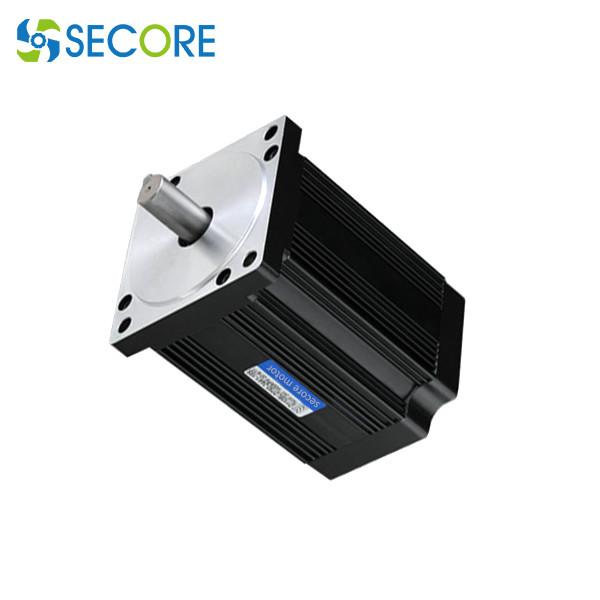

24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor
24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor
24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor
24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS110-600W
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
1
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
7200pcs per month
Delivery Time :
7-10 working days
Packaging Details :
1PC per carton or as request
MOQ :
1 Piece
Rated Speed RPM :
3000rpm
Rated Torque :
1.92 N.m
Commutation :
brushless
Rated Power :
600W, 1000W/1500W/2000W/3000W optional
Rated Voltage :
24V, 36V, 48V, 310V optional
Dimension :
110mm diameter * 128mm length
Construction :
pernanent magnet
Product Type :
600W brushless dc motor
Typical application :
Robot arm, sweeper, AGV, RGV
Description

24V 600W 110mm Square Frame Brushless DC Motor, Custom 48volt BLDC Motor For automatic gate

Feature:

a. high power ( 5W -7KW )
b. diameter 24mm to 180mm, round and square shape
c. Fast lead time with sufficient material stock
d. matching driver/controller with stable high performance
e. IP65 protection ranking can be reached
f. long lifetime more than 10K hours continuous running

SPECS / Continuous rating for 600W

Model number Voltage V Power W Rated speed
rpm		 Rated current
A		 Rated torque
N.m		 No-load
speed rpm		 No-load
current A		 Peak Torque
N.m
电机型号 电压 V 功率 W 额定转速 rpm 额定电流 A 额定转矩 N.m 空载转速 rpm 空载电流 A 最大转矩 N.m
BLS110-600W-2430 24 600 3000 31.26 1.92 4200 7.5 5.74
BLS110-600W-3630 36 600 3000 20.84 1.92 4200 5 5.74
BLS110-600W-4830 48 600 3000 15.64 1.92 4200 3.8 5.74
BLS110-600W-31030 310 600 3000 2.43 1.92 4200 0.6 5.74


Diagram of the 110mm 600W brushless dc motor

24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor

Instantaneous maximum torque: the maximum torque of the motor starting and the instantaneous impact load; when this torque is exceeded, it will cause the overcurrent protection of the driver and cause the shutdown;

Short-term operating area: when the motor rotates at different speeds, it can run at a short speed within this torque range. It will heat the motor if long time running, which may cause burn-in or driving the overheating protection, leading to shutdown;

Rated operating torque: the rated torque of the motor at different speeds, which can run for a long time under this torque;

Continuous operating area: at different speeds, the motor runs continuously in this corresponding interval;

Application

24V 600W 110mm Square Brushless DC Motor 3000rpm 48 Volt BLDC Motor
