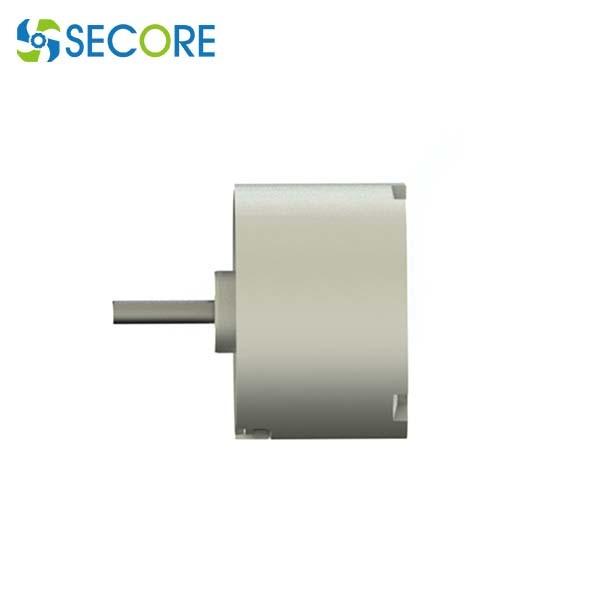

Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation
Specifications
Brand Name :
SECORE
Model Number :
BLS-2215I
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Free load Speed :
8000RPM or customized
Rated speed :
5000rpm or as request
Rated Torque :
50g.cm
Continuous current :
0.6A
Dimension :
Φ22*15（mm）
Construction :
Permanent magnet
Product name :
Φ22mm bldc motor, 8000rpm brushless dc motor
Typical application :
auto parts motor, water pump, wiper, etc
Description

Φ22mm Brushless Motor Manufacturer Mini Bldc Motor 5000rpm With Pwm Speed Regulation

Description Of Micro BLDC Motor

Micro BLDC Motor are highly commended by customers because of its easy operation, compact design, long using life, stable performance, low failure rate and high technical performances.

1. Voltage: DC 12V or as request
2. No load speed: 8000±10%rpm
3. No load current: 1.2A
4. Diameter 22mm, length 15mm, shaft dia 2.0mm
5. Weight: 25g Approx
6. Application:auto parts motor, water pump, wiper, Robot, Bike lock, Home Appliance, Door Lock etc

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 TORQUE
gf.cm		 CURRENT
A
BLS-2215I 12 8000 0.18 5000 50 0.6 133 1.2

Motor dimensions

Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation

Performance curve

Φ22mm Mini Bldc Brushless Motor 5000rpm With Pwm Speed Regulation

To be customized:

1. Expected voltage type

2. Configurable shaft length and second shaft end

3. Extended temperature range

4. Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccentrics

5. Customization for high-speed and/or high-load applications

6. Customize motors with higher electrical or mechanical tolerance requirements

Brushless DC ELectric Motor-Typical Application

Provide Solutions For Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments.
