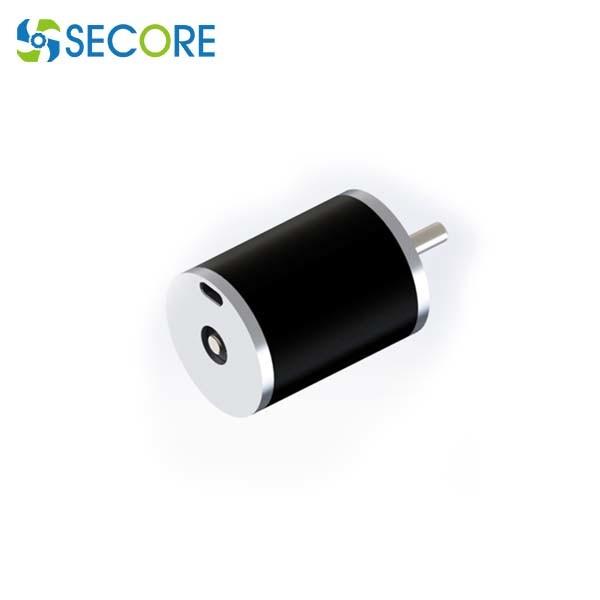

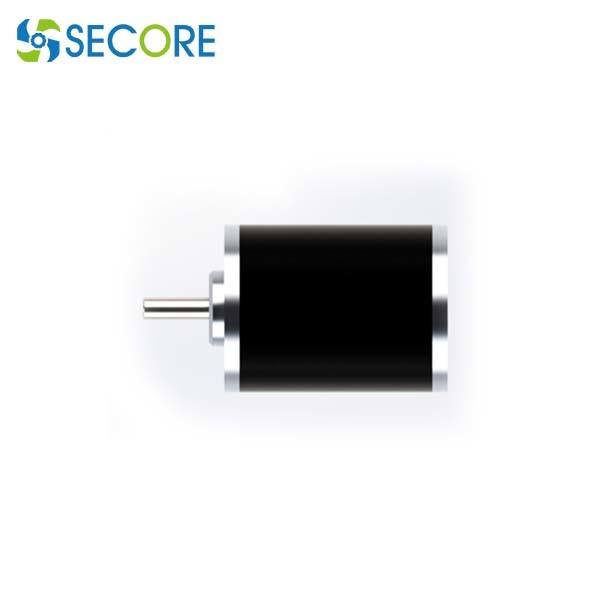

24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler
Specifications
Brand Name :
SECORE
Model Number :
BLS-2230I
Certification :
CE ROHS
Place of Origin :
Shenzhen
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Free load Speed :
8500RPM or customized
Rated speed :
6000rpm or as per request
Rated Torque :
80g.cm
Continuous current :
0.5A
Dimension :
Φ22*30（mm）
Construction :
Permanent magnet
Product name :
2230mm bldc motor, 6000rpm brushless dc motor
Typical application :
hair curler, auto parts motor, water pump, wiper, etc
Description

24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler

Description Of Micro BLDC inner Rotor Motor

Micro BLDC Motor are highly commended by customers because of its easy operation, compact design, long using life, stable performance, low failure rate and high technical performances.

1. Voltage: DC 24V or as request
2. No load speed: 8000-9000rpm
3. No load current: 1.2A
4. Motor size: Diameter 22mm, length 30mm, regular shaft dia 3.0mm
5. Weight: 32g Approx
6. Application:Hair curler, auto parts motor, water pump, wiper, Robot, Bike lock, Home Appliance, Door Lock etc

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 TORQUE
gf.cm		 CURRENT
A
BLS-2230I 24 8000 0.16 6000 80 0.5 300 1


Motor dimensions

24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler

Performance curve

24V 12V Customized Micro Bldc Inner Rotor Motor 2230 Brushless Motor For Hair Curler

To be customized:

1. Expected voltage type

2. Configurable shaft length and second shaft end

3. Extended temperature range

4. Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccentrics

5. Customization for high-speed and/or high-load applications

6. Customize motors with higher electrical or mechanical tolerance requirements

No Brushes = No Maintenance

The Brushless DC motors (BLDC motors) save time and cost by eliminating the need for brushes that often require replacement and/or maintenance.

Motor selection criterias for evaluation:

1. Size/Space: The available space for the motor.

2. Rated parameters: rated load, rated speed, rated current, rotation direction, etc.

3. Output requirements: load stability or change, speed stability or change, shaft and drive system (gearbox, propeller, etc.), start and stop conditions, clockwise or counterclockwise rotation.

4. Power supply: battery, AC power supply, PWM, etc.

5. Working environment: working temperature, humidity, rain/dust/sand/salinity, vibration (if installed on a moving vehicle), audible noise, electromagnetic interference, safety and other protection requirements.

6. Working conditions: continuous or cyclic, expected product life.
