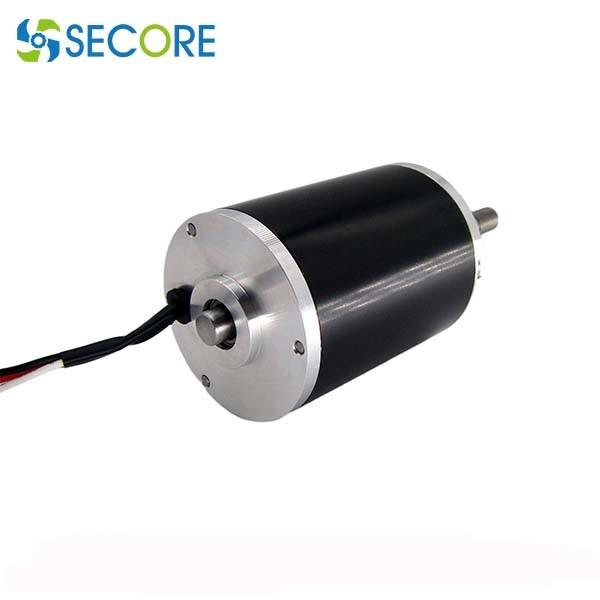

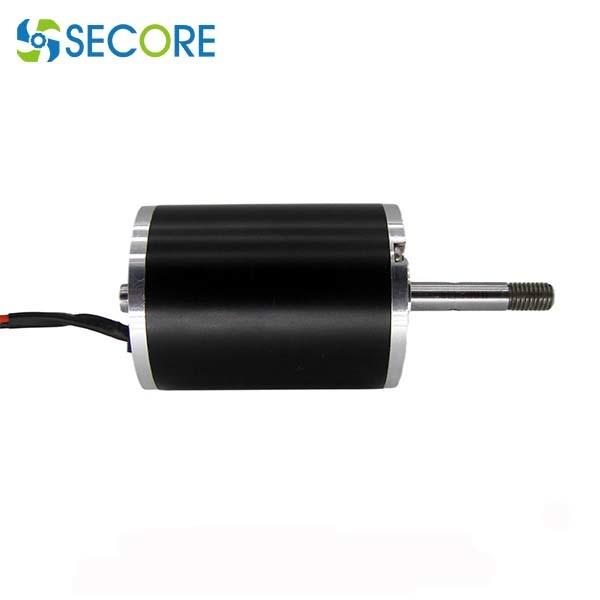

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS-5067I
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
8-10 working days
Packaging Details :
20pcs per carton or as request
Motor dimension :
∮50*L67（mm）
Speed rated :
4600 R/min
No load speed :
5600rpm
Rated Torque :
1050g.cm /1.05kg.cm
Rated current :
3.65A
Model number :
BLS-5067I
Commutation :
Ec commutating
Shaft OD :
8mm or customize
Type :
high rpm bldc motor, high torque brushless motor
Typical application :
fitness equipment, power tool, industrial usage
Description

Industrial Application Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor

Features of BLDC Motor BLS-5067:

  1. Diameter: 50mm
  2. Length: 67mm
  3. Shaft: 8mm or customization
  4. Customization: voltage,speed,torque, shaft, housing material, encoder, brake etc.


Motor Model BLS-5067I Unit
Nominal voltage 16.8 V
No load speed ±12% 5600 rpm
Max cont.torque 105 mN.m
Rated Speed 4600 rpm
Rated Current 3.65 A
Stall Torque 507.5 mN.m
Stall current 15.3 A


Dimension of the bldc motor:

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor

Performance curve:

Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor

Shaft customization cases:
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
Typical Application
Industrial Bldc Motor Power Tool 5067 Brushless Dc Motor 5600rpm EC Motor
