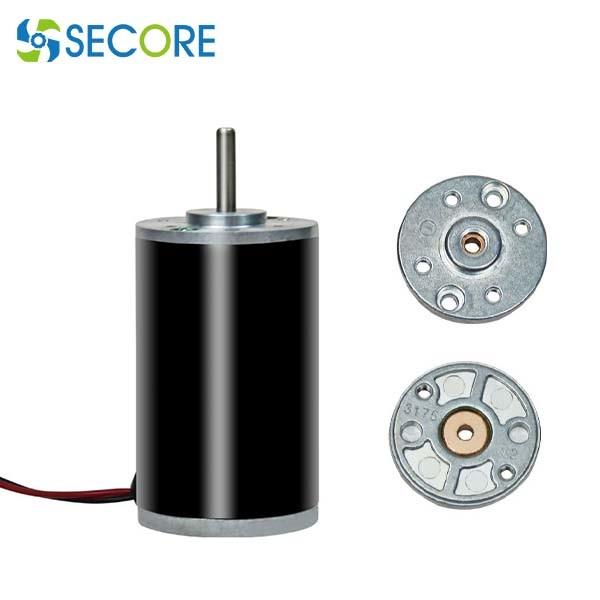

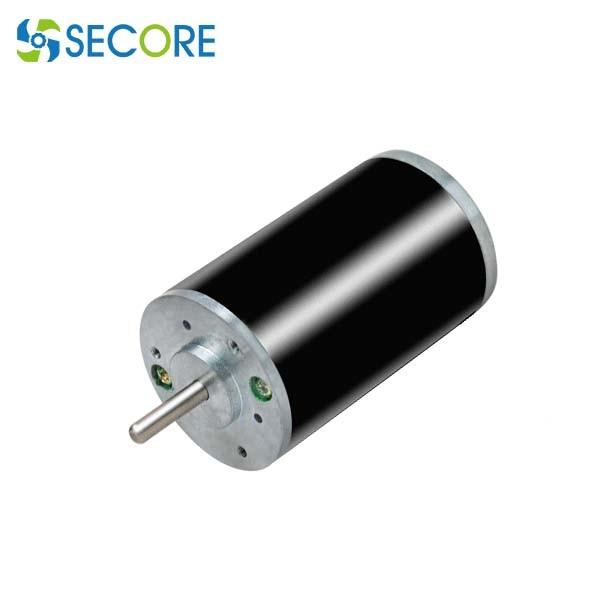

4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device
Specifications
Brand Name :
SECORE
Model Number :
DC4575
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
9-12 working days
Packaging Details :
500pcs per carton or as request
Product name :
45mm DC Carbon brush motor
Model number :
DC4575
Nominal voltage :
12V 24V
No load speed :
4200rpm
Rated speed :
3500rpm
Rated torque :
1.2kg.cm /0.12N.m
Output Power :
25W
Commutating :
carbon brush / machenical
Motor size :
45mm OD * 75mm Length
Application :
Medical device, robot
Description

4575 high power carbon brush motor 24V 7000rpm medical device 35W dc motor made by industrial raw material

Main specification cases:

Model Reference Number: DC4575
Voltage range: DC 12V, 24V
High Speed: 4200rpm to 8000rpm , or tailor-made
Features: High speed, high torque, steady running, low noise


DC brushed motor applies for medical device, robot, money counter, blender, shreeder, mixer, mincer etc.

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY AT MAXIMUM POWER STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 POWER
W		 TORQUE
gf.cm		 CURRENT
A
DC-4575 12 8000 0.3 7100 800 1.2 1400 800 45 1800 4.2
DC-4575 24 4200 0.2 3500 1200 0.7 3800 1200 35 2200 3.5

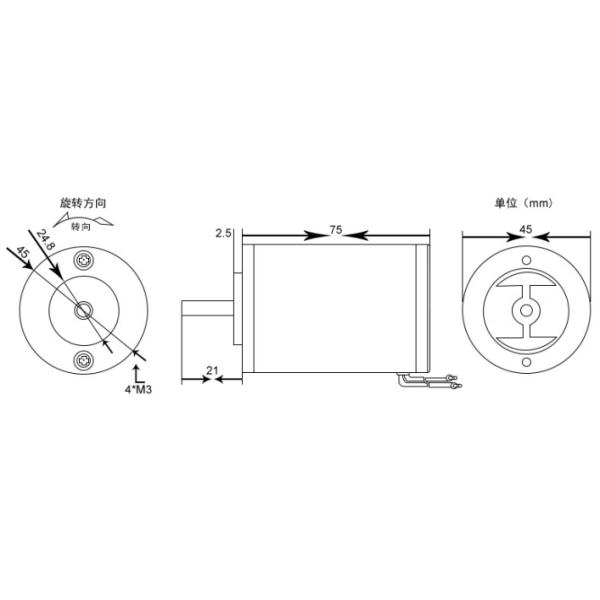

Motor dimensions

4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device

4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device

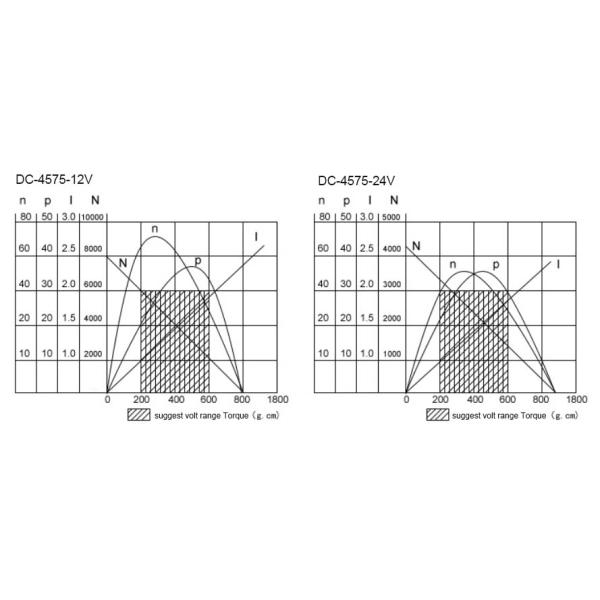

Performance curve

4575 High Power 35W Carbon Brush Motor 12V 24V 7000rpm For Medical Device

Determine the technical specifications and dimensions of the motor:


1. In order to determine the technical specifications, the power, torque and speed of the motor need to be determined.
2. In order to determine the size, you must know the size of the motor, how to install it (how to fix it in the system?).
3. When choosing the size and robustness of a motor, the industrial environment in which the motor operates must also be considered: each environment (explosion, humidity, corrosion, high and low temperatures, etc.) has a different design.
For harsh environments, a waterproof, dustproof and shockproof enclosure needs to be added to the motor.

What brush is used in the motor?

There are two kinds of brush that we normally use in motor: the metal brush and carbon brush. We choose based on speed, current, and lifetime requirements. For small motor, we only have metal brushes while for big ones we only have carbon brushes. Compared with metal brushes, the lifetime of carbon brushes are longer as it has less wear on the commutator.

Typical Application

water pump motor vacuum pump motor vacuum cleaner motor
fascia gun motor massager motor treadmill motor
surgical robot motor shredder motor blender motor
printer motor copier motor projector motor
sweeper motor roll curtain motor medical stirrer motor
