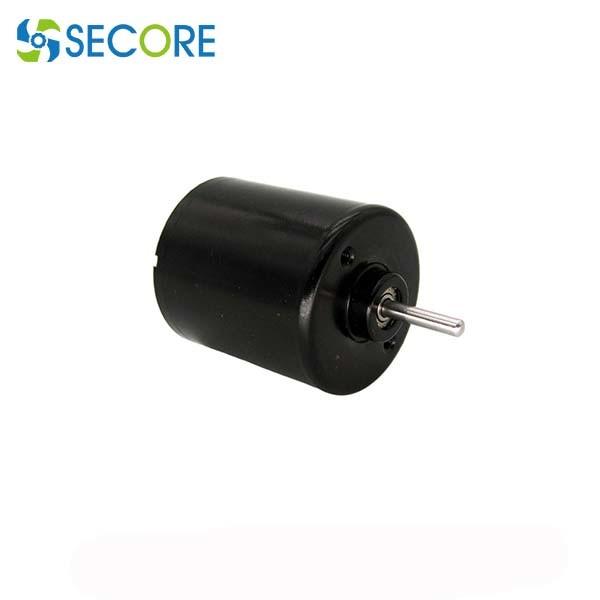

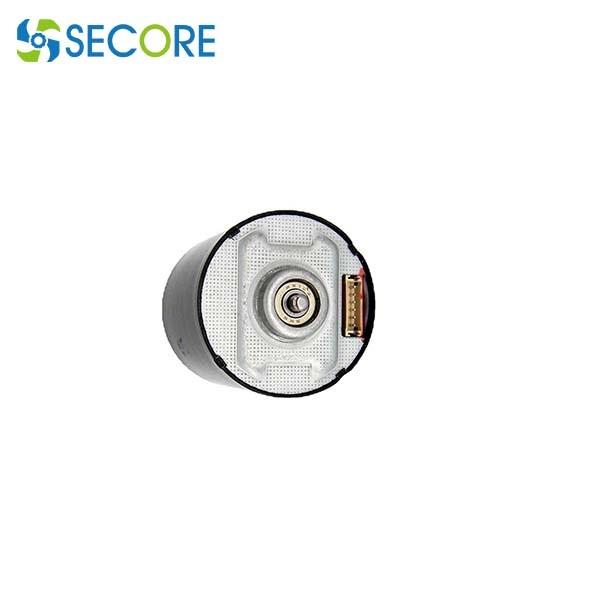

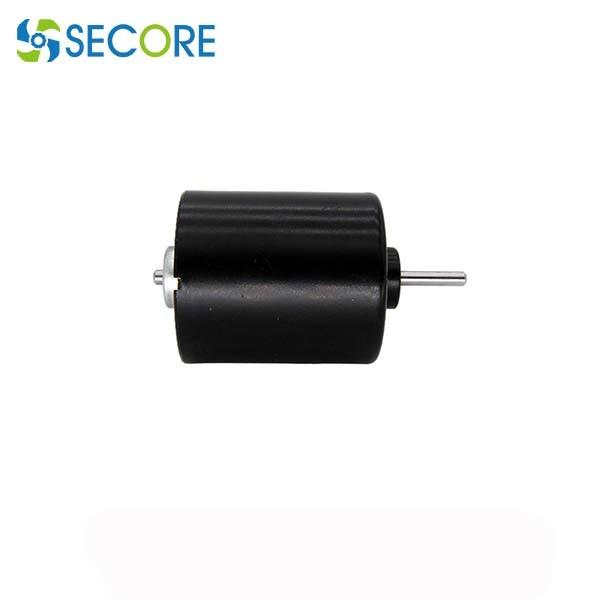

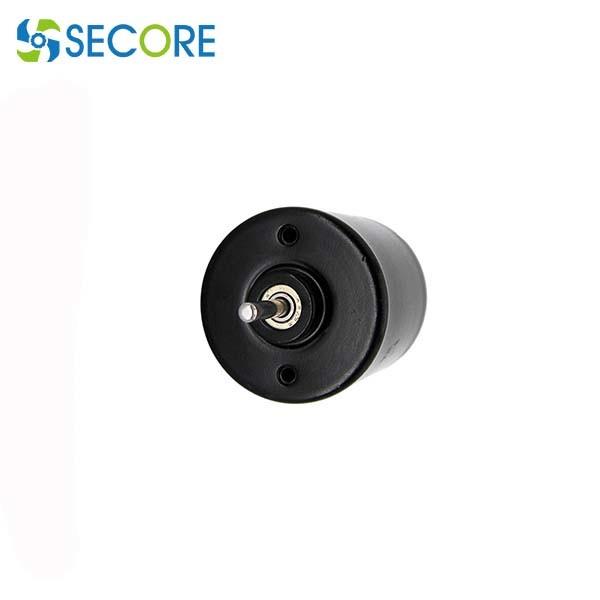

5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm
Specifications
Brand Name :
SECORE
Model Number :
BLS-3640
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
200
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
Motor size :
∮36*L40（mm）
Speed rated :
4800rpm
Rated Torque :
200g.cm or as request
Continuous current :
0.52A
Model number :
BLS-3640
Commutation :
brushless ( Electric commutating )
Type :
micro bldc motor, 12 volt brushless dc motor
Typical application :
office automation, robot
Construction :
pernanent magnet
shaft diameter :
3.175mm, 4mm or customize
Description

5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm

Brushless DC inner rotor Motor BLS-3640:

  1. Diameter: 36mm
  2. Length: 40mm
  3. Shaft: 3.175mm or customization
  4. Customization: voltage,speed,torque, shaft, housing material, encoder, brake etc.
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 TORQUE
gf.cm		 CURRENT
A
BLS-3640I 24 5500 0.08 4800 200 0.52 1400 2.89

Dimension of the brushless motor:

5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm

Performance curve:

5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm

Connection demo:

5500RPM High Speed Brushless Motor 3640 4800RPM 12V 24V Brushless Dc Motor 36mm

CAN BE TAILORED

  • Customized voltage, motor performance
  • Customized mounting, shaft shape and dimension, and lead configuration
  • EMI/RFI suppression circuit
  • Overload protection, thermal protection
  • High temperature and waterproof option
  • Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.

Brushed motor vs brushless DC motors

Brushless motors have the advantages of brushed motors and are superior to brushed ones. Main features: low noise, long life, stable operation, no sparks, high efficiency, high dynamic response, strong reliability, etc. The application of permanent magnet brushless DC motors is growing at a rate of around 15% per year. In this case, it is inevitable that brushless motors will gradually replace other motors.
