Specifications
Brand Name :
SECORE
Model Number :
BLS-4235
Certification :
CE ROHS
Place of Origin :
Guangdong
MOQ :
200
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
50pcs per carton or as request
Motor size :
∮42*L35（mm）
Speed rated :
3800rpm
Free load speed :
5200rpm
Rated Torque :
600g.cm or as request
Continuous current :
1.5A
Model number :
BLS-4235I
Commutation :
brushless ( Ec commutating )
Type :
micro bldc motor, 12 volt brushless dc motor
Typical application :
office automation, robot
shaft diameter :
3.175mm, 4mm or customize
Description

24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Wholesale Brushless Dc Motor 4235

Features of Brushless DC inner rotor Motor BLS-4235:

PWM speed adjust

FG output

Lock detect protection

Over current protection

Standby mode

Internal UVLO and thermal shutdown circuitry

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED
RPM		 CURRENT
A		 SPEED
RPM		 TORQUE
gf.cm		 CURRENT
A		 TORQUE
gf.cm		 CURRENT
A
BLS-4235I 24 5200 0.2 3800 600 1.5 1500 4.5

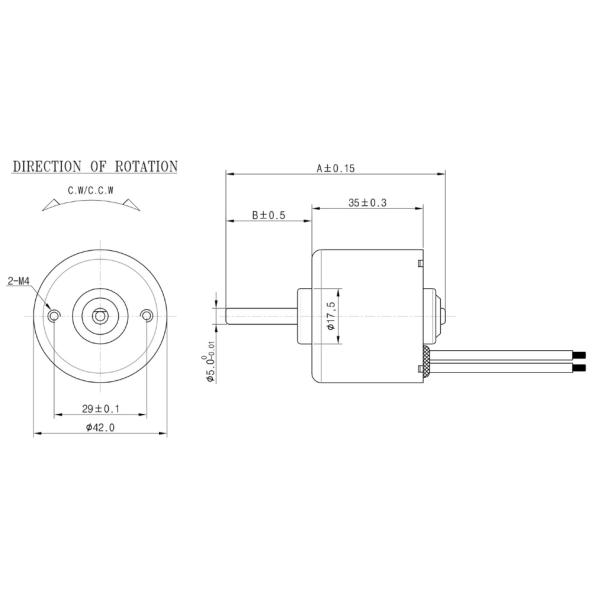

Dimension of the brushless motor:

24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Brushless Dc Motor 4235

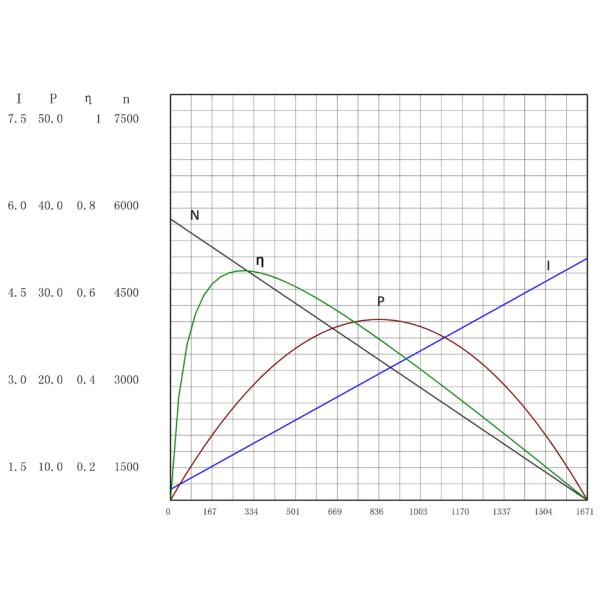

Performance curve:

24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Brushless Dc Motor 4235

Electric Pin Connection Terminations:

NO. SIGNAL I/O SPECIFICATIONS NOTE
1 GND IN Power Ground Power Ground
2 VCC IN DC 5-26V POWER +
3 1FG
Output Voltage Range OUT 0-6V Hall Signal Pulse Outputs
VOH 6.0V Max.
VOL 0.5V Max
FG Signal Current 2mA
Pulse Outputs of Rotation 3 Pulse/cycle
4 PWM
PWM Control, 60K MAX Typical (20K)
Input Voltage Range IN 0~5v High---motor OFF
Low---motor ON
Input High Voltage ≥2.0V.or open --HIGH
Input Low Voltage ≤0.5V --LOW
5 FR CW/CCW
CW/CCW Control
Input Voltage Range IN 0-5V High---motor default turn

Low---motor another turn
Input High Voltage ≥2.0V.or open --HIGH
Input Low Voltage ≤0.5V --LOW

Customization

1. Voltage, current, speed and torque.

2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension

3. Bearing: ball bearing, oil bearing

4. Materials of shell: plastic metal etc

6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc

Application
24V Valve Bldc Motor OD42mm 5000rpm 4800rpm Brushless Dc Motor 4235
