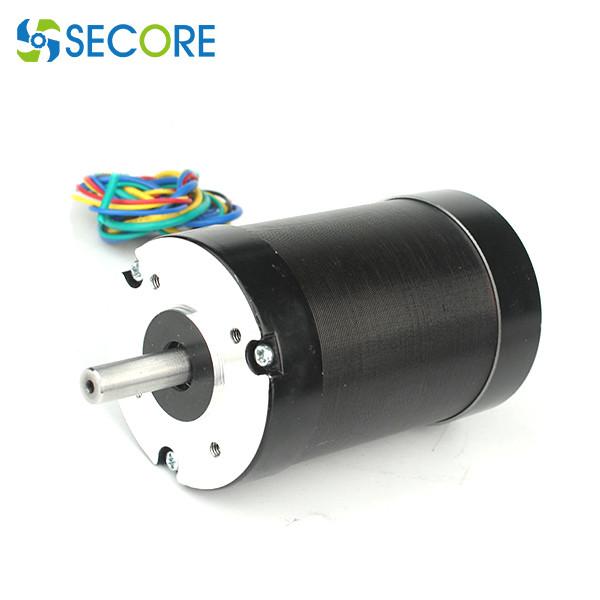

5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine
Specifications
Brand Name :
SECORE
Model Number :
SC-57S03
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
6000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
20PC per carton or as request
MOQ :
10PCS
Nominal Voltage :
24V 36V 48V
Rated Speed RPM :
4000RPM ±10%
Rated Torque :
0.73kg.cm
Output Power :
180W
Commutation :
EC
Motor size :
57*115mm
Construction :
pernanent magnet
Product Type :
round bldc motor 57mm, 180W brushless dc motor
Typical application :
fish feeding machine, Textile machinery, solar power system
Description

57mm diameter 180W bldc motor adjustable speed 3000-10000rpm with controller for feeding machine

SPECS / Continuous rating for 57mm 180w brushless motor

Customized brushless motor 24V, 36V, 48VDC

Electronic customization: Winding custom

Mechnical customization: Various shaft types include knurled, hobbing, shaft pin, threaded shaft, shaft hole, D-Shaft, Double D shaft, key slot etc.

Phase to phase resistance 0.45 OHMS
Free load speed 5200RPM ±10%
Free load current 0.7A Max
Nominal voltage 36VDC
Rated speed 4000RPM ±10%
Rated torque 0.43N.m
Output power 180W
Torque constant 0.063N.m/A
Back EMF constant 6.6V/kRPM
Insulation Class B


+5V red 24AWG
UL1007
HALL U blue
HALL V green
HALL W white
GND black
PHASE U yellow 20AWG
UL1007
PHASE V red
PHASE W black


5mm 180W Bldc Electric Motor Adjustable Speed For Feeding Machine

The brushless DC motor is composed of a motor body and a driver, and is a typical mechatronic product. Brushless motor refers to the motor without brush and commutator (or slip ring), also known as commutator-less motor.
Brushless motor main features and advantages:
1. A comprehensive replacement of DC motor speed control, a comprehensive replacement of frequency converter + variable frequency motor speed control, a comprehensive replacement of asynchronous motor + reducer speed control;
2. It has all the advantages of the traditional DC motor, and at the same time removes the carbon brush and slip ring structure;
3. It can run at low speed and high power, and it can save the speed reducer to directly drive a large load;
4. Small size, light weight, and large output;
5. Excellent torque characteristics, good medium and low speed torque performance, large starting torque and small starting current;
6. Stepless speed regulation, wide speed regulation range, strong overload capacity;
7. Soft start and stop, good braking characteristics, can save the original mechanical braking or electromagnetic braking device;
8. High efficiency, the motor itself has no excitation loss and carbon brush loss, eliminating multi-stage deceleration consumption, and the comprehensive power saving rate can reach 20%~60%. Only the power saving item can offset the purchase cost in one year;
9. High reliability, good stability, strong adaptability, simple repair and maintenance;
10. Resistance to turbulence and vibration, low noise, low vibration, smooth operation and long life;
11. No radio interference, no sparks, especially suitable for explosive places, with explosion-proof type;
12. Trapezoidal wave magnetic field motor and sine wave magnetic field motor can be selected as required.
