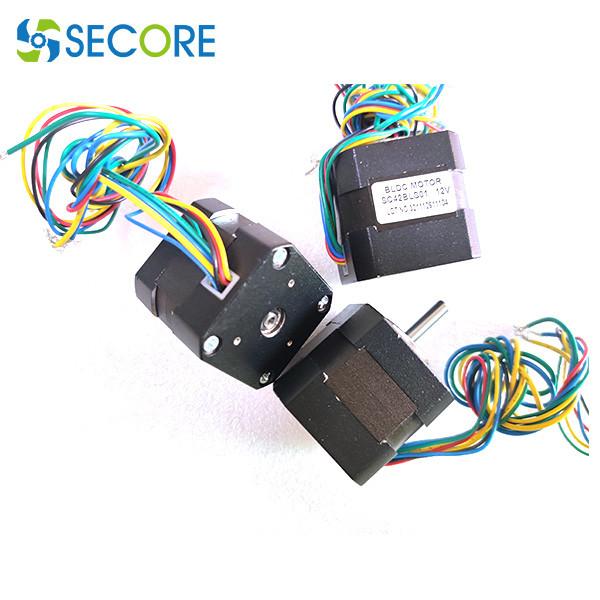

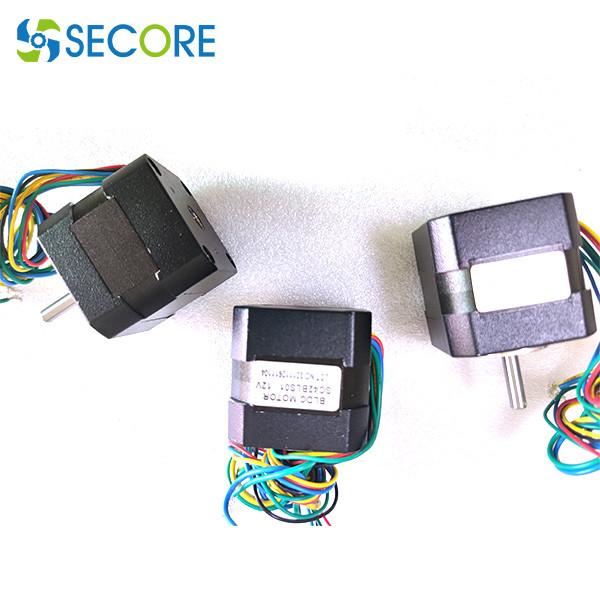

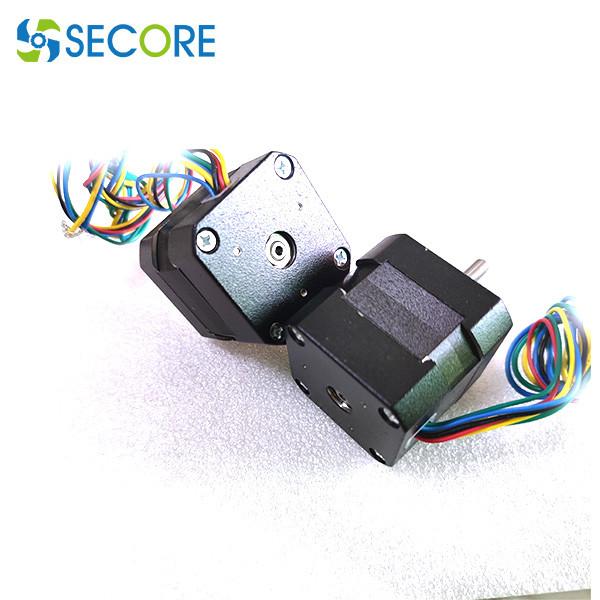

Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square
Specifications
Brand Name :
SECORE
Model Number :
SC42S01
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
6000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
20PC per carton or as request
MOQ :
10PCS
Rated Speed RPM :
4000 r/m
Rated Torque :
0.0625 N.m
Commutation :
electric commutating
Rated Power :
26W
Rated Voltage :
12V
Dimension :
42*42*41mm
Construction :
pernanent magnet
Product Type :
42mm square brushless motor, 4000rpm BLDC Motor
Typical application :
cd player, record player, auto parts, smart home
Description

8 Poles 42mm Square Brushless Dc Motor With High Efficiency For Record Player

Refer the parameters / Continuous rating for 42mm square frame 26W brushless motor

Model number SC42BLS01
Poles 8
Phase to phase resistance 1.81 OHMS
Free load speed 5450RPM ±12%
Free load current 0.312A Max
Nominal voltage 12 VDC / or custom
Rated speed 4020RPM ±12%
Rated torque 0.0631N.m / 0.64kg.cm
Output power 26.4W
Torque constant 0.046 N.m/A
Back EMF constant 4.27V/kRPM
Insulation Class B grade

Item Specification
Winding type Delta
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 28N@20mm form the flange
Max.axial force 10N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MQMin, 500VDC

Outline dimensions:

Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square

Connection diagram:

Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square

Electric Commutating Brushless Dc Motor 26W 8 Poles 42mm Square

Features of square brushless motor:

A square brushless motor is a type of brushless DC (BLDC) motor that has a square or rectangular shape. It is similar to other BLDC motors in that it uses a permanent magnet rotor and a stator with windings to produce rational motion. However, the square shape of the motor allows for efficient use of space and can provide higher torque and power density compared to other motor shapes.
