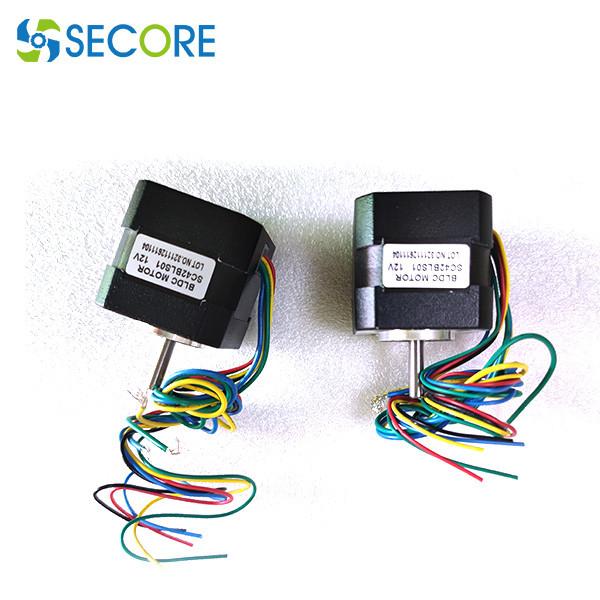

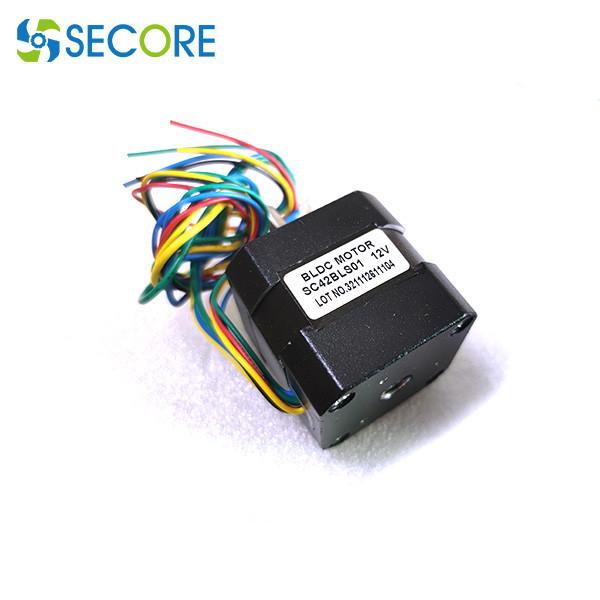

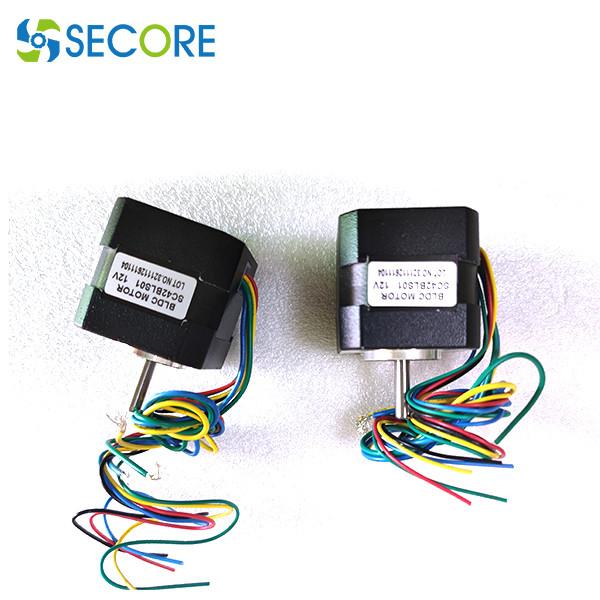

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
Specifications
Brand Name :
SECORE
Model Number :
SC-42S01
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
6000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
20PC per carton or as request
MOQ :
100PCS
Nominal Voltage :
12V
Rated Speed RPM :
4000RPM ±10%
Rated Torque :
0.625kg.cm
Output Power :
26W
Commutation :
EC
Motor size :
42*42*41mm
Construction :
pernanent magnet
Product Type :
square bldc motor 42mm, brushless dc motor 12V
Typical application :
cd player, record player, auto parts, smart home
Description

4000rpm 12V 24V Square/Round Bldc Motor With 120 Degree Electrical Angle For Record Player

SPECS / Continuous rating for 41mm frame 26W brushless motor


Model No unit Model
SC42BLS01 SC42BLS02 SC42BLS03 SC42BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed R/M 4000
Rated Torque N.m 0.0625 0.125 0.185 0.25
Rated Current A 1.8 3.3 4.8 6.3
Rated Power W 26 52.5 77.5 105
Peak Torque N.m 0.19 0.38 0.56 0.75
Peak Current A 5.4 10.6 15.5 20
Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
Torque Constant N.m/A 0.039 0.04 0.041 0.041
Rotor Inertia g.cm² 24 48 72 96
Body Length mm 41 61 81 100
Weight Kg 0.3 0.45 0.65 0.8
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70*C
Operating Temperature -15 〜+50*C
Working Humidity ＜=85% RH
Working Environment No direct sunlight, non corrosive gas^flammable gas, oil mist, no dust

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle

4000rpm Square Bldc Motor Permanent Magnet 12V 24V 26W With 120 Degree Angle
