LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
Specifications
Brand Name :
SECORE
Model Number :
BL1627-GB
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Nominated Voltage :
5V
Output torque :
660mN.m
free load Speed :
375rpm
Rated current :
50mA
motor dimension :
16*27mm
gearhead size :
16*41mm
product name :
16mm planetary gear motor, 5G antenna reduce motor
Usage :
smart home, intelligent robot， 5G antenna station
Description

Manufacturer Customized 5G Antenna Gear Reducer 16mm Planetary Gear Reducer Motor

Model Number: SC1627-GB

Loaded torque: 130~8554g.cm
Rated current: 180~200mA
Rated speed: 280~4.5r/min
Rotation direction: Bi-directional ( CW/CCW )
Customized: available
Nominal value no-load current no-load speed rated Speed rated torque rated current
Voltage mA RPM RPM g.cm mA
5 50 375 281 130 180
5 50 250 187 195 180
5 50 167 125 291 180
5 55 94 70 467 190
5 55 63 46 700 190
5 55 41 31 1052 190
5 55 27 20 1576 190
5 60 23 17 1689 200
5 60 15 11 2534 200
5 60 10 7.8 3802 200
5 60 7 5.2 5702 200
5 60 4.5 3.5 8554 200
Dimension
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
1. High-quality raw materials

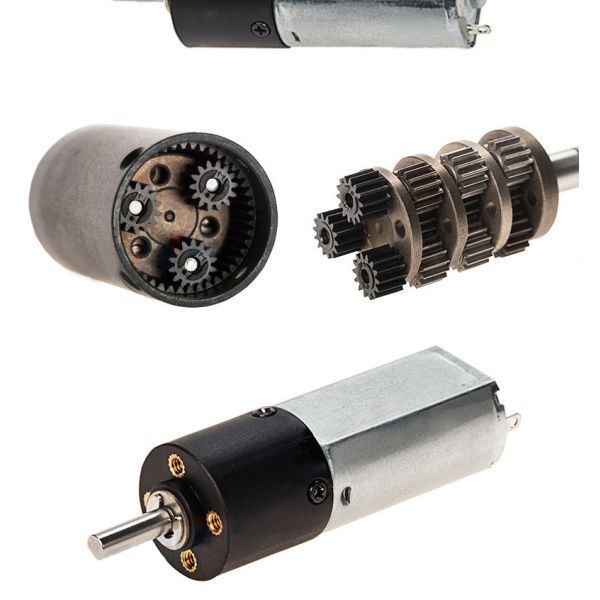

The gearbox housing adopts superior PA66/powder metallurgy materials, the gear adopts special LCP material, which is durable.
Low noise, injection molding, low friction
Advance equipment, low cost
Professional R&D team and technicians
POM material for gears
durable and stable
fast delivery cycle
2. Precision Machining
Using German CNC equipment for precision processing, using different processes and special processing methods according to customer requirements, helping customers save 50% of their time.
It has adjustable reduction ratio, corresponding power can be selected according to customer requirements.
3. Safety and Environmental protection
The injection molding process no need material dilution, environmentally friendly, harmless and non-toxic to the human, excellent appearance quality, and high adhesion and mechanical strength.
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
LCP 200mA Planetary Gear Reducer Motor 5G Antenna Gear Reducer Motor
