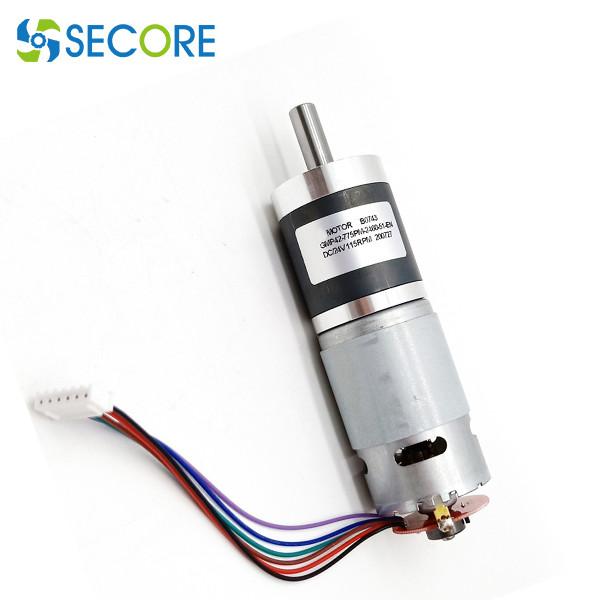

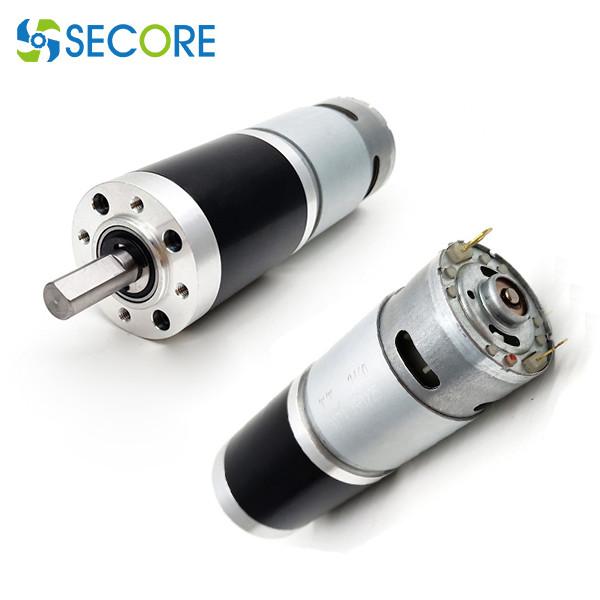

45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
Specifications
Brand Name :
SECORE
Model Number :
SC45G-775
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
12V
Rated torque :
5N.m or as request
Rated Speed :
35rpm
Peak torque :
21N.m
motor size :
44.5*67mm
gearbox diameter :
45*mm, with optional length
product name :
45mm brush gear motor, 50KG planetary geared motor
Usage :
automatic lifting door, robot, dental devices
Description

45mm 50kg Torque Planetary Gear Brush Motor 30W For Automatic Lifting Door


Technical parameter:


Rated voltage: 12V no-load speed: 44rpm, gear ratio: 100, stall torque: 216kg.cm
Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED CURRENT TORQUE Output TORQUE CURRENT
VDC ±10% r/min A ±10% r/min A g.cm W g.cm A
SC-775-24 24 6000 0.3 4500 2.3 900 40 3600 7.2
SC-775-6 6 4800 1.2 3500 8.7 900 33 3600 32
SC-775-12 12 4600 0.6 3460 4.4 900 32 3600 16
gear ratio 4 19 51 100 139 189 264 369 516 720
gear reducer length 51.5 51.5 64.5 64.5 64.5 74.5 74.5 74.5 74.5 74.5
No load speed (rpm) 1100 220 86 44 32 24 17 12 8.7 6.3
rated output speed (rpm ) 870 185 69 35 25 19 14 10.5 8.2 5.7
rated output torque (kg.cm) 2.8 13 26 51 71 89 100 100 100 100
Peak torque (kg.cm) 11 54 110 216 300 300 300 300 300 300
Dimension:
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door

Que: To customize the motor, what information should be provided?
Ans: You need to offer the basic specification of the motor like expected sizes, rated voltage, speed, torque.

Que: What’s your main motors?
Ans: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.

o Brushed Motor

o Brushless Motor (BLDC motor)

Coreless brush & Coreless Brushless

o Planetary Gear motors

o Spur Gear motors

o Worm Gear Motor

Que: What’s the main application of the micro dc motor?
Ans: Our DC motors are widely applied in precision instrument,financial equipment, medical devices, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device, personal care, power tool, smart household appliances, kitchen appliances, auto parts, RC Drone, industry apparatus, consumer electronics, kids toys,electric water valves, robots, Fascia Massague Gun etc.

45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
Application
45mm 50kg Torque Planetary Gear Brush Motor BLDC 30W For Automatic Lifting Door
