27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve
Specifications
Brand Name :
SECORE
Model Number :
SC300-4124
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
500pcs per carton or as request
No-load Speed :
27RPM or customized
Rated voltage :
6V
Rated Torque :
2KG.CM

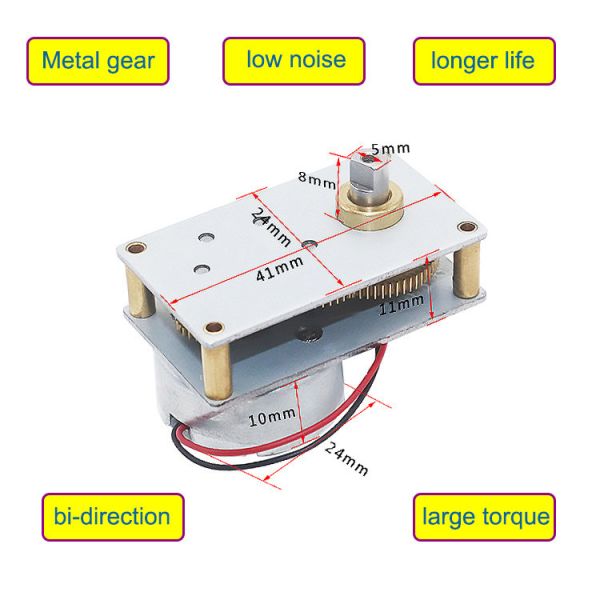

spur gear head size :
41*24mm
motor dimension :
10.5*24mm
motor type :
brush spur gear motor
product nam20rpm gear motor, 60rpm bldc worm gear motore :
valve gear motor, spur gear motor for valve
Typical application :
gas valve, vending machine, water meter
Description

Micro Dc Valve Gear Motor, 6V Tiny Metal Gear Motor For Gas Valve

Secore Motor provides customized service, below technical parameters cases for reference:

VOLTAGE
RANGE		 NOMINATED VOLTAGE GEAR RATIO no-load Speed no-load current rated current rated Speed rated torque output power stall current stall Torque
RPM mA mA RPM kg.cm W A kg.cm
3-12 6v 1:100 27 160 280 21 2 1.1 1 9



Motor mounting sizes and shafts options:

27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve

27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve27RPM DC Worm Gear Motor 6V Tiny Metal Gear Motor For Gas Valve

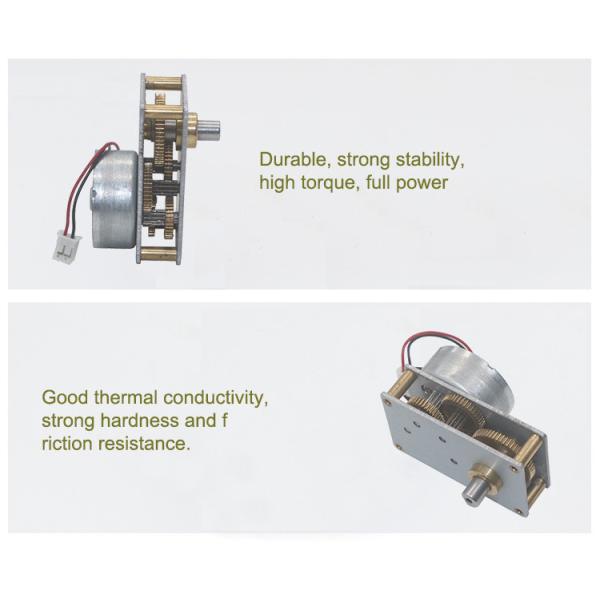

It adopts high quality material, anti-rusty, not easy to corrode. Durable, strong stability with high torque, full power. Its good thermal conductivity, strong hardness and friction resistance, makes its life longer.

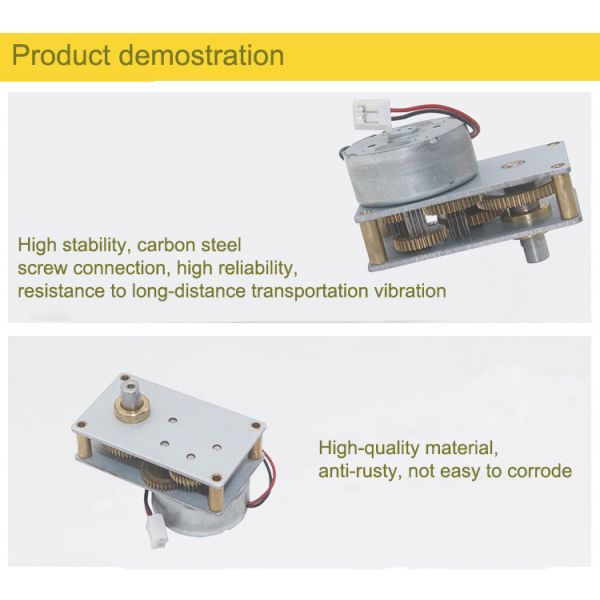

High stability, carbon steel, screw connection, high reliability, resistance to long-distance transportation vibration.

Que: To customize the motor, what information should be provided?
Ans: You need to offer the specification of the motor like expected sizes, rated voltage, speed, torque, shafts. It'll be great if the drawing is available.

Que: What’s your main motors?
Ans: Various diameter options for DC Micro Brush Motor, brushless and Gear Motor. Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.

o Brushed Motor

o Brushless Motor (BLDC motor)

Coreless brush & Coreless Brushless

o Planetary Gear Motors

o Spur Gear Motors

o Worm Gear Motor

Que: What’s the main application of the micro dc motor?
Ans: Our DC motors are widely applied in precision instrument,financial equipment, medical devices, audio and visual equipment, industrial automation and secure, banking and vending system, home and office automation, automatic door system, medical device, personal care, power tool, smart household appliances, kitchen appliances, auto parts, RC Drone, industry apparatus, consumer electronics, kids toys,electric water valves, robots, Fascia Massague Gun etc.
