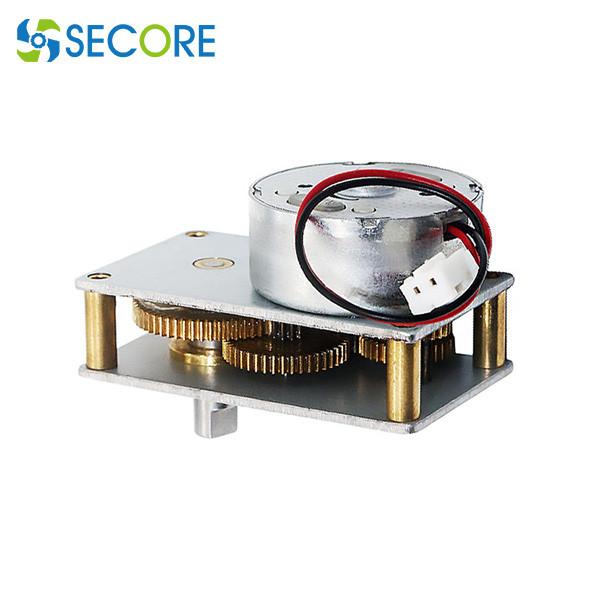

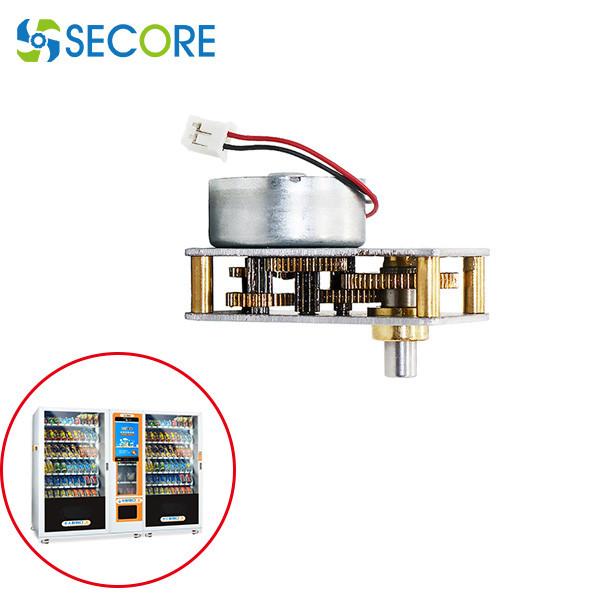

Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
Specifications
Brand Name :
SECORE
Model Number :
SC300-4124
Certification :
ROHS
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
15-20 working days
Packaging Details :
500pcs per carton or as request
Rated Speed :
21r/min
Rated voltage :
6V
stall Torque :
9kg.cm
gearbox size :
24*41mm
motor size :
10*24mm
motor type :
permanent magnet spur geared motor
product nam20rpm gear motor, 60rpm bldc worm gear motore :
valve gear motor, spur gear motor for valve
Typical application :
gas valve, vending machine, Temperature control valve motor
Description

6V Mini Gear Motor, Temperature Control Valve Spur Gearhead Motor

Secore Motor provides customized service, below technical parameters cases for reference:

VOLTAGE
RANGE		 NOMINATED VOLTAGE GEAR RATIO no-load Speed no-load current rated current rated Speed rated torque output power stall current stall Torque
RPM mA mA RPM kg.cm W A kg.cm
3-12 6v 1:100 29 161 281 20 2 1.2 1 9



Motor mounting sizes and shafts options:

Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor

This Valve gear motor adopts all metal materials, anti-rust, wear-resistant, and long service time.

D-cut shaft with screw holes, is more convenient with firmly installation.

The red wire is connected to the positive pole, and the black one is connected to the negative pole. The direction is clockwise CW.

The red wire is connected to the negative pole, and the black one is connected to the positive pole. The direction is counterclockwise CCW.

Vending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead MotorVending Machine 21r/ Min Mini Gear Motor Temp Control Valve Spur Gearhead Motor
