Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
Specifications
Brand Name :
SECORE
Model Number :
SC-CLb2864-GB
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
24V or as request
Rated Power :
4.3W
Rated torque :
1.29mN.m or as request
Free load Speed :
11000rpm
Rated current :
0.07A or as request
Sizes ( diameter * length ) :
16*26mm motor
product name :
1625 coreless gear motor, lock planetary gear motor
Usage :
lock, Power tool, robot, high precision machine, tattoo pen
Description

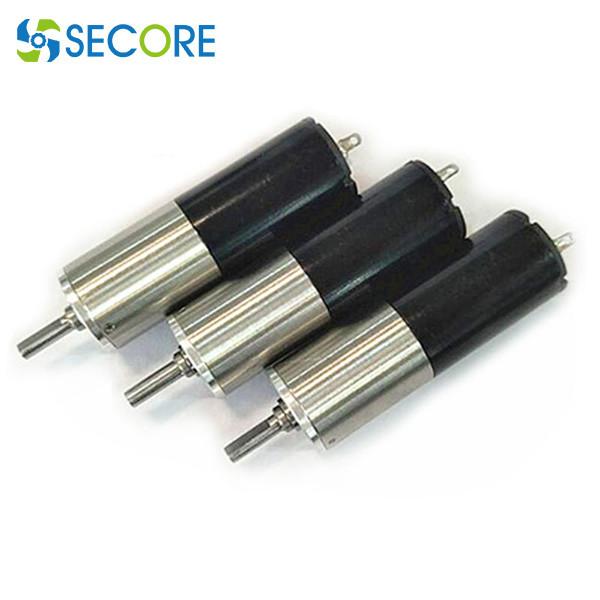

16mm Coreless Brush Motor, Dentist Device Planetary Coreless Gear Motor
Technical parameter:


Rated voltage: 24V, no-load speed: 11000rpm, no-load current: 6mA, stall current: 0.74A, stall torque: 15.3mNm
Motor model no. CL1625-1 CL1625-2 CL1625-3 CL1625-4
At Nomimal
Rated voltage V/DC 3.7 6 12 24
Rated speed RPM 6800 7840 8640 8800
Rated current A 0.67 0.5 0.27 0.15
Rated Torque mNm 2.5 2.8 2.7 3
Free Load
Free load speed RPM 8500 9800 10800 11000
Free load current A 0.05 0.02 0.015 0.006
At Max Efficiency
Max efficiency % 76 83 79 83
Speed RPM 7566 8968 9775 10066
Current A 0.39 0.22 0.14 0.07
Torque mNm 1.39 1.19 1.28 1.29
At Max output power
Max output power W 2.82 3.59 3.81 4.37
Speed RPM 4250 4900 5400 5500
Current A 1.6 1.23 0.66 0.37
Torque mNm 6.34 6.99 6.74 7.58
At stall
current A 3.15 2.43 1.3 0.74
torque mNm 12.7 14.1 13.6 15.3
Dimension:
Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
Product type:Brush dc motor, Brushless dc motor
Diameter: 10mm-60mm
Working voltage: 3V-48V
Speed no-load: 2000---100000RPM
Power: 2W-800W
Production mode: Our product is a customized type, which is tailored to the needs of customers, they are produced in order mode;
Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers;
Product color: the regular color is black or silver, if you need to customize other colors, please specify in advance;
Equip with: Reducer, encoder, brake
Application
Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm
