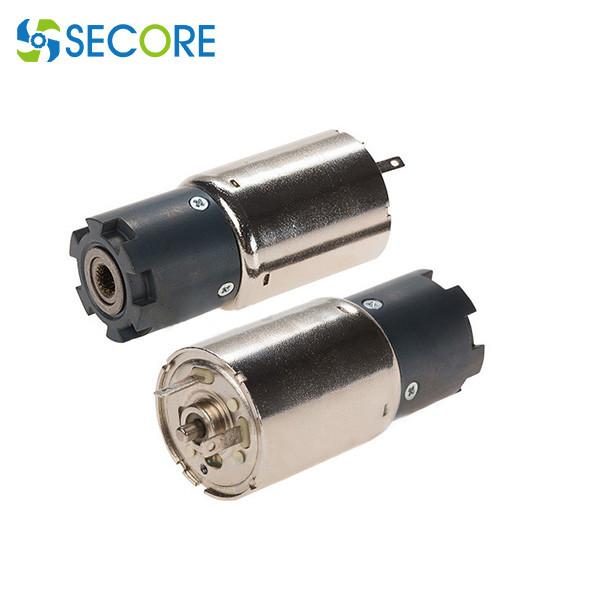

530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
Specifications
Brand Name :
SECORE
Model Number :
SC26G-2953
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Nominated Voltage :
12V
Output torque :
4.5kg.cm
free load Speed :
530rpm
Rated current :
4A
motor dimension :
29.2*53mm
gearhead size :
26*24mm
product name :
precision plantery gearmotor, plastic gear motor
Usage :
smart kitchens and bathroom, digital electronics
Description

Micro Plastic Precision Gear Motor With 26mm Planetary Gearhead

Rated voltage starting voltage No-load current locked-rotor current Output speed Use torque gearbox length Total length
12VDC 10VDC 850mA max 27A max 485rpm 0.81N.m 24.5mm 77.5mm


Model Number: SC26G-2953

Free load current:850mA

Loaded torque: 4.5kg.cm
Rated current: 4A
Rated speed: 485r/min
Rotation direction: Bi-directional ( CW/CCW )
Customized: available
Dimension
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
This motor using German CNC equipment precision processing, according to customer requirements using different processes, special processing methods, to help customers save 50% of time.
It has adjustable reduction ratio, corresponding power can be selected according to customer requirements.
The injection molding process no need material dilution, environmentally friendly, harmless and non-toxic to the human, excellent appearance quality, and high adhesion and mechanical strength.
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
530rpm 4A Plastic Precision Gear Motor With 26mm Planetary Gearhead
