Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
Specifications
Brand Name :
SECORE
Model Number :
SC26-2953
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
12V
Rated torque :
0.81N.m or as request
Rated Speed :
485rpm
Rated current :
400mA or as request
motor size :
29*53mm
gearbox size :
26*24.5mm
product name :
26mm gear motor, plastic plantery gearmotor
Usage :
tailgate, Printers, robots, electronic door locks
Description

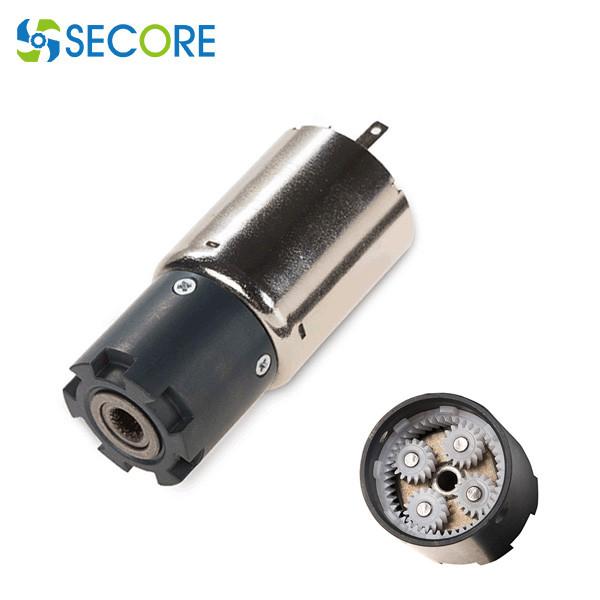

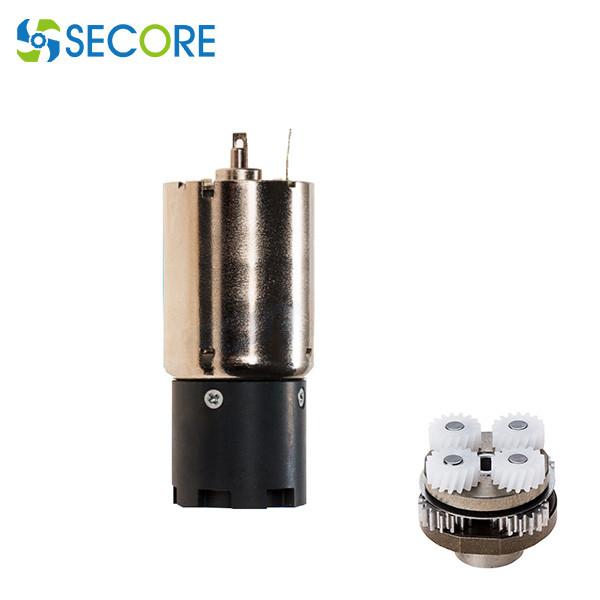

26mm Mini Plastic Gearbox Motor, Electric Tailgate Brush Gearmotor


12V small plastic planetary gearbox motor for tailgate

Model Number: SC26-2953

Commutation: Brush
Construction: Permanent Magnet
Protection: Drip-proof
Rated Voltage: 12V DC
Efficiency: IE 1
Motor diameter: 26mm
Gearhead diameter: 26mm
Gear ratio: 18.37
Gearbox Material: Plastic
Free-load noise: <55dB
With load noise: <50dB
Use environment: -30~80℃
Model number VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
RATED SPEED CURRENT SPEED CURRENT TORQUE TORQUE CURRENT
VDC ±10% r/min A ±10% r/min A kg.cm kg.cm A
SC-26-2953 12 530 0.85 485 4 4.5 45 30
Dimension
Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
Application
Widely used in different application such as cases printers, robots, electronic door locks, electronic monitors, display stands, smart kitchens and bathrooms, communication equipment, industrial equipment, digital electronics
Robots 485rpm Plastic Gearbox Motor Electric Tailgate Brush Gear Motor
