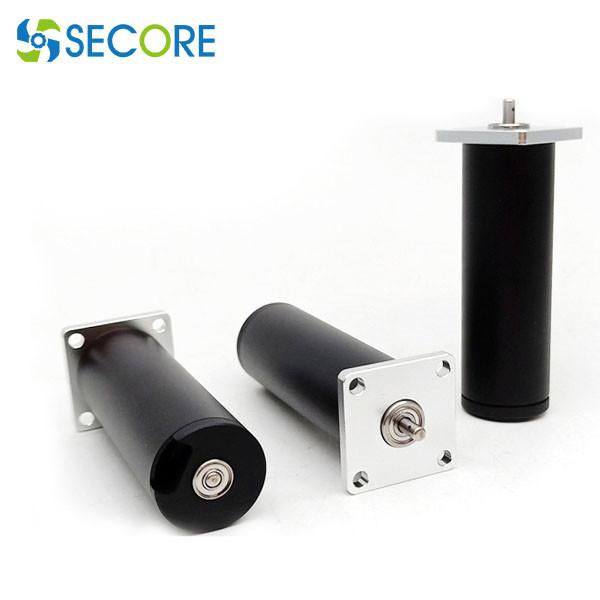

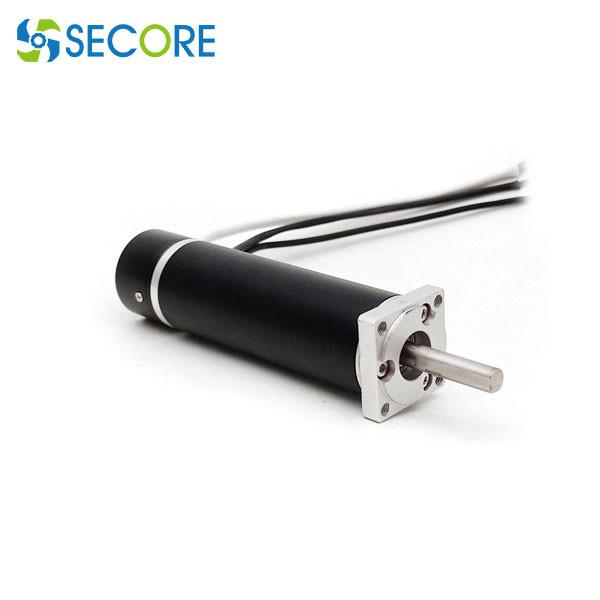

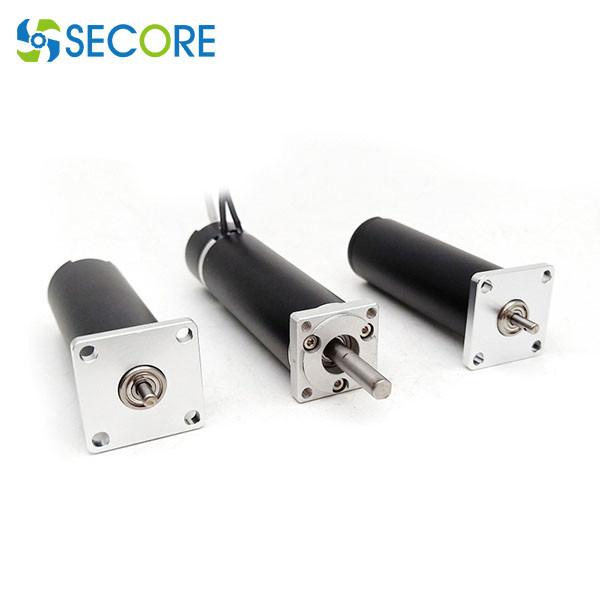

Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Specifications
Brand Name :
SECORE
Model Number :
BCL-2266
Certification :
ISO9001
Place of Origin :
Shenzhen
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
20pcs per carton or as request
Rated Voltage :
24V
Rated Power :
117W
Rated torque :
872g.cm, 87mN.m
Free load Speed :
13262rpm
Rated current :
6.25mA
motor dimensions :
22*66mm
product name :
118W ironless bldc motor, slotless brushless motor
Usage :
Beauty equipment, power tool, 5g antenna, robot arm
Description

22mm 24V Ironless Bldc Motor High Torque 87mN.M Power Tool Coreless Motor


Brushless slotless DC Motor parameter:

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BCL-2266-12 12 11511 241 9776 622 6.6 62.8 2064 43
BCL-2266-24 24 15612 252 13262 872 6.25 117.5 2904 39
Motor Dimension
Ironless Coreless Bldc Motor 22mm 24V High Torque Power Tool 117W
Coreless Motor Characteristics and advantages
Small dimension, compact and light construction
Low electromagnetic interference
Low inductance
Good servo feature
Smoothly speed adjustment
Low starting voltage
Rapid reaction
Low mass inertia
No magnet cogging
Cylindrical winding
No iron core, no iron losses, high efficiency upto 90%, long motor life
