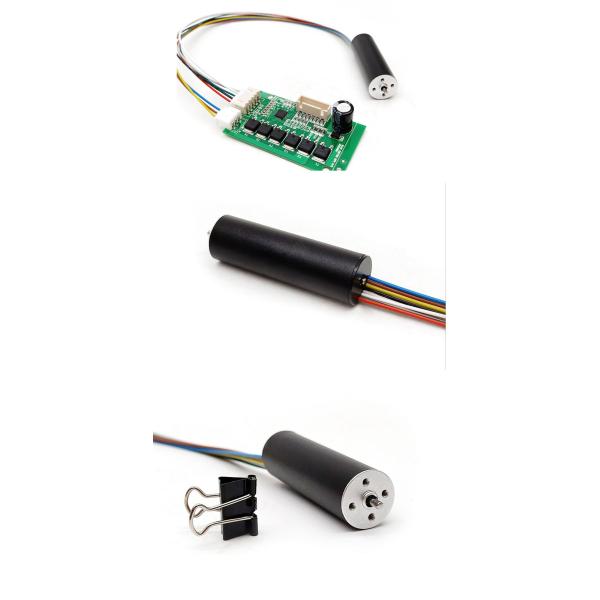

67W 16mm Long Lifespan Slotless Brushless Motor 12v 24v For Tattoo Machine Factory
Brushless slotless DC Motor Technical data:
Model # | RATED Voltage | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
SPEED | CURRENT | SPEED | TORQUE | CURRENT | Out. Power | TORQUE | CURRENT |
VDC | ±10% r/min | mA | ±10% r/min | g.cm | mA | W | g.cm | A |
BCL-1652-12 | 12 | 21050 | 121 | 17530 | 132 | 2.61 | 24 | 806 | 15.1 |
BCL-1652-24 | 24 | 29505 | 186 | 24630 | 260 | 3.61 | 68 | 211 | 2.61 |

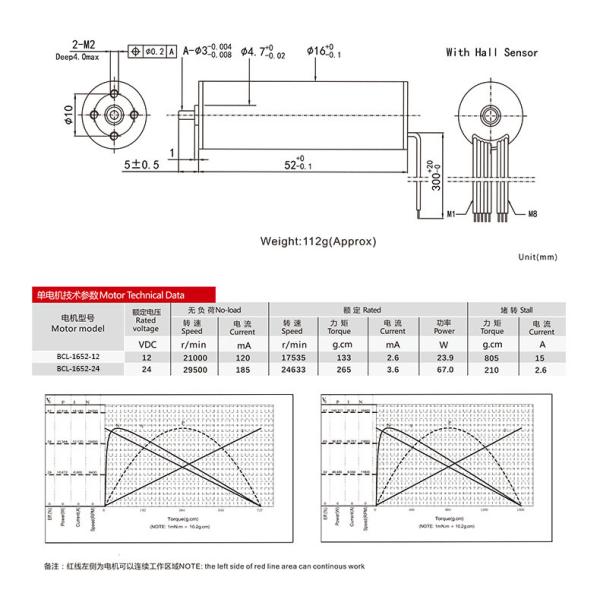

Motor Dimension
Features of coreless/slotless/ironless motor
• Smooth operation and quick response Low noise,
• No cogging effects
• Low starting torque and wide speed adjustment range
• Good heat dissipation, low calorific value and low temperature rise
• Ironless, unique precision wire design, small breathing
• High performance rare earth magnets, power density
• Torque, efficiency • No torque ripple
• Excellent volume-to-power ratio and low weight
• Low vibration for acceleration performance
