1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS-3650
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
500pcs per carton or as request
No load Speed :
6500rpm
Rated speed :
5300rpm
Rated Torque :
200g.cm
stalling torque :
1050g.cm
Continuous current :
1.4A
Motor size :
36*50mm ( diameter * length)
Product name :
micro brushless motor
Usage :
air pump, diaphragm pump, automation device
Description

3650 Brushless Diaphragm Pump Motor Long Life 36mm Brushless Air Pump Motor

DC Brushless inner rotor Motors :

Size: diameter 36*50mm length

Built-in driver

PWM pulse wide speed range

FG speed feedback signal

Low EMC,Low noise

Power: 11W ( internal driver )

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BLS-3650-12 12 6500 250 5300 200 1400 11 1050 4
BLS-3650-24 24 4000 80 3400 200 420 7 1300 2.4

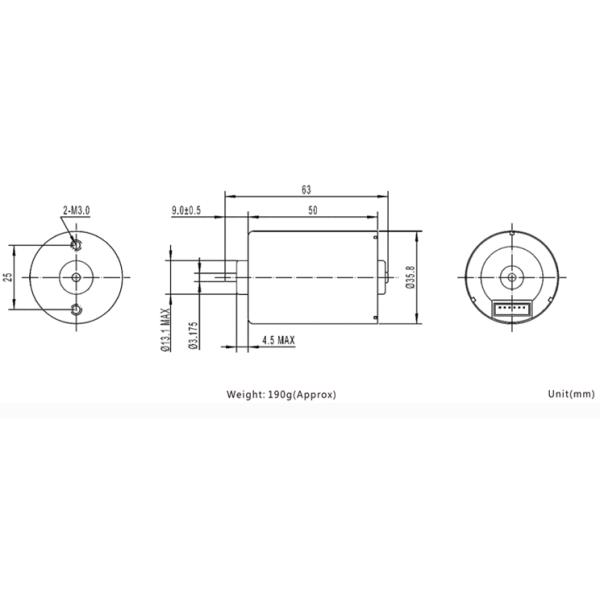

Motor dimensions

1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor

1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor

1.4A Diaphragm Pump Motor Low EMC 36mm Brushless Air Pump Motor

TO BE TAILORED

♦ Customized voltage, motor performance

♦ Customized mounting, shaft shape and dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.
