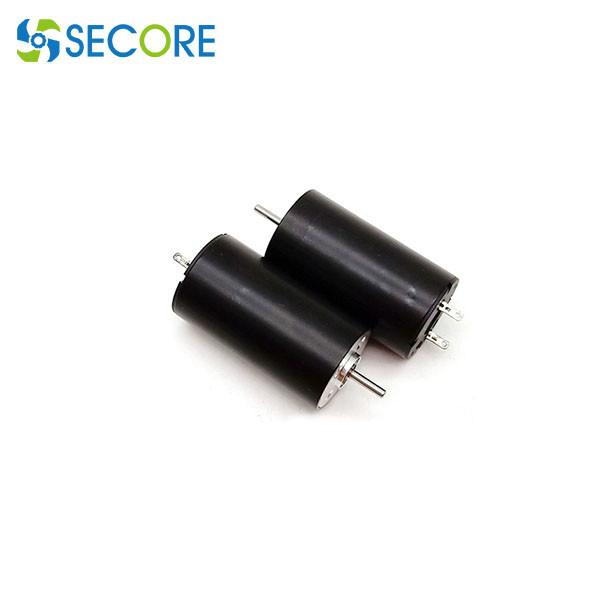

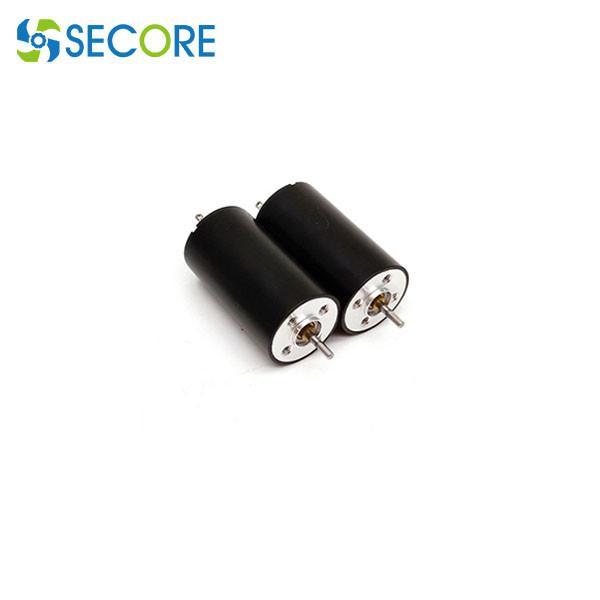

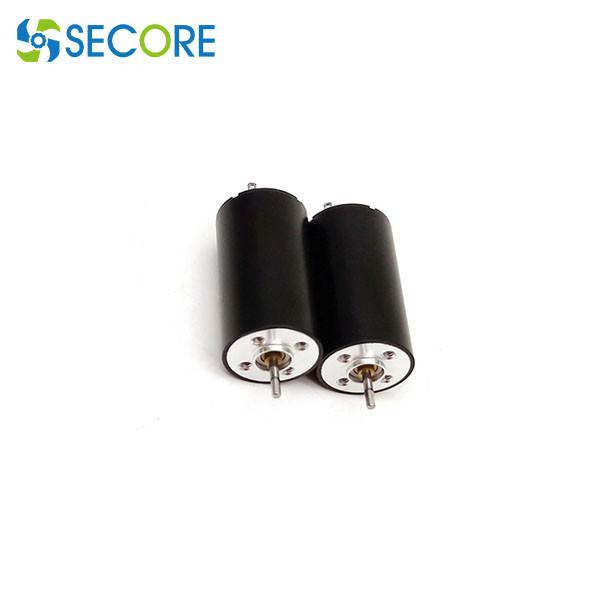

1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
Specifications
Brand Name :
SECORE
Model Number :
BCL-1629
Certification :
CE ROHS
Place of Origin :
Dongguan
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
100pcs per carton or as request
Rated Voltage :
6V or 12V
Rated Power :
1.58W
Rated torque :
15g.cm
Free load Speed :
12000rpm
Rated current :
335mA
motor size :
16*29mm
product name :
miniature brush coreless motor 16mm
Usage :
Beauty equipment, power tool, 5g antenna
Description

25g Light Weight Miniature Brush Coreless Motor 16mm For Dental Equipment


Brush DC Motor parameter:

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BCL-1629-06 6 12000 29 10500 15 335 1.58 128 3.5
BCL-1629-12 12 12000 14 10800 15 172 1.64 161 1.8
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment
Application
Coreless DC motors are ideal for a variety of dynamic applications, including automotive systems, cable pull systems, microscopes and electric screwdrivers, tattoo machines, golf carts and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotics projects such as small positioning and pan/tilt systems. Medical devices such as prosthetics, insulin pumps, X-ray machines and laboratory equipment also benefit from the use of coreless motors. In addition, there are many applications in particularly demanding fields such as aerospace, defense and surveillance.
