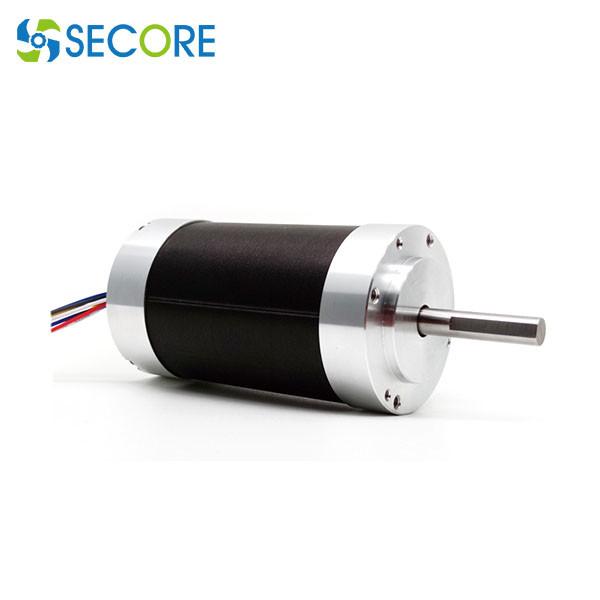

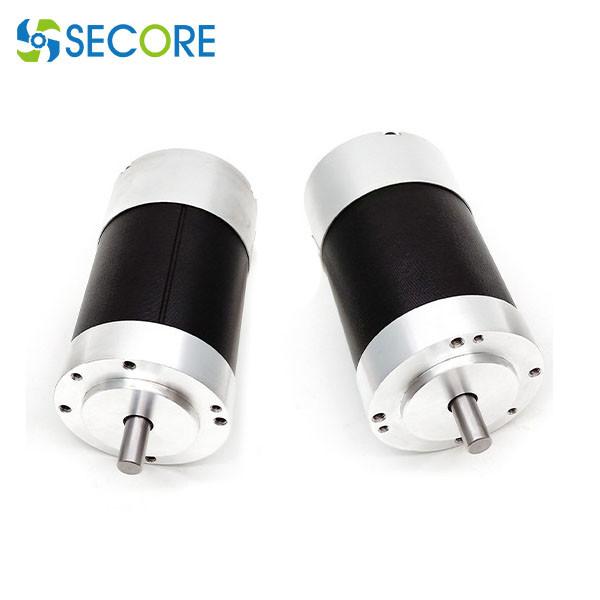

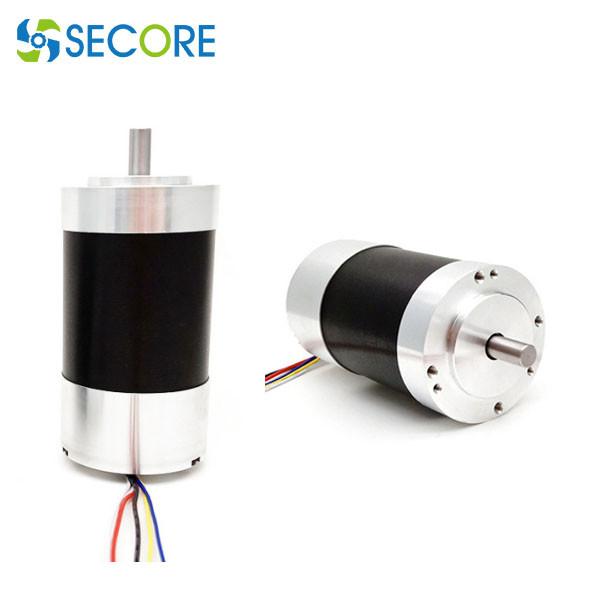

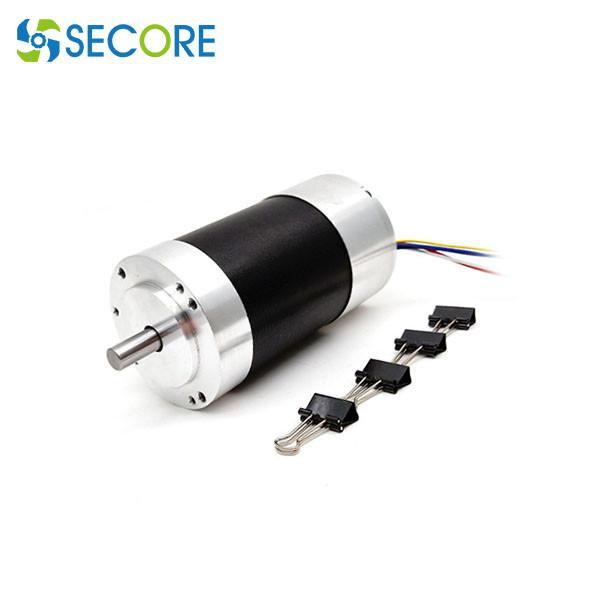

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor
Specifications
Brand Name :
SECORE
Model Number :
BLS-57100
Certification :
CE ROHS
Place of Origin :
China,Guangdong
MOQ :
100
Price :
Negotiated The Price
Payment Terms :
T/T, D/A
Supply Ability :
100000pcs per month
Delivery Time :
10-12 working days
Packaging Details :
20pcs per carton or as request
No load Speed :
3500rpm
Rated speed :
3050rpm
Rated Torque :
400g.cm
stalling torque :
3200g.cm
Continuous current :
1.9A
Motor dimensions :
57-100mm ( diameter * length)
Product name :
mower bldc motor, 57mm high torque brushless motor
Application :
medical equipment, lawn mower, diaphragm pump, automation device
Description

12V External Drive Medical Equipment Brushless Motor 57mm BLDC Lawn Mower Motor

DC Brushless inner rotor Motors :

Size: diameter 56.5*100mm length

Outside driver

Power: 11W ( External driver )

Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BLS-56100-12 12 3500 600 3050 400 1900 12.5 3200 4.5
BLS-56100-24 24 3500 300 3050 400 1000 12.5 3200 4.5

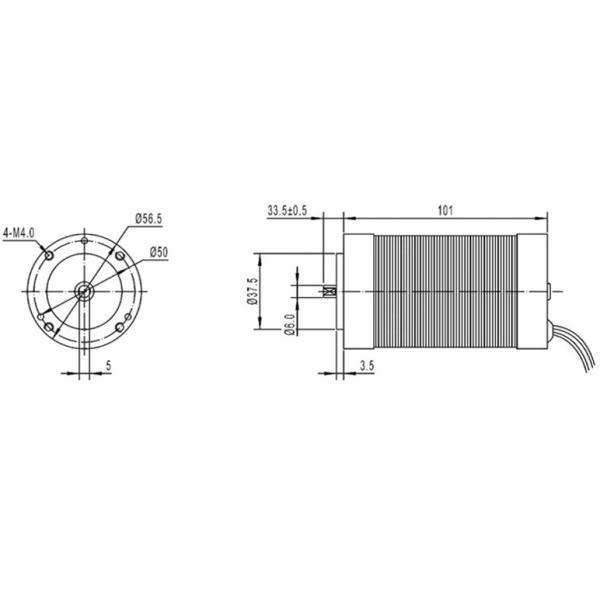

Motor dimensions

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

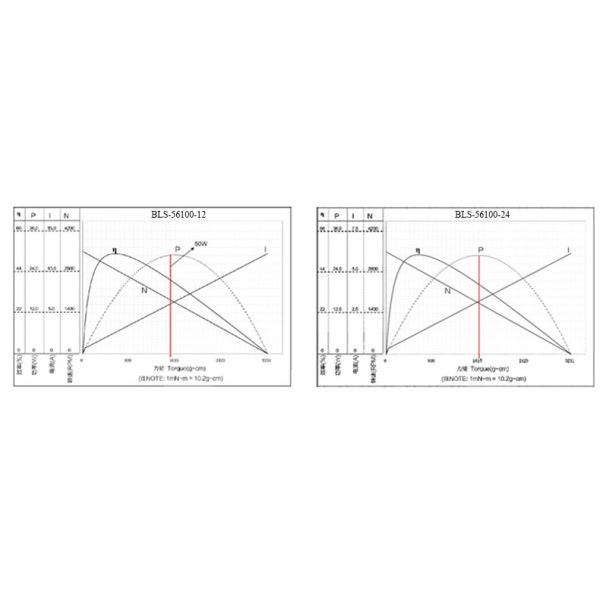

Performance curve

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

Medical Equipment Brushless DC Motor 57mm BLDC Lawn Mower Motor

Brushless motor basics

BLDC motors overcome the need for a mechanical commutator by reversing the motor setup; the windings become the stator and the permanent magnets become part of the rotor. The stator typically consists of steel laminations, slotted axially to accommodate an even number of windings along their inner perimeter. The rotor consists of a shaft and a hub with permanent magnets arranged in two to eight pole pairs alternating between "N" and "S". Because the windings are fixed, a permanent connection can be made to power them. In order for the stationary windings to move the permanent magnets, the windings need to be energized (or commutated) in a controlled sequence to generate a rotating magnetic field.
