12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment
Specifications
Brand Name :
VIC-TECH
Model Number :
PM35L-048-376- 120G
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$5~10/unit
Payment Terms :
MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :
100000\ Units/year
Delivery Time :
10~30 days after receiving sample payment
Packaging Details :
The product is packed with pearl cotton, and the outside is in a carton.
Motor type: :
Permanent Magnet geared stepper moto
Driving voltage: :
12 V DC
Step angle: :
7.5 degree
No. of phases: :
2 phases
Coil resistance: :
30Ω±7%
Diameter: :
35mm
Description

12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2-Phase Stepping Motor Applied To Medical Analyzer Equipment

Description

This motor is a 35mm diameter high torque decelerating stepping motor with a body height of 35.8mm. The output shaft of the motor can be customized to install gears and synchronous pulleys. After the stepping motor is equipped with a gearbox, the step angle is further subdivided to increase the load torque and control more accurately
Conventional gear reduction ratios include 3.7, 3.82, 5.2, 5.36, 13.7, 14.62, 19.2, 20.51, 26.85, 28.77, 51, 71100139. Suitable gear reduction ratios can be recommended according to customer needs,
The output part of the motor is usually a connecting line, or a customized socket
The mission of the motor is more than 10,000 hours, and the life of the gear is more than 2000 hours.

12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment

Parameters

Product Name Geared stepper motor
Model PM35L-048-376- 120G
Resistance 30Ω±7%
Current Per Phase 400 mA/phase
Type Permanent Magnet
Phase 2
Certification ROHS
Holding Torque 9000g.cm / 200PPS
Diameter 35mm
Rated voltage 12 V
Pull in Rate 400pps
Geaar ratio 3.7-139
weight 180g
OEM & ODM SERVICE AVAILABLE

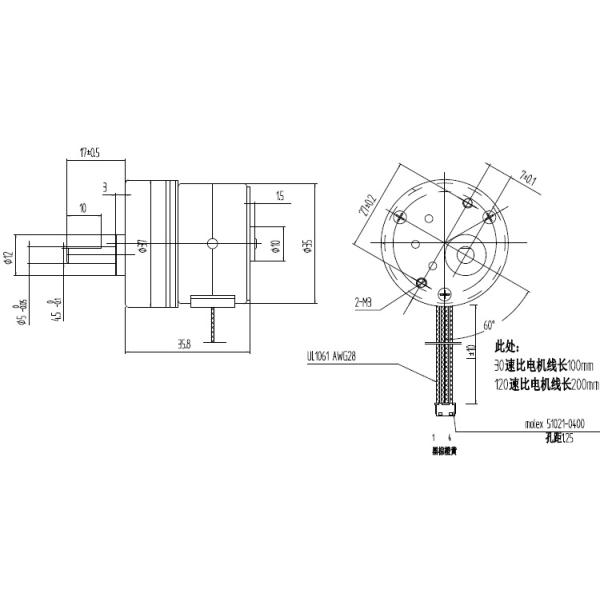

Design Drawing

12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment

About geared stepper motors

The gear box has high precision, high efficiency and low noise, which makes the product have good reliability.
The power input position of the stepper motor can be in the form of FPC, FFC, PCB cable, etc.
The output shaft of the motor can adopt various output structures, such as circular shaft, D-shaft and wire bar.

Gearbox Parameters

Number of gear trains 1 2 3 All gears are metal, and the gear reduction ratio marked with * can be customized as plastic gears, which have the advantages of low noise and cheaper price.
Gear ratioi 3.7 13.7 51
3.82 14.62 71 *
5.2 * 19.2 * 100 *
5.36 20.51 139 *
　 26.85 * 　
　 28.77 　
Length of gearbox(mm) 30.9 37.5 44.1

Typical Applications

* Saliva Analyzer
* Blood Analyzer
* Welding Machine
* Intelligent Security Products
* Fiber Fusion Splicer
* Digital Electronics

Lead time and packaging information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

12VDC High Torque 35mm Geared Stepper Motor 7.5 ° 2 Phase For Medical Analyzer Equipment

Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ

1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.

2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.

3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.

4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.

5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.

6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.

7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
