36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Description

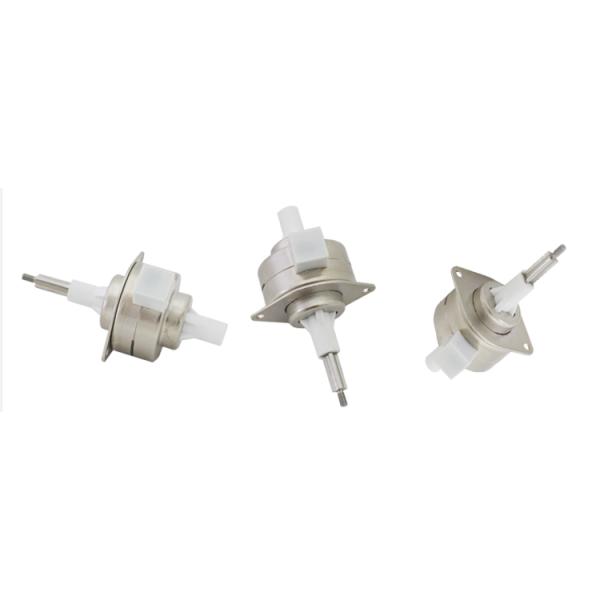

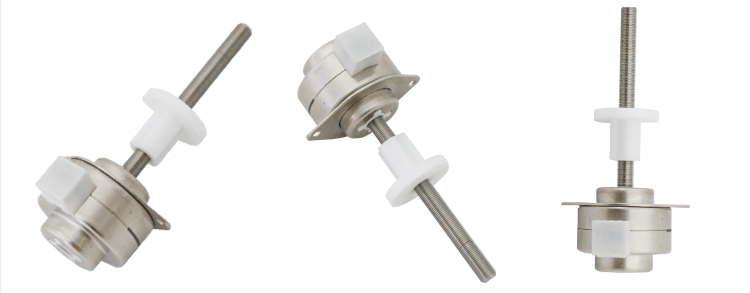

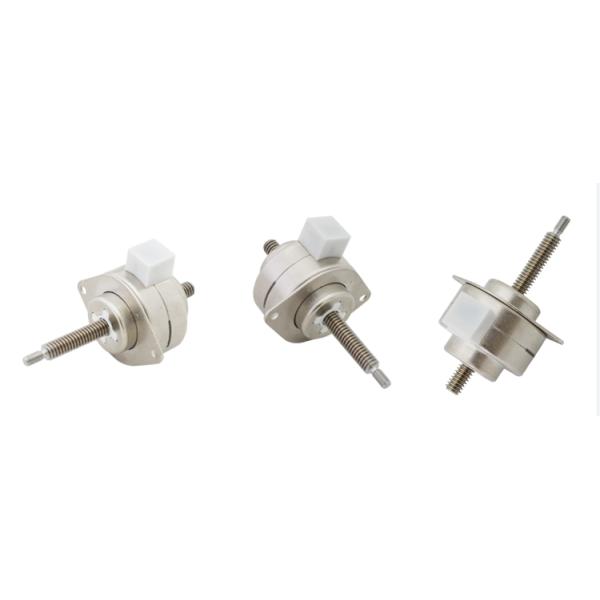

VSM36L-048S-0254-113.2 is a through shaft type stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the top of the screw rod needs to be fixed, and the guide screw will move forward or backward.
The stepping angle of the stepping motor is 7.5 degrees, and the lead spacing is 1.22mm. When the stepper motor rotates for one step, the lead moves 0.0254mm, and the length of the screw rod of the motor can be customized according to customer needs
The product converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring can be connected or output from the outlet box according to customer requirements
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Parameters

PRODUCT NAME PM36 5v Linear stepper motor
MODEL VSM36L-048S-0254-113.2
POWER 5.6W
VOLTAGE 5V
PHASE CURRENT 560mA
PHASE RESISTANCE 9(土10%) Ohm / 20C
PHASE INDUCTANCE 11.5(±20%) mH I lkHz
STEP ANGLE 7.5°
SCREW LEAD 1.22
STEP TRAVEL 0.0254
LINEAR FORCE 70N/300PPS
SCREW LENGTH 113.2mm
OEM & ODM SERVICE AVAILABLE

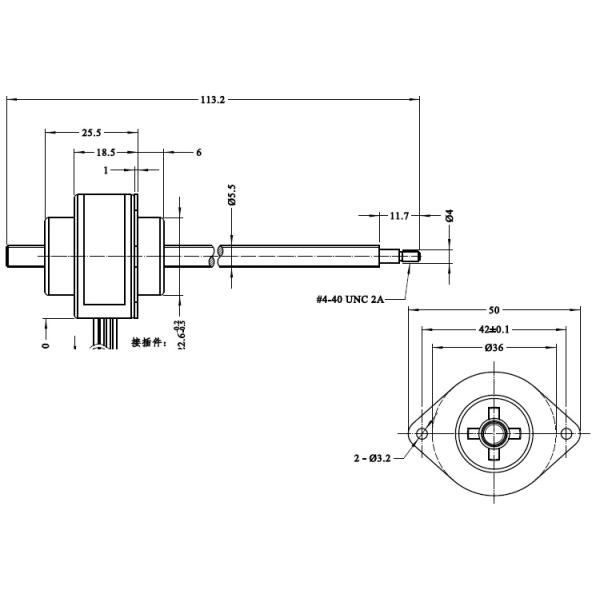

Design Drawing

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

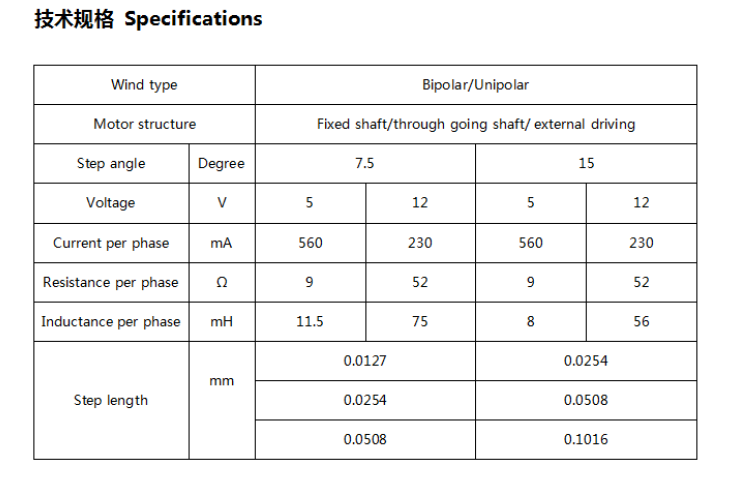

Motor parameters and specifications

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

CAPTIVE

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Non Captive

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

External

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

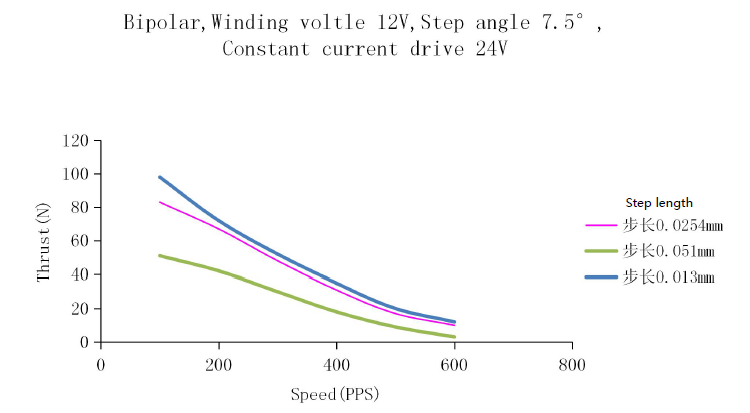

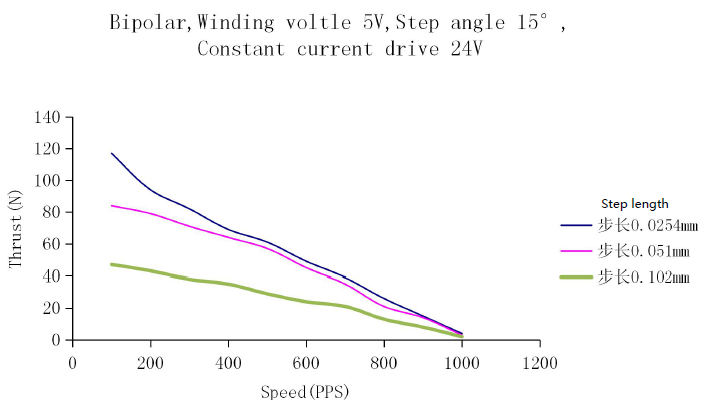

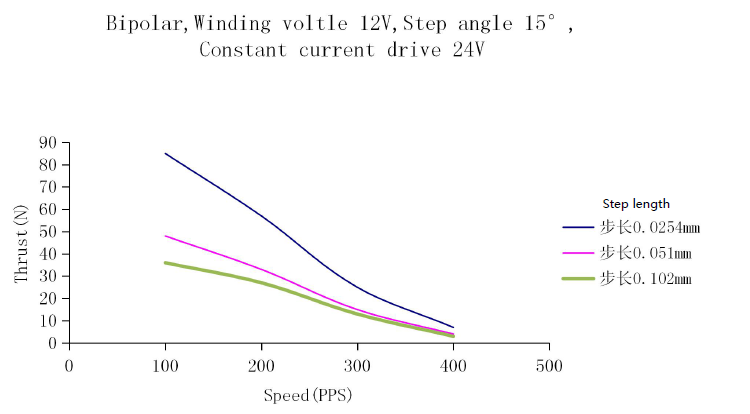

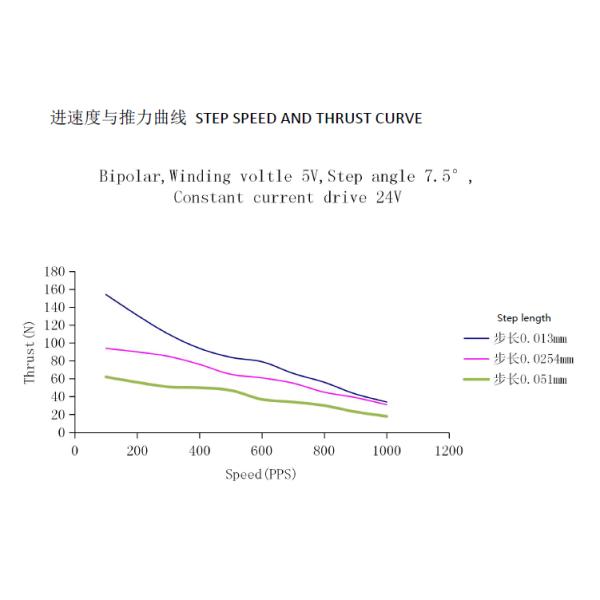

STEP SPEED AND THRUST CURVE

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor
36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor
36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor
36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Application

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Customization service

The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
The screw rod can also customize the nut

Lead Time and Packaging Information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ

36mm Micro Linear Stepper Motor 12V High Thrust Through Shaft Screw Motor

Frequently Asked Question

1.Stepper motor pulse signal deceleration:
Stepper motor rotation speed, is based on the change of the input pulse signal to change. In theory, give the driver a pulse, the stepper motor rotates a step angle (subdivision for a subdivision step angle). In practice, if the pulse signal changes too quickly, the stepper motor due to the internal damping effect of the reverse electric potential, the magnetic response between the rotor and stator will not follow the change in the electrical signal, will lead to blocking and lost steps.

2.Stepper motor how to use the curve exponential control speed?
Exponential curve, in the software programming, first calculated time constants stored in the computer memory, work pointing to the selection. Usually, the acceleration and deceleration time to complete the stepper motor is 300ms or more. If you use too short acceleration and deceleration time, for the vast majority of stepper motors, it will be difficult to achieve high-speed rotation of stepper motors.
