10mm Micro Stepper Motor With Screw Slider 2-Phase Stepper Motor

VSM1069 is a miniature stepper motor with a screw pitch of 0.4mm on the output shaft, which is supported by the screw and the screw to rotate into thrust.

The stepping angle of the motor is 18 degrees, and it runs 20 steps per revolution, so the displacement resolution can reach 0.02mm, achieving precise control.

The actuator adopts a subdivision driving method to meet the requirements.

Due to its excellent characteristics such as small size, high accuracy, and easy control, this micro stepper motor is widely used in fields such as cameras, optical instruments, lenses, precision medical devices, and automatic door locks.

The FPC of the motor input part can also be replaced with wiring pins, PCBs, and other forms according to customer needs.

Mechanical Dimension:MM

Technical Features

VSM1069 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,

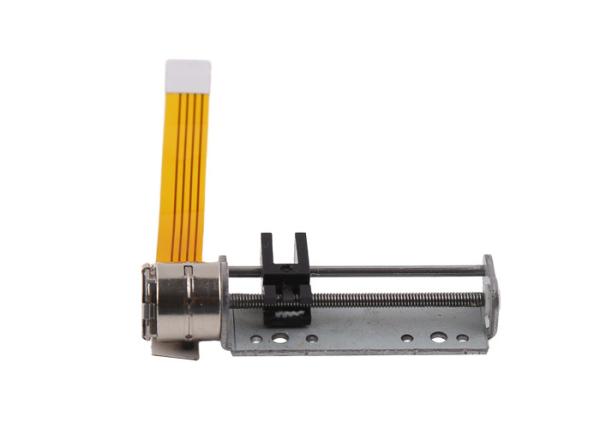

the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device


Specifications

High quality and the best price.
Competitive Advantage

• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.

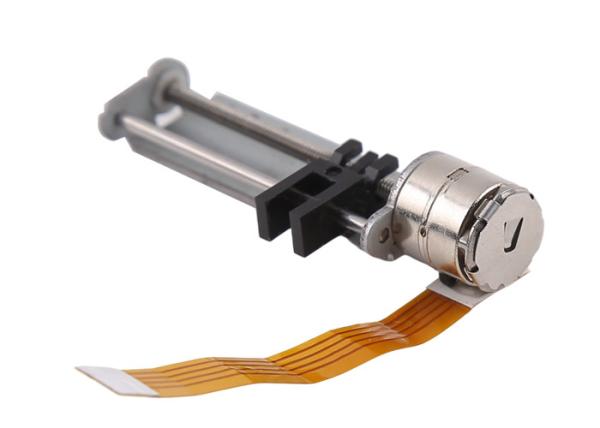

Product Detail Presentation
