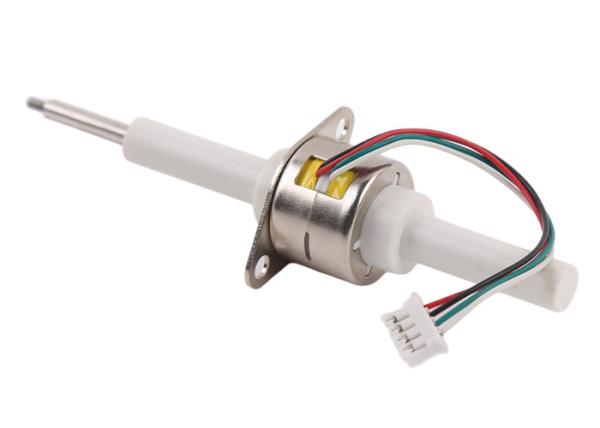

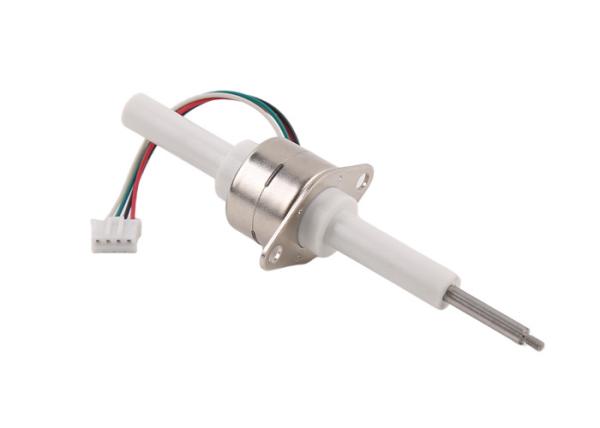

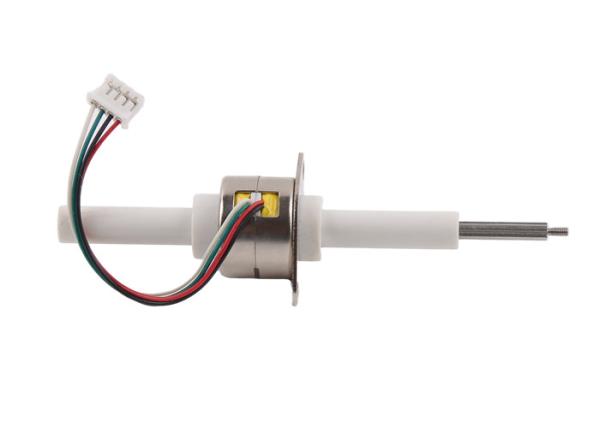

15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
15 degree stepper angle 20mm linear stepper motor stroke selectable
Specifications
Brand Name :
VIC-TECH
Model Number :
VSM20L-24S-102-32-01
Certification :
RoHS, ISO9001
Place of Origin :
China
MOQ :
1Unit
Price :
$6.5~$30/Unit
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
100000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Standard export package in corrugated carton (Mass production).
Motor diameter :
20mm
Rated voltage :
5V
Power :
3.4W
Phase Current :
385mA
Phase Inductance :
13(±10%）Ohm/20C
Phase inductance :
4(±20%）Mh/1kmz
Step angle :
15°
Screw Lead :
2.4384mm
Step Travel :
0.102mm
Stroke :
31mm
Insulation Class :
B
Mass :
35g
Insulation Resistance :
20mΩ（DC 500V）
Description

High thrust and high precision 32mm stroke 15° step angle 20mm diameter stepper motor

The 20 mm diameter stepper motor has a fixed shaft. In applications with short travel requirements and where a rotary stop device is not available, a fixed shaft is recommended. The product can be used with precision instruments or electronic products, etc., and is widely used in various fields of industry.

Our products can be customized, if you are interested, you can write to me.

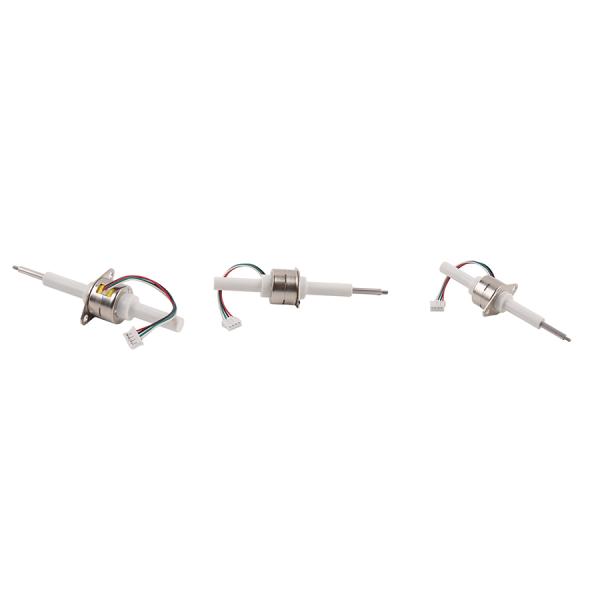

15 degree stepper angle 20mm linear stepper motor stroke selectable

Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Design Layout (Unit:mm)

15 degree stepper angle 20mm linear stepper motor stroke selectable

Parameter sheet:

Motor diameter

20 mm

Rated voltage

5V DC

Power

3.4W

Phase Current

385mA

Phase Inductance

13(±10%)Ohm/20C

Phase inductance

4(±20%)Mh/1kmz

Step angle

15 degrees

Screw Lead

2.4384mm

Step Travel

0.102mm

Insulation Resistance

20mΩ(DC 500V)

Insulation Class

 B

Operating Temp Range

-20~+55℃

Storang Temp Range

-40~+100℃

Mass

35g

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

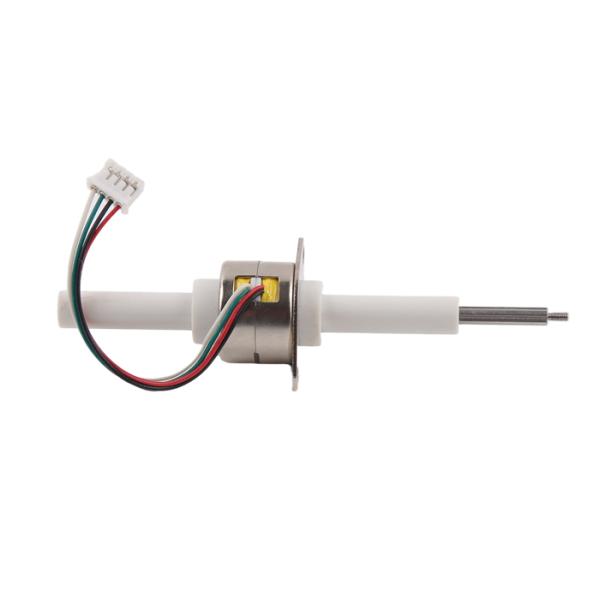

15 degree stepper angle 20mm linear stepper motor stroke selectable
