5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
Specifications
Brand Name :
VIC-TECH
Model Number :
SM5-PG-Linear
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1Unit
Price :
$6.5~$15.5/Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
10-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle(degrees): :
22.5 degree
Phase :
2
Voltage :
5 V
Type :
Permanent Magnet
Thrust :
Over 250 g
Motor type :
Linear stepper motor with gearbox
Motor diameter :
5mm
Gear ratio :
20.25:1
Description

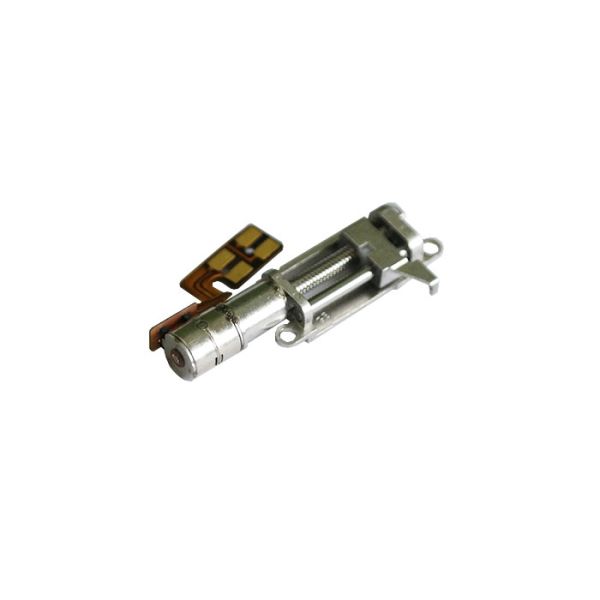

Micro 5mm diameter linear stepper motor with gearbox and slider

This motor is a 5mm diameter stepper motor, attached with 20.25:1 gear ratio gearbox.

This is a linear stepper motor, and the lead screw pitch 0.4mm, and it has 6 starts, so lead of lead screw is 2.4mm.

The effective stroke of this motor is about 8mm, and slider can move up and down based on driver’s set up.

This motor has very small size and can be used on high precision electrical and electronic devices.

Please feel free to contact us if you want to order samples.

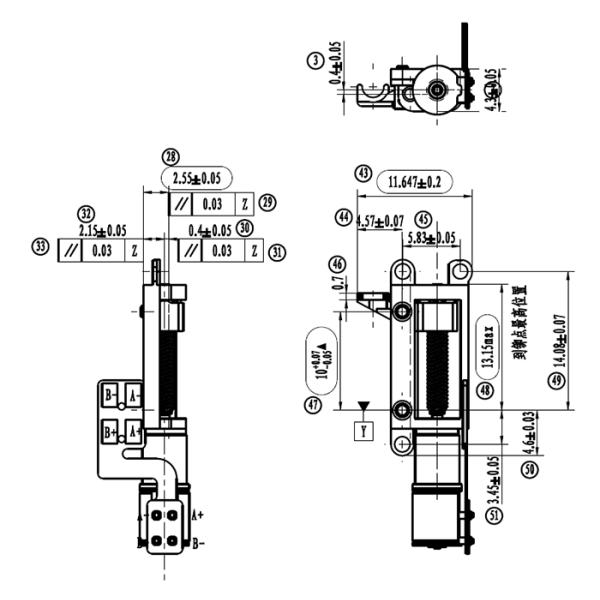

Mechanical Dimension:MM

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Model number SM5-PG-Linear
Motor type Linear stepper motor with gear box
Motor diameter 5mm
Rated voltage 5V
Gearbox ratio 20.25:1
Lead screw pitch 0.4mm
Lead screw starts 6 starts
Step angle 22.5°
Stroke About 8mm
Thrust 250 g (5V/2400PPS)

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox

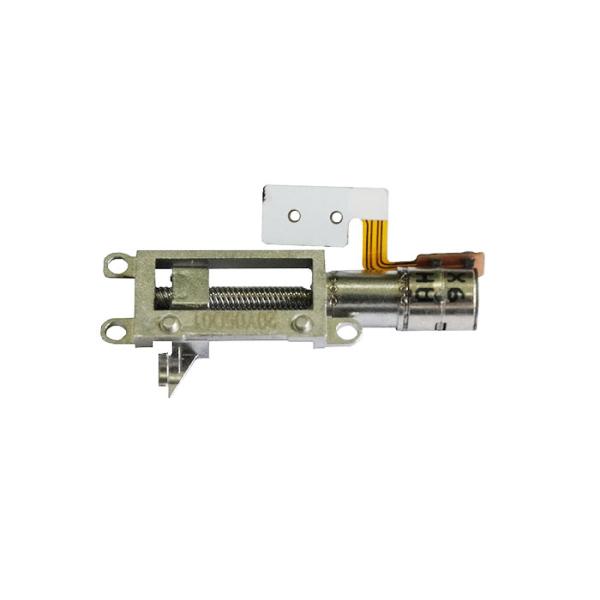

Product Detail Presentation

5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
5V 5mm Diameter Micro Linear Stepper Motor With Gearbox
