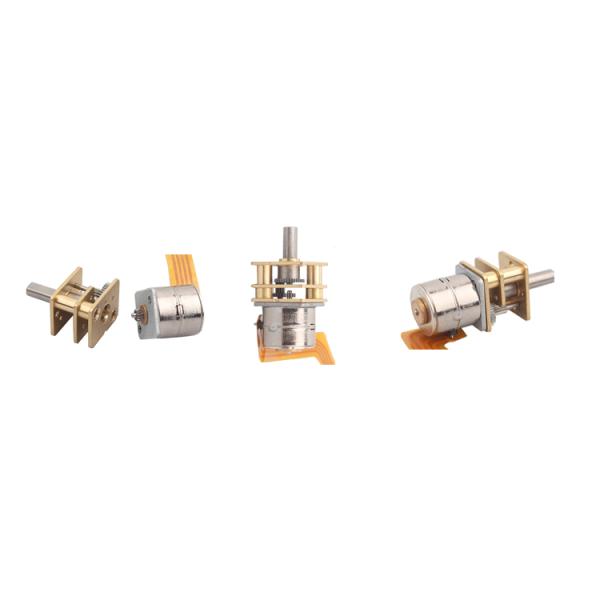

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
Specifications
Brand Name :
VIC-TECH
Model Number :
VSM10157
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1Unit
Price :
$4.5~$8/Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle(degrees): :
18 degree
Phase :
2
Voltage :
5V
Current / Phase :
280mA/Phase
Resistance :
18Ω±7%
Weight :
10g
Rotation :
CW/CCW
Type :
Permanent Magnet
Description

5v micro geared stepper motor for intelligent security micro stepper motor

VSM10157G is the use of diameter 10MM micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 1:500 and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D

Mechanical Dimension:MM

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Product Name 10mm micro stepper motor
Model VSM10157
Rated Voltage 5 V
Current Per Phase 280mA /phase
Coil Resistance 18Ω±7%
No. Of phase 2 Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque More Than 5.0gf.cm At 500 pps
Pull-In Out More Than 6.0gf.cm At 500 pps
Hoiding Torque More Than 13.0gf.cm At 500 pps
Max. Response Frequency More Than 1600 pps
Max. Starting Frequency More Than 1000 pps
Insulation Class Class E for Coils
Insulation Strength 100V AC for One Second
Insulation Resistance 50MΩ DC 500 V
Operating Temperature Range -0~+55 ℃

Lead Method

 FPC
Weight 10g
OEM & ODM SERVICE AVAILABLE

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

10mm Geared Stepper Motor Intelligent Security 5VDC Micro Stepper Motor 2Phase 4 Wire Bipolar Drive VSM10157-10G8D
