Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
Specifications
Brand Name :
VIC-TECH
Model Number :
PM08-02
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1Unit
Price :
$2~$6.5/Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle(degrees): :
18 degree
Phase :
2
Voltage :
3.3V
Resistance :
40Ω±10%
Weight :
6g
Rotation :
CW/CCW
Type :
Permanent Magnet
Description

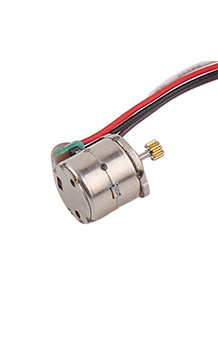

micro stepper motor 8mm 2 phase pm stepper motor with copper gear for camera lenses

PM08-2 is micro stepper motor .It is 2 Phase 4 Wire minitarute stepper tiny motor, please check its dimension clearly, make sure if you can handle it.Use for Focusing camera normally, it is a precise parts.

Rated Voltage : DC3.3V; Dia:8mm, Height: 9.2mm(not including the bearing sleeve) Output shaft: 0.8mm The output shaft length: 4mm(above the belt gear)

A set of two motor with wire , 2pcs motor incomon wire, if you do not like them together,you can cut the wire.

The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.

Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08

Mechanical Dimension:MM

Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08

Technical Features

Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Product Name 8mm micro stepper motor
Model PM08-02
Rated Voltage 3.3V
Coil Resistance 40Ω±7%
No. Of phase 2 Phases
Step Angle 18 degree
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 5 gf.cm Min,No Load
Pull-Out Torque - gf.cm Min
Max. Response Frequency More Than 800 pps,No Load
Max. Starting Frequency More Than 1000 pps,No Load
Insulation Class Class F
Dielectric Strength 3 mA Max
Operating Temperature Range -10~+50 ℃
Noise 50 dB Ref.
Weight 6g(Ref.)
OEM & ODM SERVICE AVAILABLE

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory
  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08

Product Detail Presentation

Camera Lenses 8mm Micro Stepper Motor 2 Phase Pm Stepper Motor With Copper Gear PM08
