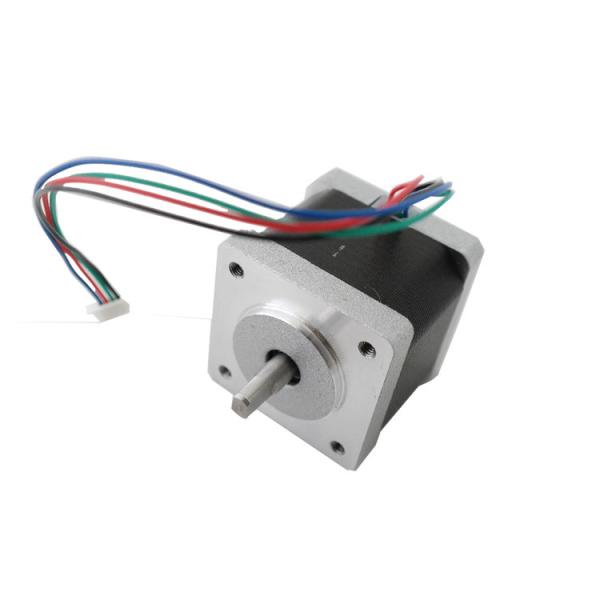

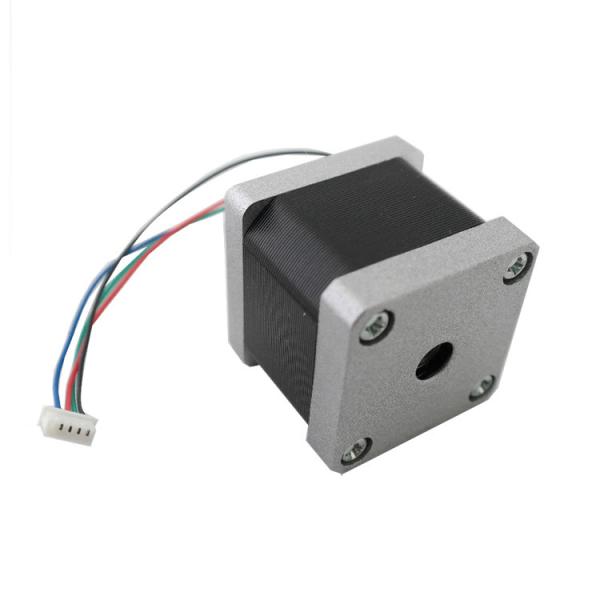

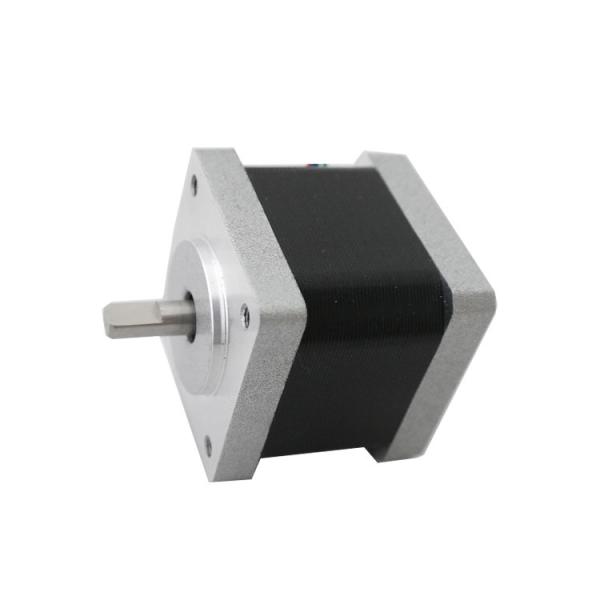

2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
Specifications
Brand Name :
VIC-TECH
Model Number :
35HS34-05041-01AF
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Unit
Price :
$8.00 - $15.00 / Units
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000Units per month
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Step Angle(degrees) :
1.8°
Holding Torque :
1300g.cm
Phase :
2
Type :
Hybrid
Weight :
0.13 0.17 0.22 Kg
Current / Phase :
0.5A
Voltage :
6V
Description

35HS34 1.8 ° 35mm NEMA14 2 phase hybrid stepper motor 35mm 1.8 ° stepper motor

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm

Mechanical Dimension:MM

2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm

Customization service:
We provide customization service on motor including lead wire number(4wires/6wires/8wires), coil resistance, cable length and color, also we have multiple height for customers to choose.
Regular output shaft is D shaft, if customers require leads screw shaft, we provide customization service on lead screws, and you can adjust lead screw type and shaft length.
Picture below is a typical hybrid stepper motor with trapezoidal lead screw.

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

Specifications

Standard Operating Conditions

No. ITEM SPEC. REMARKS
1 Voltage 9.5 VDC
2 Source Voltage 24 VDC

Indicates the voltage that the power supplier applys to the driver circuit.

It is same as the rated voltage when motor is drived on a constant voltage model.
3 Phase 4 Phase
4 Rated Current 0.19 A /Phase Peak value when microstep
5 Exciting mode Unipolar
6 Step angle 1.8 deg ±7％
7 Rotation CW/CCW

Electrical Characteristics

No. ITEM SPEC. TEST CONDITION REMARKS
1 Resistance 50±10％Ω At 20℃ Each phase
2 Inductance 30±20％mH At 1Hz,0.3 Vrms Each phase(Ref.)
3 Holding Torque

≥500 g.cm

500 g.cm min
4 Detent Torque

≤120 g.cm

120 g.cm max
5 Step Angle Accuary ±5％

Constant Current Driver/

12V/Two Phase on/Rated current/Speed:1pps
6 Slew Rate with no load ——

Source Voltage 24V/

Rated current//Half step
7 Pull-in rate with no load ——

Source Voltage 24V/

Rated current//Half step
8 Dielectric Strength

≤1 mA

1 mA max.

 600VAC,1 second
9 Insulation Resistance

≥100 MΩ

100 MΩmin.

 500VDC Between coil and endbells
10 Insulation class Coil class B
11 Temperature rise less than 80℃

Mechanical Characteristics

No. ITEM SPEC.
1 Outline Dimentions See technical drawing
2 Rotor Inertia 10 g.cm2
3 Weight 0.11 kg
4 End play of the shaft 0.08mm@500g.f
5 Radial play of the shaft 0.02mm@500g.f

Environmental Performance

No. ITEM OPERATING
1 Operation environment conditions Ambient temperature -20℃～+50℃
Ambient Humidity 15～85%RH No condensation
2 Storage environment conditions Ambient temperature -30℃～+70℃
Ambient Humidity 15～85%RH No condensation

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

Torque Curve For Reference

Product Detail Presentation

2 Phase Durable 35mm NEMA14 Hybrid Stepper Motor 35mm 1.8 ° Step Angle Holding Torque 1300g.cm
