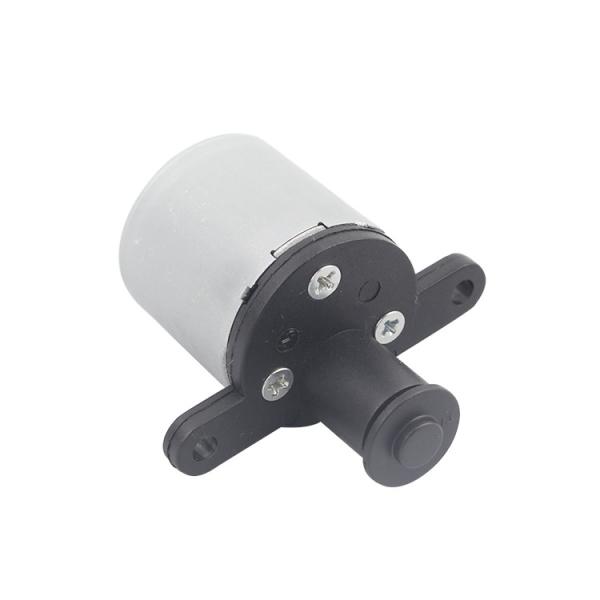

25BYJ412-1L geared stepper motor Chinese wholesale supply low noise permanent magnet stepper motor

25BYJ412-1L stepper motor is mainly used in the fields of printer, valve, fluid control, position control, etc. This motor has the characteristics of small size, high precision and high strength.

The stepping motor has a built-in reduction gearbox to achieve a reduction ratio of 1:10, improve the torque, and finally use the output ejector with a stop-stop structure, so that the ram can be moved back and forth without rotation. General thrust

More than 10 kg.

At the same time, the external wiring part can be used according to customer requirements for various types and lengths of connecting lines, or FPC FFC.The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!Customer needs are our efforts, please feel free to contact us!

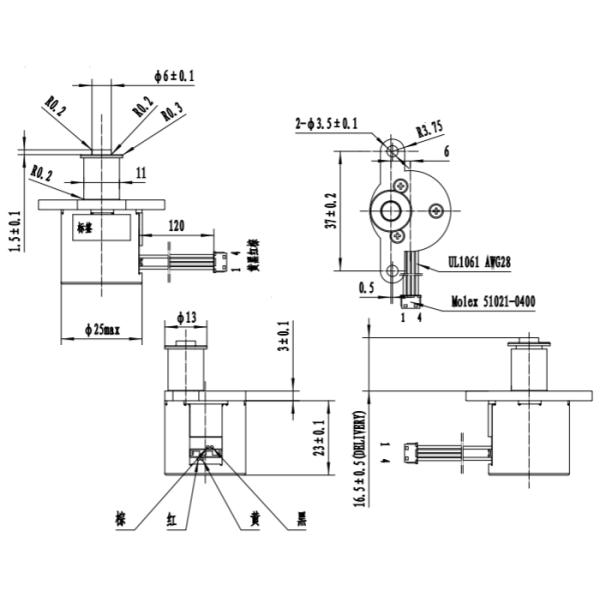

Mechanical Dimension:MM

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

Application Highlights

Refrigeration Industry Air Conditioner, Fan Winding possibilities - Bipolar
Electric Generator Valve Control Maintenance free - motor is brush
Other Industries & Applications Robotics Cost effective - compact design, lower integration cost
Monitoring Industry(CCTV) Camera Excellent open loop control - No encoders necessary
Sanitary Ware Automatic Toilet Bowl Digitally controlled - Easy to use with a micro processor

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation
