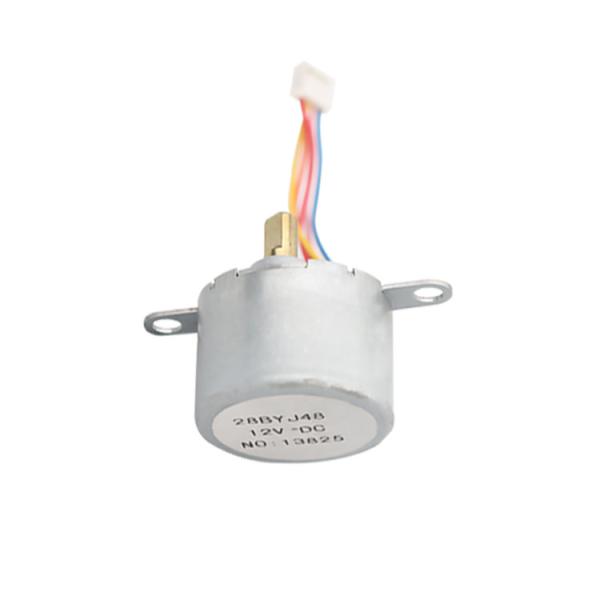

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
Specifications
Brand Name :
VIC-TECH
Model Number :
28BYJ48
Certification :
ROHS
Place of Origin :
China
MOQ :
1Unit
Price :
$0.8~3/unit
Payment Terms :
MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :
10000Units/month
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gear Motor
Construction :
Permanent Magnet
Continuous current(a) :
customized
Voltage(v) :
12V
Phase :
4
Lead Wires :
5
Step Angle :
5.625 °/64
Description

28BYJ48 geared stepper motor Chinese wholesale supply low noise permanent magnet stepper motor

28BYJ48 stepper motor is mainly used for sanitary ware. Thermostatic valve Hot water faucet Automatic control and adjustment of water temperature and water flow such as Rainwater.
At the same time, it can realize other fields that require precise control. Due to the realization of open-loop control and low-cost position control, it is widely used in various fields of gas control, water purifier valves, instruments and other automatic control precision control.
At the same time, the external wiring part can be used according to customer requirements for various types and lengths of connecting lines, or FPC FFC.
The output part can be used in various ways such as gears, pulleys, V-grooves and turbine screws.
Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor

Mechanical Dimension:MM

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor

Technical Features

Application Highlights

HVAC/R Valve Actuation Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor

Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name 28 mm geared stepper motor
Model 28BYJ48
Resistance 120 mΩ ± 10%/ phase

Current Per Phase

 100 mA/phase
Starting Frequency 800 pps. (AT 12 V DC)
Pull in Torque 500 gf.cm At 100 pps
Dielectric Strength 600 VAC 1 Second
Operating Temperature Range -0~+ 60 ℃
OEM & ODM SERVICE

AVAILABLE

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor

  • Round Type : DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type

  • I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor

Product Detail Presentation

28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor28BYJ48 100Ω 12V DC Metal Geared Stepper Motor Chinese Wholesale Supply Low Noise Permanent Magnet Stepper Motor
