18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
Specifications
Brand Name :
VIC-TECH
Model Number :
SM15-019
Certification :
RoHS
Place of Origin :
China
MOQ :
1 Unit
Price :
$3.2-$5/unit
Payment Terms :
MoneyGram, T/T, Western Union, T/T
Supply Ability :
1000000units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle :
18 °
Voltage :
5 V
Resistance :
15 Ω
Phase :
2 phases
Type :
Permanent Magnet
Description

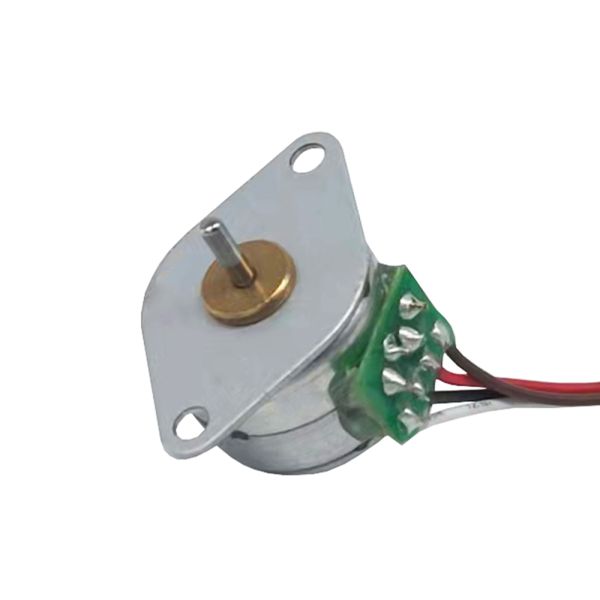

18 degree step angle 5v voltage 15mm diameter Pm permanent magnet stepper motor

A stepper motor with a diameter of 15mm and a step angle of 18 degrees. Each part is made of precision molds. Therefore, compared with similar products, this product has the advantages of stable rotation, small positioning torque and high efficiency.
All metal parts such as the motor casing are treated with environmentally friendly electroplating. Exquisite appearance, can be used in relatively harsh environment.

18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot

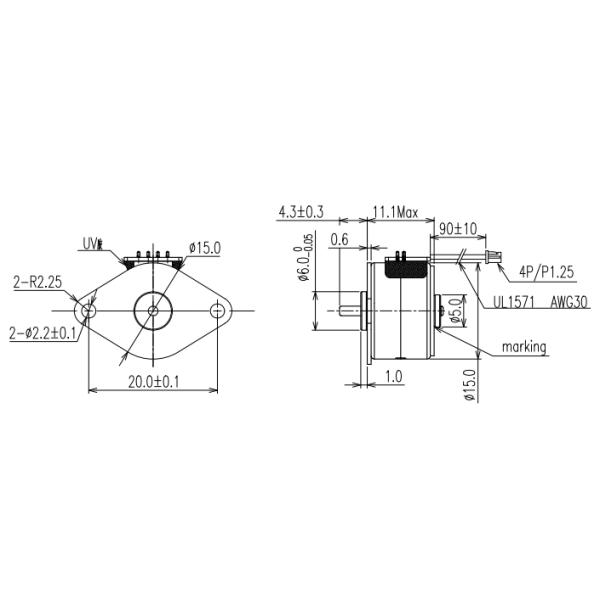

Mechanical Dimension:MM

18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot

Technical Features

Precision medical equipment, automatic door locks and other fields

Motor input part icon for the light, but can according to the customer demand can be changed to FPC cable, PCB and other forms

At the same time we can complete the corresponding drive system to meet customer needs!

Our team has more than 10 years experience in the design, development and production of micro motors, so we can develop and design the products according to the special needs of customers!

Customer needs is the direction of our efforts, please feel free to contact!

Typical Applications

  • Medical instruments

  • Precision instrument

  • Robot

  • Factory automation

  • Game machine

  • ATM equipment

  • Security equipment

Specifications

Product Name 15 mm permanent magnet stepper motor
Model SM15-019
Rated Voltage 5 V
Coil Resistance 15 Ω ± 7%
No. Of phase 2 Phases
Step Angle 18 degree
Max. Starting Frequency 700 PPS min. (AT 5 V DC)
Max. Slewing Frequency 900 PPS min. (AT 5 V DC)
Weight AVOUT 10 g


Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot

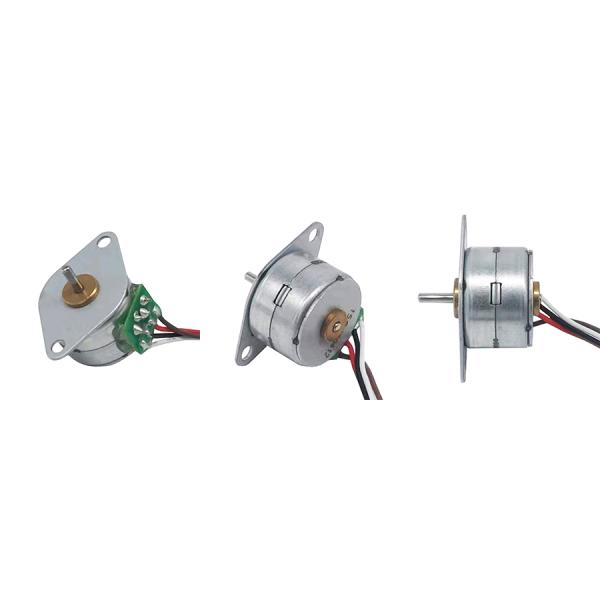

Product Detail Presentation

18 Degree Step Angle Pm Stepper Motor 5v Voltage 15mm Diameter for Medical instruments、Precision instrument、Robot
