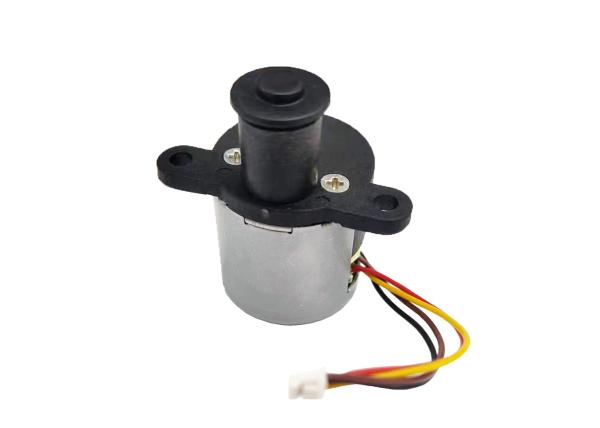

High Quality stepper motor valve 25PM linear motor valve for precise position control such as valves

25BYJ412-9L stepping motor is mainly used in printers, valves, fluid control, position control and other fields. The motor has the characteristics of small size, high precision and high strength.

The stepping motor has a built-in reduction gear box to achieve a reduction ratio of 1:10 and increase the torque. Finally, an output ejector rod with a stop-stop structure is adopted, so that the plunger can move back and forth without rotating. normal thrust
Up to 10kg.

At the same time, the external wiring part can choose various types and lengths of connecting wires, or FPC FFC according to customer requirements. The shape and outlet angle of the mounting plate can be adjusted according to customer needs!

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

Mechanical Dimension:MM

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

Torque Curve For Reference

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
