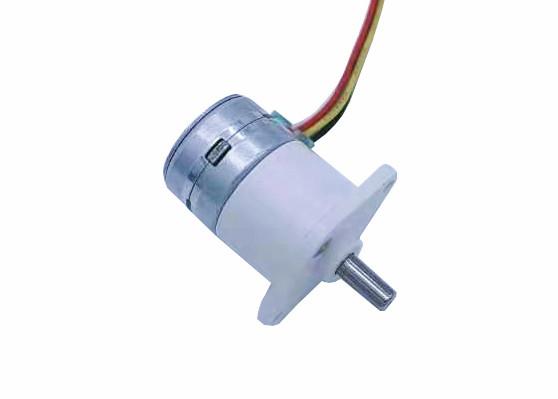

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
Specifications
Brand Name :
VIC-TECH
Model Number :
SM15-
Certification :
ROHS
Place of Origin :
China
MOQ :
1Unit
Price :
$4~7/unit
Payment Terms :
MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :
10000Units/month
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Type :
Gear Motor
Construction :
Permanent Magnet
Continuous current(a) :
customized
Voltage(v) :
5V
No. of phases :
2 phases
Description

Permanent Magnet Type 2 phase 4 wires Geared Stepper Motor 15mm Customized Current SM15-

SM15-MG is the use of diameter 15mm micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.


Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements.

Precise control of the rotating position of the field.


1:5 1:3 1:20 1:10 1:380 1:30 1:50 1:63 1:150 1:298 and so on, the customer can according to different use torque speed requirements to match the speed ratio, at the same time.


Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.

Our products can be customized, if you are interested, you can write to me.

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

Mechanical Dimension:MM

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

Technical Features

This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 15 mm geared stepper motor
MODEL SM15-
RESISTENCE 15Ω±7%
OPERATING TEMPERATURE RANGE -0~+55 ℃
OEM & ODM SERVICE

AVAILABLE

Motor Parameters
Rated Voltage 5.0 V DC 5.0 V DC 3.0 V DC
Phase 2 Phase 2 Phase 2 Phase
Exciting Method 2-2 Phase exciting/2-2 2-2 Phase exciting/2-2 2-2 Phase exciting/2-2
Step Angle 18° 18° 18°
Rotation CW/CCW CW/CCW CW/CCW
Resistance 31.0Ω±7% 8.3Ω±7% 15Ω±7%
Inductance 11.0mH(Ref) 11.0mH(Ref) 5.0mH(Ref)
Max. Starting Pulse Rate 800PPS Min 1300PPS Min 700PPS Min
Max. Slewing Pulse Rate 900PPS Min 1800PPS Min 900PPS Min
Holding Torque 35gf-cm Min. 35gf-cm Min. 30gf-cm Min.
Dielectric Strength 3mA Max. 3mA Max. 3mA Max.
Insulance Resistance 100MΩ (Min.) 100MΩ (Min.) 100MΩ (Min.)
Rotor Inertia 0.05gf-cm2 (Ref) 0.05gf-cm2 (Ref) 0.05gf-cm2 (Ref)
Insulation Class Class F Class F Class F
Operation Conditions -10℃～70 , ORDINARY HUMIDITY/ ℃ ,
15～80%RH(NO CONDENSATION OF MOISTURE
Storage Conditions 40℃～70 , ORDINARY HUMIDITY/ ℃
10～90%RH(NO CONDENSATION OF MOISTURE
With Gear Box (Typical Gear Ratio)
Drive
PPS		 Out shaft speed (rpm) Out Torque (g.cm)
1:10 1:20 1:50 1:100 1:298 1:380 1:10 1:20 1:50 1:100 1:298 1:380
200 60.00 30.00 12.00 6.00 2.01 1.58 160 320 800 1440 2880 3200
400 120.00 60.00 24.00 12.00 4.03 3.16 120 240 600 1080 2160 2400
600 180.00 90.00 36.00 18.00 6.04 4.74 80 160 400 720 1440 1600
800 240.00 120.00 48.00 24.00 8.05 6.32 50 100 250 450 900 1000

Torque Curve For Reference

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

  • Round Type : DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type

  • I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm

Product Detail Presentation

Permanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mmPermanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mmPermanent Magnet Type Geared Stepper Motor 2 Phase 4 Wires 15mm
