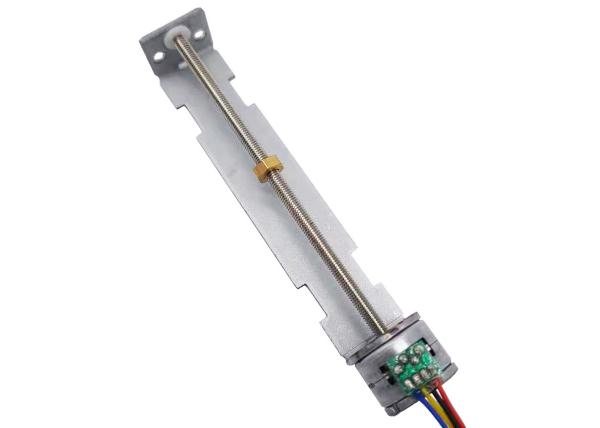

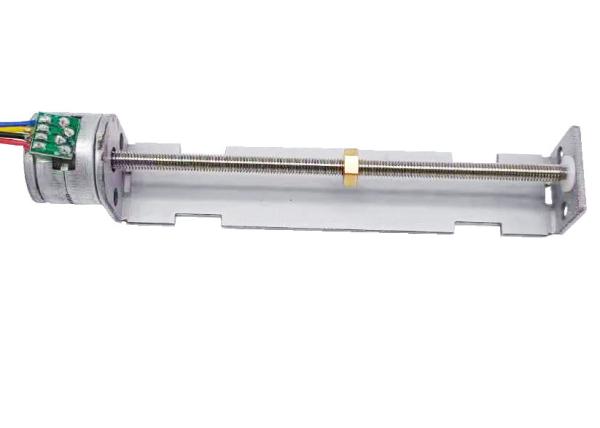

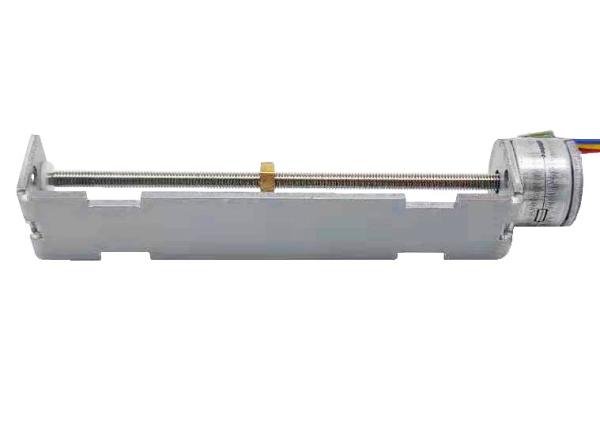

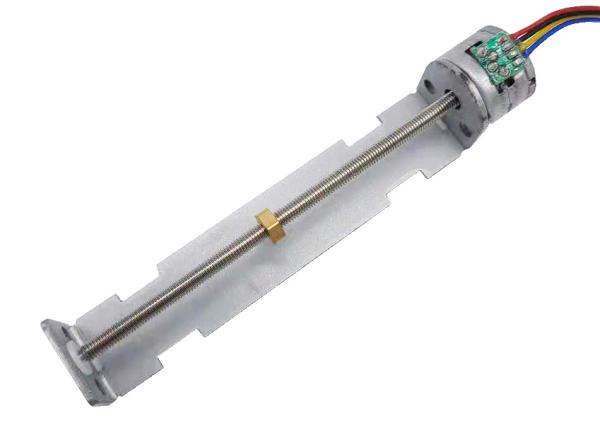

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks
Specifications
Brand Name :
VIC-TECH
Model Number :
SM15-77L-T
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 unit
Price :
$7-$15/unit
Payment Terms :
Western Union, MoneyGram，Credit Card
Supply Ability :
1000000 units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Type :
Permanent Magnet
Step Angle :
18°/step
Phase :
2 phases
Current / Phase :
600 mA/Phase
Rated Voltage :
9 V DC
Coil Resistance :
15±10% ohm/PHASE(20℃)
Drive Mode :
Bipolar Drive
Pull-out Thrust :
More Than 230 g At 500 pps
Description

SM15-77L-T Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle Pm Stepper Motor

SM15-77L-T is a precision screw motor. The pitch between the output shaft and the screw is 0.4mm. The rotation of the screw and the screw supports the screw to generate thrust.
The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
The actuator adopts the subdivision drive mode to meet the requirements.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

Mechanical Dimension:MM

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

Parameters:

Model number SM15-77L-T

Current Per Phase

600 mA/Phase
Coil resistance

15 ±10%Ohm/phase(20℃)
Step angle 18°/step
Rated voltage 9V DC
Phase number 2 phases

Excitation Method

1-2 Phases Excitation

Drive Mode

Bipolar Drive

Pull-Out Thrust

More Than 230g AT 500 PPS

Max Response Frequency

More Than 1300 PPS

Max Staring Frequency

More Than 900 PPS

Insulation Class

CLASS E FOR COILS

Insulation Strength

100 V AC FOR ONE SECOND

Insulation Resistance

50 mΩ (DC 500 V)

Operating Temperature Range

-0~+55℃

Motor surface temperature

80℃ or less

Main Application

1. Camear

2. Optical instruments

3. Lenses

4. Precision medical devices

5. Automatic door locks

Product Detail Presentation

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

9 V DC Permanent Magnet Slider Screw Stepper Motor 18 Degree Step Angle for Precision medical devices、door locks

T
