Specifications
Brand Name :
VIC-TECH
Model Number :
SM25-048S-15G
Certification :
ROHS
Place of Origin :
China
MOQ :
1Unit
Price :
$5~8/unit
Payment Terms :
MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :
10000 PCS 45days
Delivery Time :
10~30 days after the sample is paid
Packaging Details :
Standard export package, or can be customized
Type :
Gear Motor
Torque :
High Torque
Construction :
Permanent Magnet
Continuous current(a) :
customized
Voltage(v) :
12V
Output shaft :
customizable
Reduction ratio :
customizable1:10~1:100
Directions :
CW/CCW
Step Angle :
7.5 degree
Description

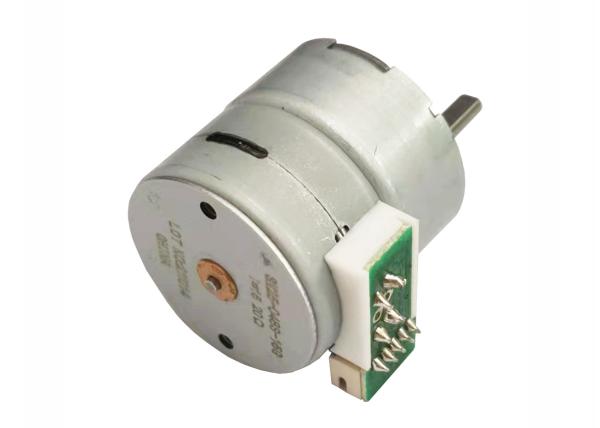

High torque 25mm 2 phase bipolar stepper motor 12 V DC stepper motor

These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-30G,This motor stepper is a dia 25pm type stepper motor stepper, The gear reduction ratio can be customized to 1:10 1:30 1:50 1:100 standard,fixing a gear box.so that the torque can higher for mounting we have two type standard.

High Torque 2 Phase Bipolar Stepper Motor 25mm 12 V DC Stepper Motor

Mechanical Dimension:MM

High Torque 2 Phase Bipolar Stepper Motor 25mm 12 V DC Stepper Motor

Technical Features

These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-303 ,This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher

for mounting we have two type standard.

NOTED:

Transmission Shaft can be made according to customer's requirement.

APPLICATIONS:

Home Applience Air-conditioning

Refrigerator Intelligent Sanitary

Automatic Door Lock CCTV Monitor

Electronic Instrument

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

PRODUCT NAME 25mm geared stepper motor
MODEL SM25-048S-15G 20Ω
PUII-IN RATE 700 PPS
HOLDING TORQUE 2000gf.cm
RESISTENCE 20Ω±10%
Winding temperature at 500PPS ≤65K
OEM & ODM SERVICE

AVAILABLE

Torque Curve For Reference

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

High Torque 2 Phase Bipolar Stepper Motor 25mm 12 V DC Stepper Motor

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

High Torque 2 Phase Bipolar Stepper Motor 25mm 12 V DC Stepper Motor

  • Round Type : DIA3mm. 4mm. 5mm

  • D-cut Type: DIA3-D2.5 DIA4-D3 etc

  • Screw Type: M3 M4 M5 Serial

  • Trape Type

  • I-cut Type: DIA3-I2 DIA4-I3

  • Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

High Torque 2 Phase Bipolar Stepper Motor 25mm 12 V DC Stepper Motor
