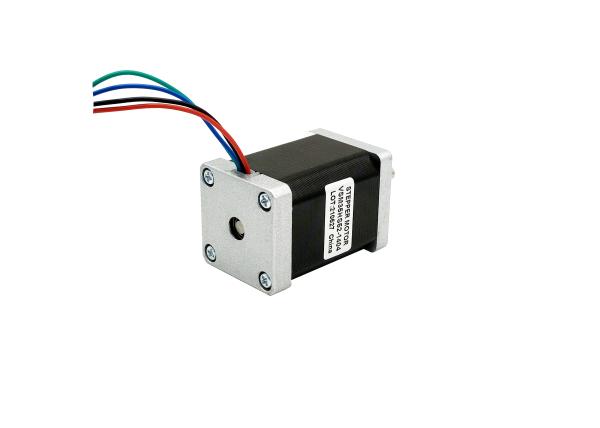

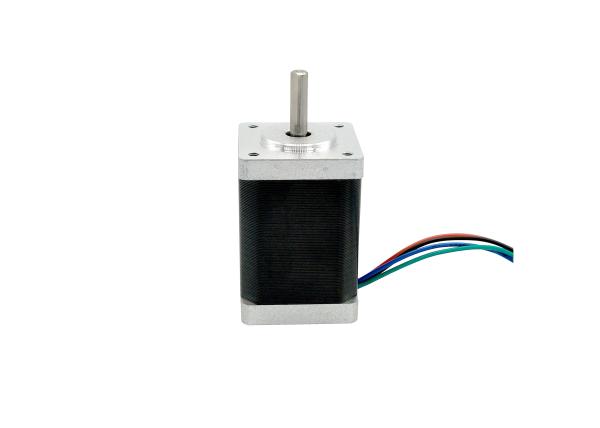

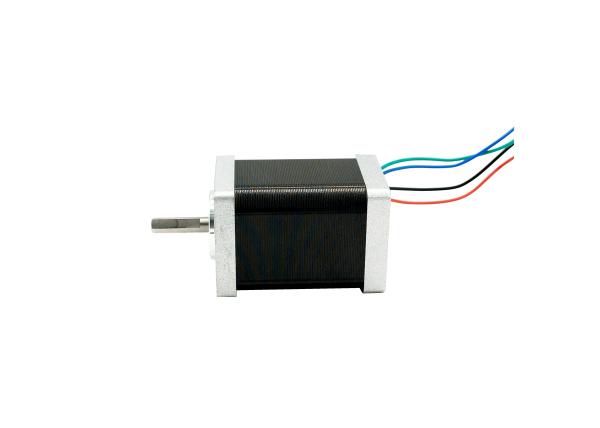

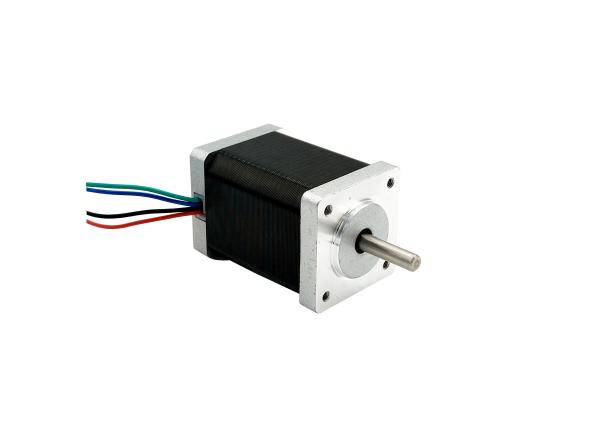

NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
Specifications
Brand Name :
VIC-TECH
Model Number :
VSM35HS52-1404
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Unit
Price :
$7.5- $12.5USD/ Units
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000Units per month
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Step Angle(degrees) :
1.8°
Motor diameter :
35mm
Phase :
2
Rated voltage :
3.92V
Current / Phase :
1.4A
Phase Resistance :
2.8Ω±10%(20℃）
Phase lnductance :
4mH±20%（1kHz 1V RMS）
Holding Torque :
40N.cm
Insulation Class :
B(130°）80K MAX
Weight :
0.3kg
Description

NEMA14 diameter 35mm 1.8 degree step angle high precision 2-phase hybrid stepping motor

The stepping motor is a mechanical structure, which does not require changes in brushes or Hall sensors, which increases the life of the motor. The life of a stepper motor is usually determined by the life of the bearing.
Optimized design of induction cooker, increase torque, reduce temperature rise, and make the motor run smoothly
The angular displacement of the stepping motor can be precisely controlled by the number of electrical pulses, and the angular accuracy can be controlled within ±0.09° without any feedback device.
Our products can be customized, if you are interested, you can write to me.

Mechanical Dimension:MM

NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor

Typical Applications

  • 3D Printer
  • Monitoring Equipment
  • Medical Machinery
  • Vending Machine
  • Engineering Vehicle
  • CNC Engraving Machine
  • ATM Machine

Specifications

Motor diameter 35mm

Number of Phase

 2 phase
Step angle 1.8 degree
Rated voltage 3.92V
Rated current/phase 1.4A(Peak Value)
Resistance/phase 2.8Ω±10%(20℃)

Phase lnductance

 4mH±20%(1kHz 1V RMS)

Holding Torque

40N.cm

Insulation Class

B(130°)80K MAX

Weight

0.3kg

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.

Product Detail Presentation

NEMA14 35mm 1.8 Degree electric stepper motors High Precision 2-Phase Hybrid Stepping Motor
