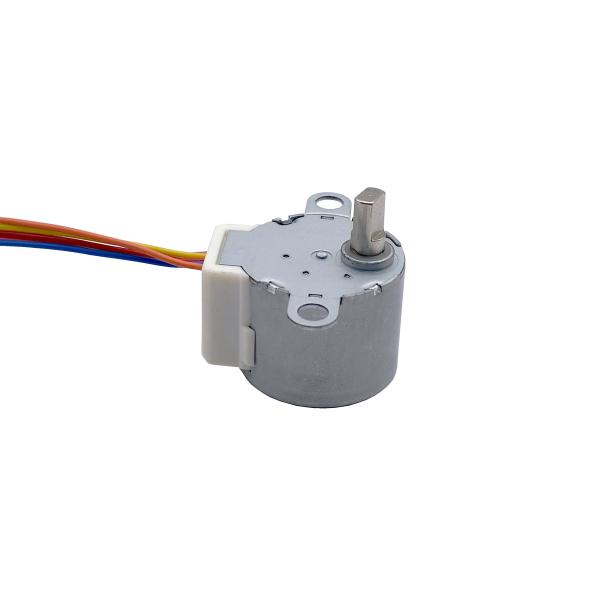

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
Specifications
Brand Name :
VIV-TECH
Model Number :
24BYJ48
Certification :
RoHS
Place of Origin :
China
MOQ :
1 Unit
Price :
$0.68-3.0/unit
Payment Terms :
MoneyGram, T/T, Western Union, T/T
Supply Ability :
1000000units/year
Delivery Time :
15-30 work days
Packaging Details :
Standard export package, or can be customized
Step Angle :
11.25°/32
Voltage :
12V
Resistance :
70Ω
Gear Ratio :
1:32
Type :
Permanent Magnet
Pull-in torque :
≥58.8mN.m
Custom torque  :
≥29mN.m
No-load pull-in frequency :
≥500HZ
No-load pull frequency :
≥800HZ
Insulation resistance DC.500v :
≥10
Description

12V voltage 24mm diameter 11.25 degree step angle permanent magnet stepper motor

This product is mainly used for sanitary ware, thermostatic valves, hot water faucets, automatic adjustment of water temperature and water flow, etc.
At the same time, other areas that require precise control can be achieved. Due to the realization of open-loop control, low-cost position control is realized.
It is applied to the precise control of gas valves, water purifier valves, instruments and other automatic control fields.
At the same time, the external wiring part can adopt various types and lengths of connecting wires, or FPC FFC according to customer requirements.
The output part can be used in a variety of ways, such as gears, pulleys, V-grooves, and turbo screws.
The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs!
Our products can be customized, if you can write to me.

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor

Mechanical Dimension:MM

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor

Typical Applications

  • Smart Toilet
  • Smart kitchen
  • Air Conditioning
  • Refrigerator
  • Vending Machine
  • Entertainment Equipment

Specifications

Motor diameter

24mm

Rated voltage

12V

Resistance (25℃) Ω phase ±8%

70Ω

Step angle

11.25°/32

Reduction ratio

1:32

Pull-in torque

≥58.8mN.m

Custom torque

≥29mN.m

No-load pull-in frequency

≥500HZ

No-load pull frequency

≥800HZ

Insulation resistance DC.500v

≥10

Insulation dielectric strength

No breakdown or flying fox
noise

≤45dB(A)

Competitive Advantage

  • High quality and the best price.
  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Product Detail Presentation

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

12V Voltage 24mm Diameter 11.25 Degree Step Angle Permanent Magnet Stepper Motor
