Specifications
Brand Name :
VIC-TECH
Model Number :
SM36-021L
Certification :
RoHS, ISO9001
Place of Origin :
China
MOQ :
1Unit
Price :
$7~$30/Unit
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
100000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Standard export package in corrugated carton (Mass production).
Resistance per phase :
33Ω±10%
Phase :
2 phases
Type :
Linear stepper motor
Step angle :
18°
Rated Voltage :
5V DC
Stroke :
13 mm
Dimensions :
15mm diameter
Step travel :
0.025mm
Description

5V 18° step angle high thrust 15mm diameter captive linear stepper motor

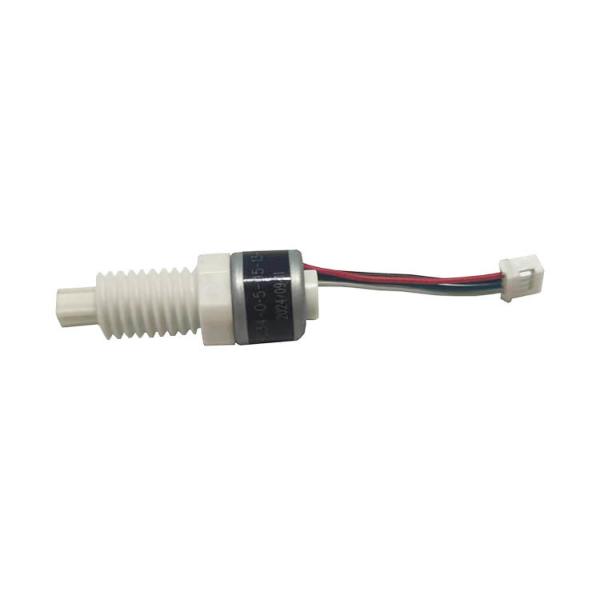

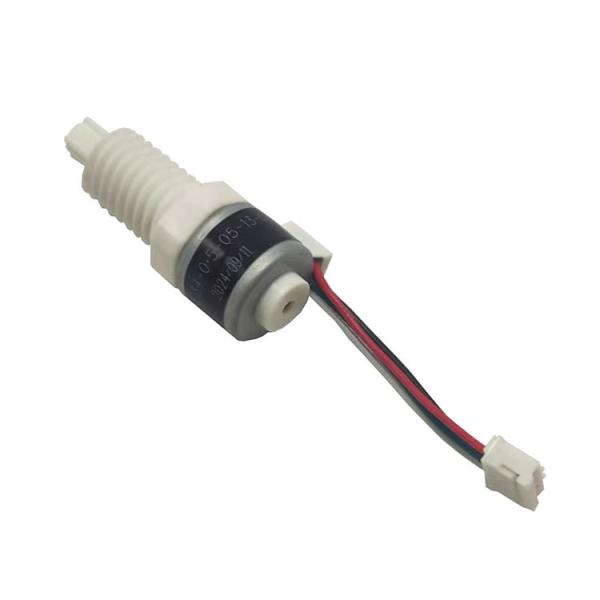

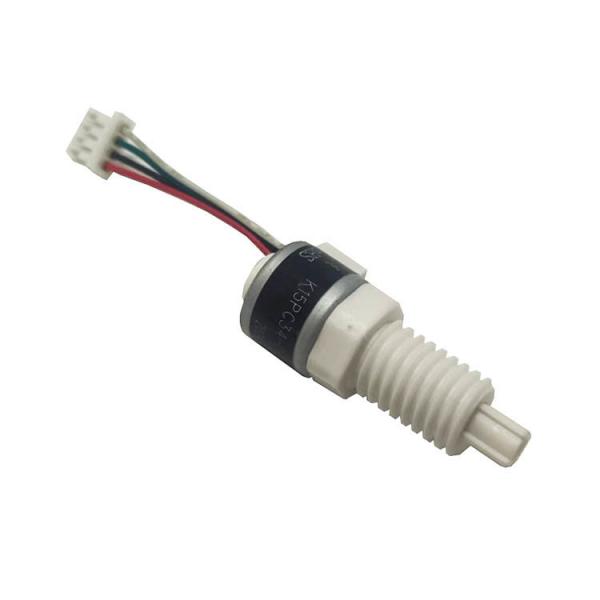

This is a 15mm diameter linear stepper motor, designed for high precision linear movement.

The travel distance/stroke of the motor is about 13mm.

It’s a regular 2 phase bipolar stepper motor with 4 wires.
You can run this motor with a regular stepper motor driver.

The screw lead is 0.5mm, and step length is 0.025mm, which means whenever the motor takes one step, it travels 0.025mm. It’s very critical for high precision control.

If you want to customized parameters such as coil resistance, cable length and so on, please feel free to contact us.

Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

Design Layout (Unit:mm)

5V 18° step angle high thrust 15mm diameter captive linear stepper motor

Parameters:

Model No. K15PC34-0.5-05-13-001
Motor type Linear stepper motor
Power 1.6 W
Phase current 160 mA/phase
Phase resistance 33 Ω/phase
Phase inductance 8.7mH/phase
Step angle 18°
Screw lead 0.5 mm
Step length 0.025mm/step
Travel distance About 13mm

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

5V 18° step angle high thrust 15mm diameter captive linear stepper motor

5V 18° step angle high thrust 15mm diameter captive linear stepper motor
