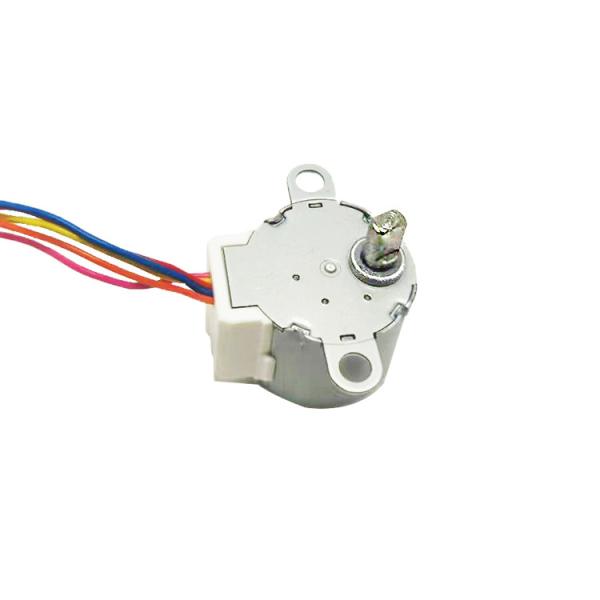

24mm 24BYJ48 Unipolar 4 phases86.4 ratio geared reducer stepping motor

This is a 24mm diameter permanent magnet stepper motor with a gearbox with a gear ratio of 86.4:1.
This is a 4-phase 5-wire unipolar motor.
The red cable is the common wire in the middle of each phase.
The operating ambient temperature is 105℃, insulation grade B
The outlet box is made of PBT material, all-metal gears
The whole machine must meet the requirements of the company's "Environmental Protection Material Management Regulations"
This motor is low-priced and reliable in quality, and is widely used in home appliance industries such as air conditioners, smart home systems, and smart toilets.
In addition, we also provide customized services for gear ratios, coil resistance, number of phases, and connector types.
If you need, you can contact me at any time.

Parameter:

Customization options:

Model No.: 24BYJ48

Step angle:(1-2phase driving) 5.625°/64; (2-2 phase driving) 11.25°/step

Gear ratio: 16:1 / 25:1 / 32:1 / 48.8:1 / 64:1 / 85:1

Customizable items:

Voltage:5~24V; gear ratio, gear material, output shaft, motor’s cap design customizable

Design drawing(Unit:mm)

Product display:

Technical Features

Application Highlights

HVAC/R Valve Actuation Winding possibilities – Bipolar

Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor

Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Shaft Type

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type : DIA3mm. 4mm. 5mm

• D-cut Type: DIA3-D2.5 DIA4-D3 etc

• Screw Type: M3 M4 M5 Serial

• Trape Type

• I-cut Type: DIA3-I2 DIA4-I3

• Other Type: Shaft with a hole etc

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.
