High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
Specifications
Brand Name :
VIC-TECH
Model Number :
VSM08133
Certification :
RoHS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1Unit
Price :
$2~$5/Unit
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000 Units/year
Delivery Time :
15-30 work days
Packaging Details :
Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Step Angle(degrees): :
18 degree
No.of Phase :
2 phase
Voltage :
3.3V DC
Resistance :
40Ω±7%
Weight :
6g
Type :
Permanent Magnet
Description

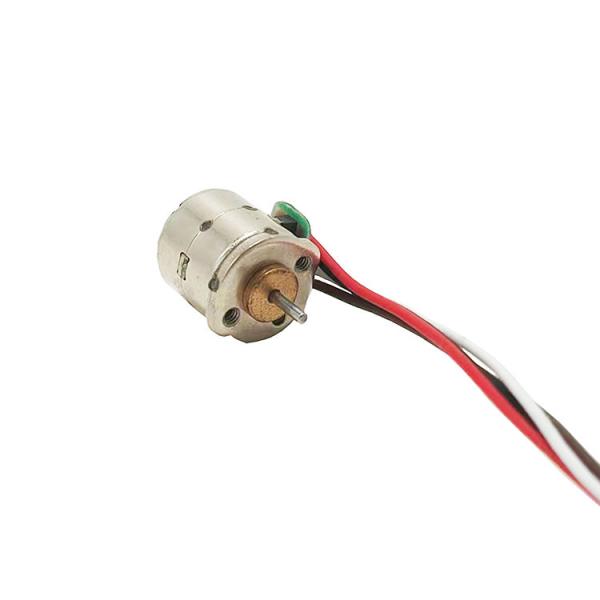

High precision 8mm 2 phase 4 wire 18 degree micro stepper motor OEM/ODM available

VSM08133 is a precision micro stepper motor,
Outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, shaft length can be changed as needed, and can be equipped with corresponding output devices such as gears, pulleys, worms, screws, etc.
The basic step angle of the motor is 18 degrees, that is, the motor runs 20 steps per week.
Due to the small size, high precision and convenient control of this micro stepper motor, it is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
The input part of the motor is FPC, but it can be changed to connecting wire pins, PCB and other forms according to customer needs. The mounting bracket can be changed according to customer requirements. At the same time, it can be equipped with a corresponding drive system to meet customer needs!
Our team has 20 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Please feel free to contact us!

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

Mechanical Dimension:MM

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

Typical Applications

  • Intelligent Security Products

  • Camera Lenses

  • Door Locks

  • Wearable device

Specifications

Product Name 8mm micro stepper motor
Model VSM08133
Rated Voltage 3.3 V DC
Current Per Phase 100 mA /phase
Coil Resistance 40 Ω±7%
No. Of phase 2 phases
Step Angle 18 °
Excitation Method 2 Phase Excitation
Drive Mode Bipolar Drive
Pull-In Torque 0.8 gf.cm ,(AT 3.3V DC)
Pull-Out Torque 1.0 gf.cm ,(AT 3.3V DC)
Max. Response Frequency 1000 pps,(AT 900 PPS , 3.3V DC)
Max. Starting Frequency 1200 pps,(AT 900 PPS , 3.3V DC)
Insulation Class Class E for Coils
Insulation Strength 300 V AC for One Second
Insulation Resistance 1.0 MΩ (DC 100 V)
Operating Temperature Range -30~+70 ℃
Weight 10 g(Ref.)
OEM & ODM SERVICE AVAILABLE

Competitive Advantage

  • High quality and the best price.

  • Fast deliver,storage company and rich inventory

  • Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

Product Detail Presentation

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor

High precision 2 phase 4 wire 18 degree step angle 8mm micro stepper motor
