Product Description:

Hybrid Stepper Motor is a type of motor driver that combines the advantages of both stepper motors and servo motors. It is designed to provide high performance, accuracy, and reliability in a wide range of applications. Hybrid Stepper Motors feature high resistance (Ohms): 0.75 / 1 / 0.78 / 0.95, motor length (mm): 45 / 55 / 65 / 75, inductance (mH): 2.5 / 4.5 / 3.3 / 4.5, excellent insulation resistance of 100MΩ Min. @500Vdc, and low temperature rise of 80K Max. With their fast response, precise control, and high torque, Hybrid Stepper Motors are ideal for applications such as robotics, medical equipment, and factory automation. Buy Hybrid Motor Drivers online to get the best deals and quality products.

Features:

• Product Name: Hybrid Stepper Motor
• Insulation Resistance: 100MΩ Min. @500Vdc
• Resistance (Ohms): 0.75 / 1 / 0.78 / 0.95
• Ambient Temperature: -20℃ ~ +50℃
• Step Angle: 1.8°
• Current (A): 3/4

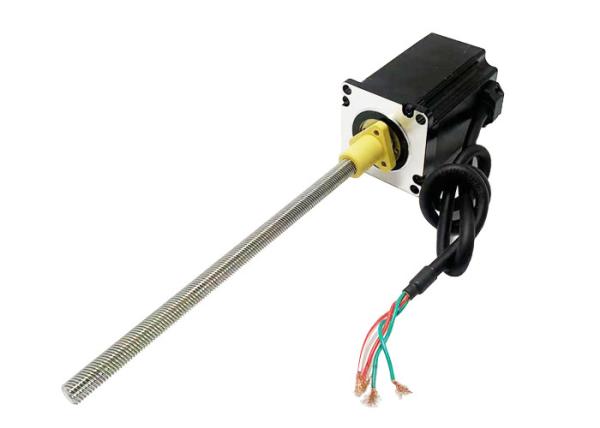

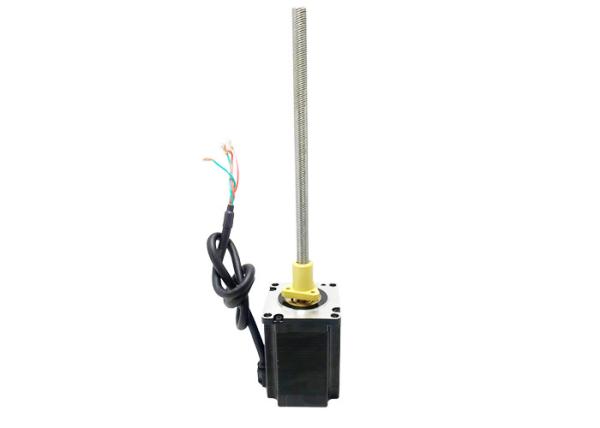

• Ball screw stepper motor
• Buy Hybrid Motor Drivers
• Hybrid Stepper Motors

Technical Parameters:

Applications:

Vic-Tech's Hybrid Stepper Motor, VSM57HSM, is a reliable, efficient, and cost-effective solution for many industrial applications. With its high performance and robust structure, VSM57HSM is designed to withstand harsh conditions and long lasting operation. The ball screw stepper motor offers a wide range of customizing hybrid motor solutions for customers, ranging from temperature rise of 80K Max. to dielectric strength of 1mA Max. @ 500V, 1KHz, 1 Sec. In addition, VSM57HSM is RoHS certified for safety and compliance, and comes in 4 motor lengths: 45mm, 55mm, 65mm, and 75mm, with resistance of 0.75 / 1 / 0.78 / 0.95 Ohms respectively.

VSM57HSM is available at an affordable price of $40 to $94 per unit, with a minimum order quantity of one unit. Samples are usually packed with paper boxes, and mass production products are packed with standard corrugated carton. Delivery time is 15-30 workdays, and payment terms include T/T, Paypal, and Credit card. Vic-Tech is able to provide up to 100000 pieces of Hybrid Stepper Motor monthly.

VSM57HSM is designed to perform reliably in a wide range of ambient temperatures, from -20℃ to +50℃. With its high quality and reliable performance, Vic-Tech VSM57HSM is the perfect choice for many industrial applications.

Customization:

Packing and Shipping:

Hybrid Stepper Motor products are carefully packaged and shipped to ensure that they arrive safely and in good condition.

The motors are shipped in a sturdy cardboard box, with internal foam protection, and have a weather-resistant coating. The box is labeled with the name of the product and the date of shipment.

The motors are shipped using a reliable carrier and are tracked until they have been delivered.
