Specifications
Brand Name :
V-motor
Model Number :
20BY45-67
Certification :
RoHS
Place of Origin :
China
MOQ :
1 pc
Price :
US$1.85~4
Payment Terms :
L/C, D/P
Supply Ability :
100000/month
Delivery Time :
3~15 days
Packaging Details :
with carton
Type :
Permanent Magnet stepper motor
Step angle(degrees) :
18°
Usage :
printer,Industral,security system
Frame size :
Dia.20MMXL19.1mm
Phase :
2
Voltage :
24V
Current / phase :
0.5A
weight :
20g
Description

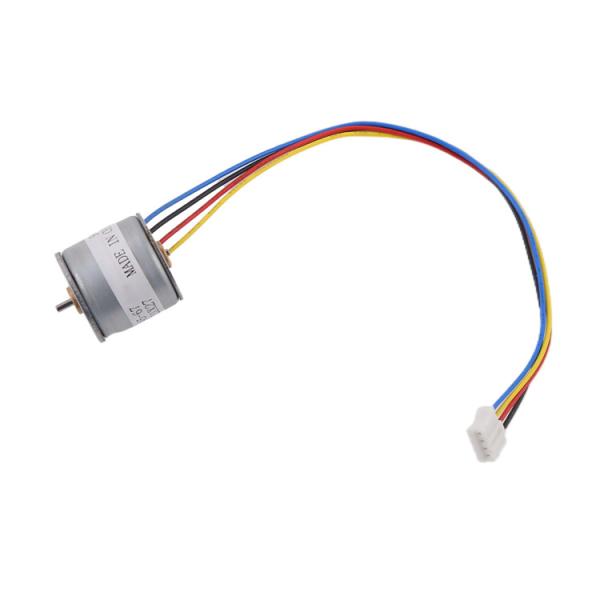

24v PM micro stepper Motor bipolar drive 20mm mini stepping motor with metal gear

China 24V Bipolar Stepper Motor 20mm 2 Phase With Metal Gear US.85~4

Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.

It is a mini stepper motor, diameter is 20mm,a torque of 60gf.cm and max speed can achieve 3000rpm.

Therefore, the product can be used where precise control of the position is required. Generally can be used in medical equipment, printers, automation equipment, robots, etc.

PM stepper motor parameters:

PRODUCT NAME 20 Micro stepper motor
MODEL 20BY45-67
RESISTANCE 200 Ω±10%
VOITAGE 24VDC
Step angle 18°±7%
Detent Torque ≤83g.cm
OEM & ODM SERVICE AVAILABLE

PM stepper motor outdrawing:

China 24V Bipolar Stepper Motor 20mm 2 Phase With Metal Gear US.85~4

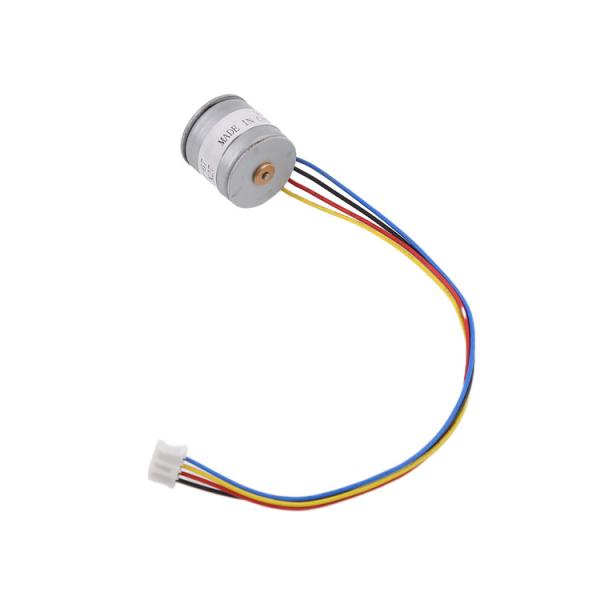

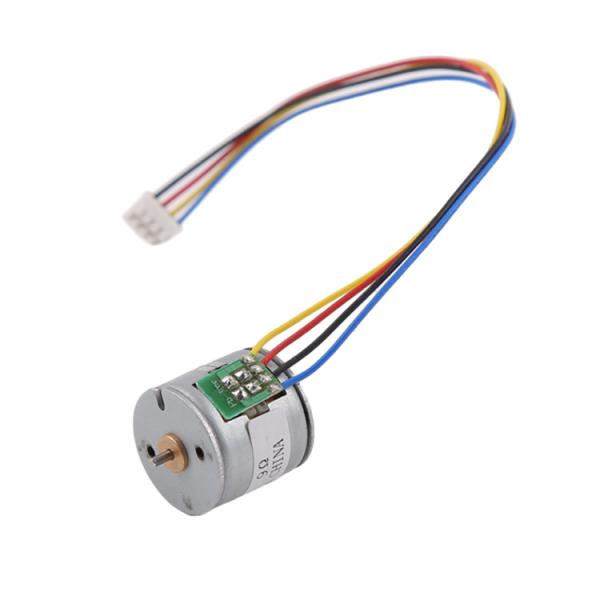

Product display:

China 24V Bipolar Stepper Motor 20mm 2 Phase With Metal Gear US.85~4

​This product is mainly used for printers, fax machines, photocopiers, camera devices, monitoring pan-tilts, etc.
The output part can use various methods such as gears, pulleys, and V-shaped groove wheels.
The shape of the mounting plate and the outlet can be adjusted according to customer needs!

Packing And Shipping Information

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country
