8mm Diameter Mini Gear Motor 5V Geared Stepper Motor And Metal Gearbox

18 degree step angle 8mm micro gearbox stepper motor with gearbox small stepper motor

VSM08-016-10G is a combination of 8MM diameter micro stepper motor and 8*10 precision metal gearbox, the reduction ratio can be customized according to customer needs.
The basic step angle of the motor is 18 degrees, that is, 20 steps per revolution. With the deceleration effect of the gearbox, the final angular resolution of the motor can reach 1.8~0.072 degrees, which can meet various needs and accurately control the rotation position of the venue.
The selectable transmission ratios are 1:5, 1:10,1:30 1:50, 1:60 ,1:100, 1:250. Customers can match the speed ratio according to different torque and speed requirements. Customers can set the stepping motor drive frequency according to their needs. A certain speed and torque can be achieved,
With the same gear reduction ratio, the speed and torque of the motor are different at different drive frequencies, and the drive can be set according to your needs.
The gear box of this product adopts the most advanced related parts processing equipment in the world, with high precision, high efficiency, low noise, and adopts reasonable and reliable technology, so that the product has better reliability.
The power input part of the motor and the standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on.
Part of the output of the motor can use round shaft, D shaft, screw shaft, etc., which can be customized according to customer installation requirements

SM08-10GF gearbox stepper main parameters:

SM10-816 gear stepper motor out drawing:

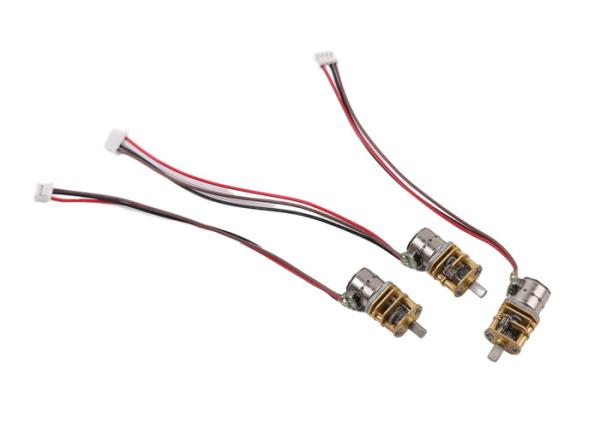

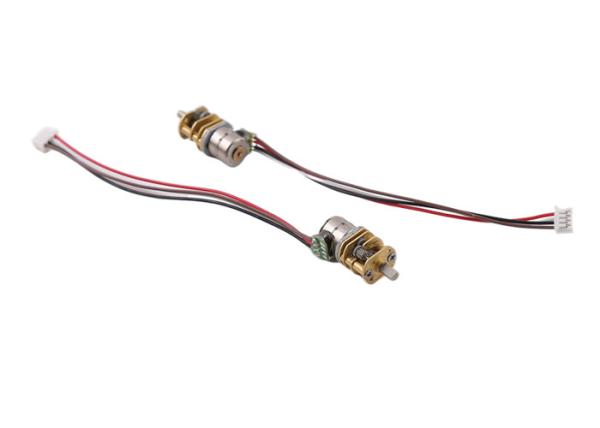

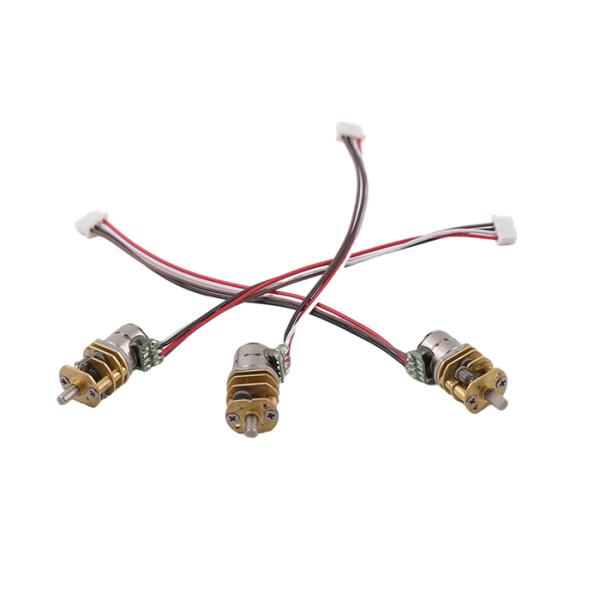

SM08-10GF gear stepper motor display:

SHAFT TYPES:

Out shaft standard as follows, also can customized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm
• D-cut Type: DIA3-D2.5 DIA4-D3 etc
• Screw Type: M3 M4 M5 Serial
• Trape Type
• I-cut Type: DIA3-I2 DIA4-I3
• Other Type: Shaft with a hole etc

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country
