High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
Specifications
Brand Name :
Vic-Tech
Model Number :
SM35-048L
Certification :
RoHS
Place of Origin :
China
MOQ :
1Unit
Price :
$5~$10/Unit
Payment Terms :
T/T, Paypal, Credit card
Supply Ability :
100000 pc/Month
Delivery Time :
10~20 days after the sample is paid
Packaging Details :
Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
Motor type :
Permanent magnet motor+gearbox
Motor diameter :
35 mm
Gearbox ratio :
30:1
Step angle :
7.5°/30
Phase number :
2 (bipolar)
Coil resistance :
30Ω/phase
Description

High precision 35mm diameter permanent geared reducer magnet stepper motor

Description:

This is a 35mm permanent magnet motor with a gearbox.

Motor’s output torque and speed is related to motor’s gear ratio.

The gear ratio for this current model is 30:1.

The motor is commonly used on medical equipment and electrical locks.

You are free to customize motor’s output shaft, lead wire types and connector type.

Lead time will be longer, it might cause extra custom fee if the motor is customized.

Motor Parameters:

Motor type PM motor + gearbox
Model No. SM35-048L
Diameter 35mm
Phase No. 2 phases
Step angle 7.5°/30
Gear ratio 30:1
Resistance 30
Current 400mA/phase

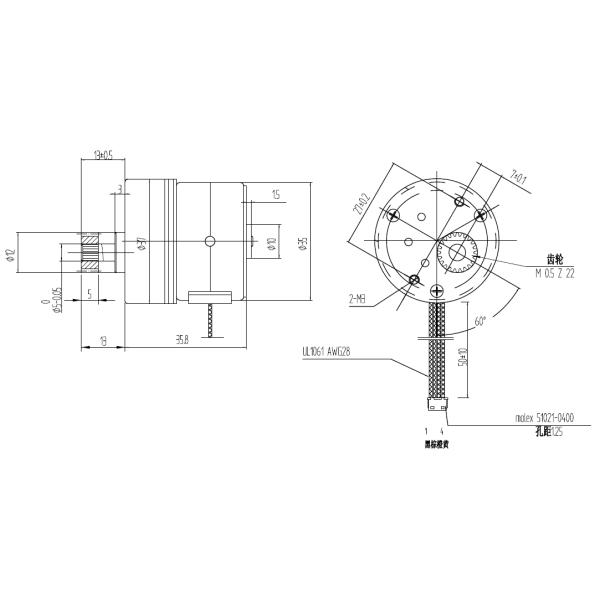

Design drawing:

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor

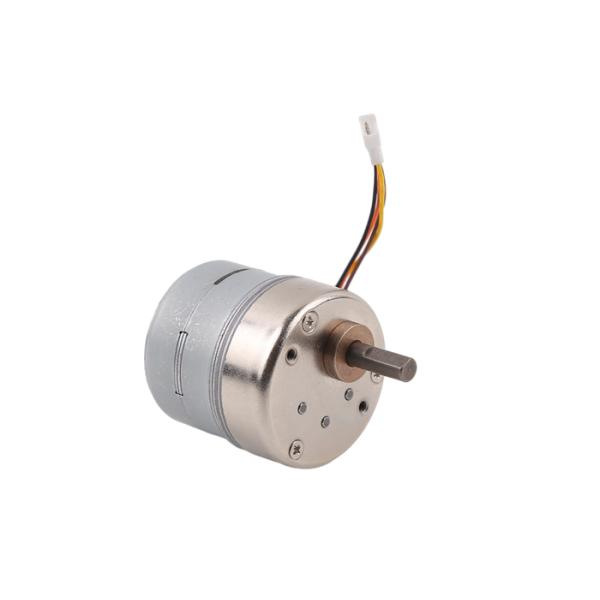

Product display:

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Stepper motors are widely used among all industries.

High Precision 35mm Diameter Permanent Geared Reducer Magnet Stepper Motor
