Specifications
Place of Origin :
China
Brand Name :
Cinhpump
Certification :
CE ROHS UL
Model Number :
PMA-15
MOQ :
30pcs
Price :
Negotiable
Packaging Details :
Carton+ white box+ plastic film
Delivery Time :
3 to 35days
Payment Terms :
T/T or L/C
Supply Ability :
5000pcs each day
application :
aquarium|medical|Dosing|industrial
feature :
low vibration|Low power|low noise
Material :
Aluminum
product name :
Miniature Air Pump
Pump Design :
Double diaphragm|duckbill valves
voltage :
12V
Description

Low Power Miniature Air Pump Stable High Performance micro Air Compressor 12v With Duckbill Valves ,

106 * 76 * 74mm

Quick Detail:

15L/m air flowrate

30kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

lifetime more than 20,000hours

size:106x76x74 mm

weight:0.62 kg

Outlet & Inlet Dia: 0.3" (7.6 mm)

Description:

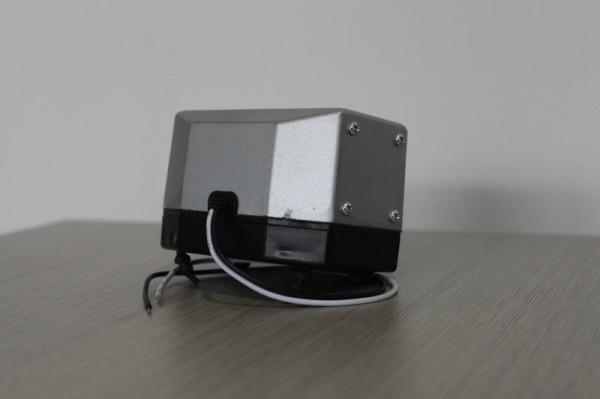

CINH Mini AC Miniature Air Pump PMA-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

  • Compact size
  • Steady air outputs with low noise
  • Very low vibration
  • Low power consumption
  • Economical

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 30SCFH(15Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 10W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

Net Weight: 0.62kgs

Performance Curve

Low Power Miniature Air Pump Stable High Performance micro Air Compressor

Low Power Miniature Air Pump Stable High Performance micro Air Compressor

Competitive Advantage:

long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC Miniature Air Pump
