Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier
Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier
Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier
Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier
Specifications
Place of Origin :
China
Brand Name :
Cinh or Neutral
Certification :
CE ROHS UL
Model Number :
QBF-15
MOQ :
30pcs
Price :
Negotiable
Packaging Details :
plastic film + white box + carton, one pc of QBF-15 air pump in one plastic film and white box, 30pcs white box in one carton,540pcs or 18cartons is 1cbm15120pcs or 504catons is one 20'GQ
Delivery Time :
3 to 35days
Payment Terms :
T/T or L/C
Supply Ability :
5000pcs each day
Color :
Slive
Air Output: :
30SCFH(15Lpm)
Application :
Humidifier
Pressure :
30PKA
Flowrate :
15L/M
Power Consumption :
10W
Description

Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier

Quick Detail:

Place of Origin: Zhejiang China (Mainland) Brand Name: Cinh or Blank Model Number: QBF-15
Theory: Electromagnetic Pump Structure: Diaphragm Air Pump Usage: Air Pump
Power: Electric Flowrate: 15L/m Fuel: Electric
Pressure: 30KPA Application: pressing air

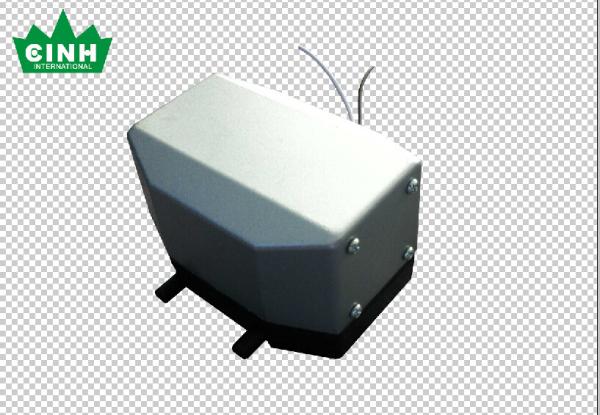

Electrical micro air pump

1.Brushless motor, super long lifetime, super quiet

2. 30kPa pressure, 15L/m air flowrate

3.Speed adjustable and controllable with square wave signal

4. lifetime more than 20,000hours continuously working day and night

6. size is 106x76x74mm and weight is 0.62kgs

7. Outlet & Inlet Dia: 7.6mm

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

balloon

medical

humidifier

blood pressure

gas monitor

dosing

cooling system

ink

water heater

boiler

boat

gas boiler

breast

fridge

pillow and mattress

beauty equipment

Specifications:

ITEM SPECIFICATION
Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 10W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)
Net Weight: 0.62kgs

Description:

This is electrical micro air pump, it has 15L/m air flowrate and 30kpa pressure, it can pump out fog strongly and

continuously, it has more than 20,000hours lifetime, it has aluminum box to prevent electromagnetic escaping,

low noise, double coils and double duckvalve structure, but others has only one coil.

Performance Curve

Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier

Electrical Micro Air Pump 112V AC Vacuum Pumps For Humidifier
